DP1ORF Straight Connector ORFS Female – Braided Hose And Spiral Hose

  • DCompanyDME
  • PProduct RangeHose Fitting
  • 1Fitting StructureStraight
  • ORThread TypesORFS
  • FConnection TypeFemale
  • DME&JDE Code: DP1ORF
  • Product Type: Hose Fitting
  • Hose Fitting Type: Insert
  • Thread Type: UNF
  • Structure: Straight
  • Connection Type: Female
Technical Data of DP1ORF
  • -04
  • -06
  • -08
  • -10
  • -12
  • -16
  • -20
  • -24

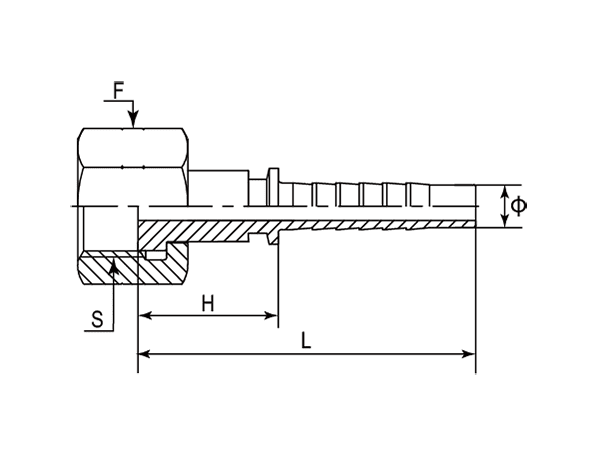

A drawing of DP1ORF straight hose fitting insert connector.

Note:

  1. Part number of this chart is for use with braided hoses.
  2. If use with spiral hoses, hose fitting series number is DP1ORF-XXXXR
- Part Number F (Thread) Ø H L S
- - UNF Inch mm mm mm
-01 DP1ORF-0404 9/16"-18 1/4" 21.00 49.50 19
-06 DP1ORF-0604 11/16"-16 1/4" 23.00 51.50 22
-06 DP1ORF-0606 11/16"-16 3/8" 23.00 53.50 22
-08 DP1ORF-0806 13/16"-16 3/8" 26.00 56.50 27
-08 DP1ORF-0808 13/16"-16 1/2" 26.50 59.50 27
-10 DP1ORF-1008 1"-14 1/2" 30.00 63.00 30
-10 DP1ORF-1010 1"-14 5/8" 30.00 66.00 30
-12 DP1ORF-1210 1-3/16"-12 5/8" 33.00 69.00 36
-12 DP1ORF-1212 1-3/16"-12 3/4" 33.50 74.50 36
-16 DP1ORF-1616 1-7/16"-12 1" 35.50 90.50 41
-20 DP1ORF-2020 1-11/16"-12 1-1/4" 36.00 97.00 50
-24 DP1ORF-2424 2"-12 1-1/2" 36.50 107.00 60
