DP9ORF 90° Elbow ORFS Female – Braided Hose And Spiral Hose

  • DCompanyDME
  • PProduct RangeHose Fitting
  • 9Fitting Structure90° Elbow
  • ORThread TypesORFS
  • FConnection TypeFemale
  • DME&JDE Code: DP9ORF
  • Product Type: hose fitting
  • Hose Fitting Type: Insert
  • Thread Type: UNF
  • Structure: 90° Elbow
  • Connection Type: Female
Technical Data of DP9ORF
  • -04
  • -06
  • -08
  • -10
  • -12
  • -16
  • -20
  • -24

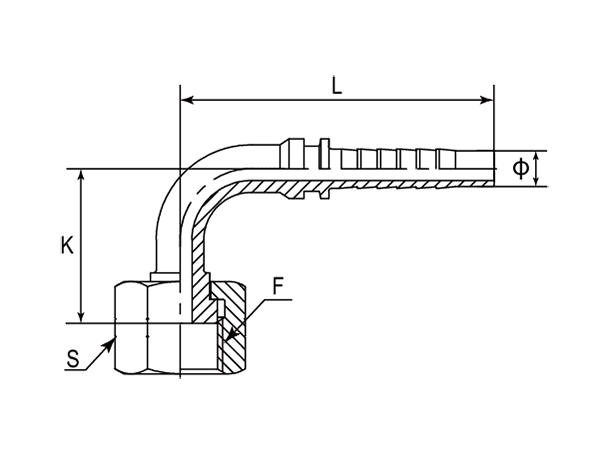

A drawing of DP9ORF 90° elbow hose fitting insert connector.

Note:

  1. For use with braided hoses.
  2. If use with spiral hoses, hose fitting series number is DP9ORF-XXXXR
- Part Number F (Thread) Ø L K S
- - UNF Inch mm mm mm
-01 DP9ORF-0404 9/16"-18 1/4" 52.00 26.00 19
-06 DP9ORF-0604 11/16"-16 1/4" 52.00 23.00 22
-06 DP9ORF-0606 11/16"-16 3/8" 64.00 32.00 22
-08 DP9ORF-0806 13/16"-16 3/8" 64.00 32.00 27
-08 DP9ORF-0808 13/16"-16 1/2" 74.00 40.00 27
-10 DP9ORF-1008 1"-14 1/2" 74.00 40.00 30
-10 DP9ORF-1010 1"-14 5/8" 85.00 45.00 30
-12 DP9ORF-1210 1-3/16"-12 5/8" 85.00 49.00 36
-12 DP9ORF-1212 1-3/16"-12 3/4" 99.00 51.00 36
-16 DP9ORF-1616 1-7/16"-12 1" 129.00 62.00 41
-20 DP9ORF-2020 1-11/16"-12 1-1/4" 153.00 73.00 50
-24 DP9ORF-2424 2"-12 1-1/2" 179.00 84.00 60
