DP9MFS-R13 90° Elbow Metric Female 24° Cone + O Ring Heavy Type – Interlock

  • DCompanyDME
  • PProduct RangeHose Fitting
  • 9Fitting Structure90° Elbow
  • MThread TypesMetric
  • FSConnection TypeFemale + O Ring Heavy Type
  • R13Hose FittingInterlock
  • DME&JDE Code: DP9MFS-R13
  • Product Type: hose fitting
  • Hose Fitting Type: Interlock
  • Thread Type: Metric 24° Cone + O Ring Heavy Type
  • Structure: 90° Elbow
  • Connection Type: Female
  • Sealing Method: O Rings
Technical Data of DP9MFS-R13
  • -36
  • -42
  • -52

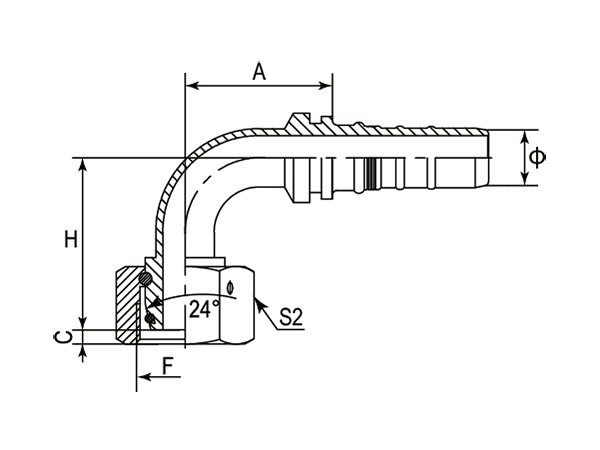

A drawing of DP9MFS-R13 interlock hose fitting.
- Part Number F (Thread) Ø A C H S2
- - Metric Inch mm mm mm mm
-01 DP9MFS-R13-3612 M36X2 20.00 74.50 3.50 67.80 46
-01 DP9MFS-R13-3616 M36X2 25.00 88.90 3.20 79.50 46
-42 DP9MFS-R13-4216 M42X2 25.00 88.90 3.90 80.50 50
-42 DP9MFS-R13-4220 M42X2 32.00 105.80 3.90 91.50 50
-52 DP9MFS-R13-5220 M52X2 32.00 105.80 4.50 86.50 60
-52 DP9MFS-R13-5224 M52X2 40.00 124.20 4.50 104.50 60
