Location: Home Fluid Connector Hose Fittings InterlockDP1JCF-R13

DP1JCF-R13 Straight Connector JIC Female 74° Cone – Interlock

DCompanyDME
PProduct RangeHose Fitting
1Fitting StructureStraight
JCThread TypesJIC UNF
FConnection TypeFemale + O Ring
R13Hose FittingInterlock

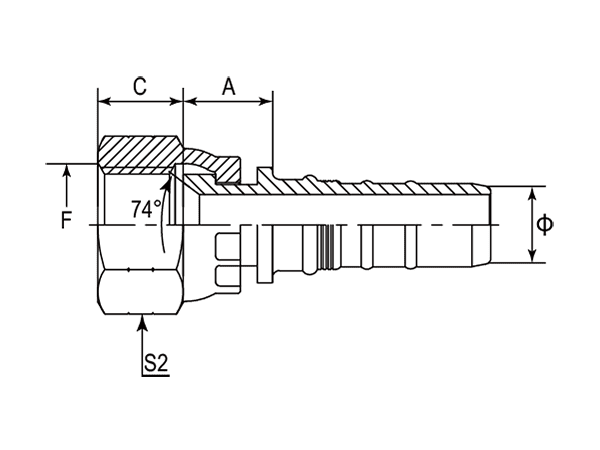

A drawing of DP1JCF-R13 hydraulic adaptor.

A 3D drawing of DP1JCF-R13 hydraulic adaptor.

A model drawing of DP1JCF-R13 hydraulic adaptor.

DME&JDE Code: DP1JCF-R13
Product Type: Hose Fitting
Hose Fitting Type: Interlock
Thread Type: JIC UNF 74° Cone
Structure: Straight
Connection Type: Female

Technical Data of DP1JCF-R13

-12
-16
-20
-24
-32

A drawing of DP1JCF-R13 interlock hose fitting.

-	Part Number	F (Thread)	Ø	A	C	S2
-	-	UNF	Inch	mm	mm	mm
-01	DP1JCF-R13-1212	1-1/16"-12	20.00	26.50	15.00	32
-16	DP1JCF-R13-1616	1-5/16"-12	25.00	29.40	16.00	41
-20	DP1JCF-R13-2020	1-5/8"-12	32.00	32.30	16.10	50
-24	DP1JCF-R13-2424	1-7/8"-12	40.00	35.20	20.00	60
-32	DP1JCF-R13-3232	2-1/2"-12	50.00	34.50	23.50	75
