Location: Home Fluid Connector Hose Fittings InterlockDP9FSCAT-R13

DP9FSCAT-R13 90° Elbow SAE Flange 9000 PSI – Interlock

DCompanyDME
PProduct RangeHose Fitting
9Fitting Structure90° Elbow
FSCATConnection TypeSAE Flange 9000 PSI
R13Hose FittingInterlock

A drawing of DP9FSCAT-R13 hydraulic adaptor.

A 3D drawing of DP9FSCAT-R13 hydraulic adaptor.

A model drawing of DP9FSCAT-R13 hydraulic adaptor.

DME&JDE Code: DP9FSCAT-R13
Product Type: hose fitting
Hose Fitting Type: Interlock
Structure: 90° Elbow
Connection Type: Flange 9000 PSI

Technical Data of DP9FSCAT-R13

-12
-16
-20
-24

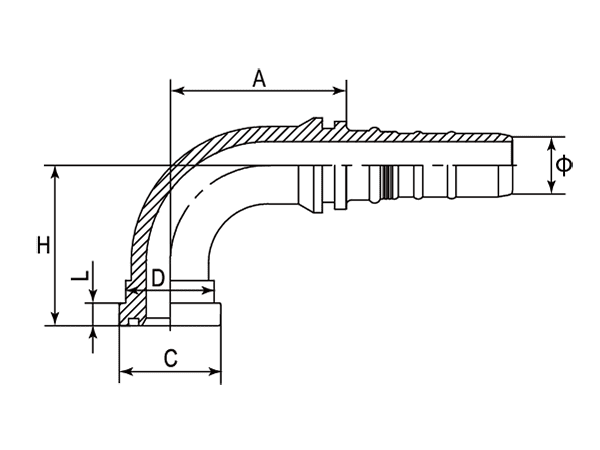

A drawing of DP9FSCAT-R13 interlock hose fitting.

-	Part Number	Flange Size	Ø	A	C	D	H	L
-	-	-	Inch	mm	mm	mm	mm	mm
-01	DP9FSCAT-R13-1212	3/4"	20.00	75.00	41.30	32.00	71.50	14.30
-16	DP9FSCAT-R13-1612	1"	20.00	75.00	47.60	38.00	73.00	14.30
-16	DP9FSCAT-R13-1616	1"	25.00	88.90	47.60	38.00	78.50	14.30
-20	DP9FSCAT-R13-2016	1-1/4"	25.00	88.90	54.00	43.00	79.50	14.30
-20	DP9FSCAT-R13-2020	1-1/4"	32.00	105.80	54.00	43.00	90.50	14.30
-24	DP9FSCAT-R13-2420	1-1/2"	32.00	105.80	63.50	51.00	91.50	14.30
-24	DP9FSCAT-R13-2424	1-1/2"	40.00	124.20	63.50	51.00	105.00	14.30
