DP9FL-R13 90° Elbow SAE Flange 3000 PSI – Interlock

  • DCompanyDME
  • PProduct RangeHose Fitting
  • 9Fitting Structure90° Elbow
  • FLConnection TypeSAE Flange 3000 PSI
  • R13Hose FittingInterlock
  • DME&JDE Code: DP9FL-R13
  • Product Type: hose fitting
  • Hose Fitting Type: Interlock
  • Structure: 90° Elbow
  • Connection Type: Flange 3000 PSI
Technical Data of DP9FL-R13
  • -12
  • -16
  • -20
  • -24
  • -32

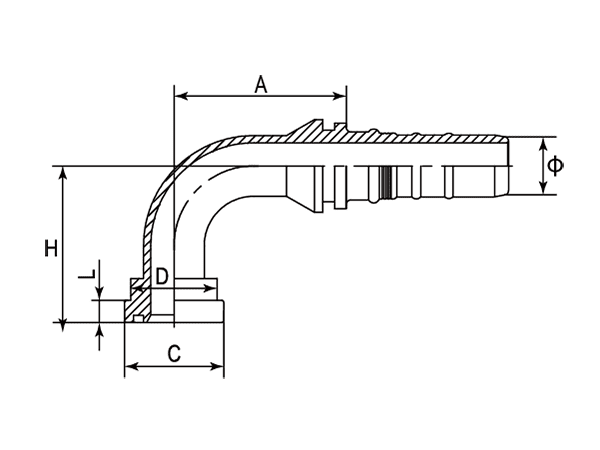

A drawing of DP9FL-R13 interlock hose fitting.
- Part Number Flange Size Ø A C D H L
- - - Inch mm mm mm mm mm
-01 DP9FL-R13-1212 3/4" 20.00 75.00 38.10 31.70 62.00 7.00
-16 DP9FL-R13-1612 1" 20.00 75.00 44.40 38.00 62.00 8.00
-16 DP9FL-R13-1616 1" 25.00 88.90 44.40 38.00 67.50 8.00
-20 DP9FL-R13-2016 1-1/4" 25.00 88.90 50.80 43.00 67.50 8.00
-20 DP9FL-R13-2020 1-1/4" 32.00 105.80 50.80 43.00 78.50 8.00
-24 DP9FL-R13-2420 1-1/2" 32.00 105.80 60.30 50.00 80.50 8.00
-24 DP9FL-R13-2424 1-1/2" 40.00 123.20 60.30 50.00 94.00 8.00
-32 DP9FL-R13-3224 2" 40.00 123.20 71.40 62.00 94.00 9.53
-32 DP9FL-R13-3232 2" 50.00 150.30 71.40 62.00 114.30 9.53
