Location: Home Fluid Connector Hose Fittings InterlockDP9BPF-R13

DP9BPF-R13 90° Elbow BSPP Female 60° Cone – Interlock

DCompanyDME
PProduct RangeHose Fitting
9Fitting Structure90° Elbow
BPThread TypesBSPP
FConnection TypeFemale
R13Hose FittingInterlock

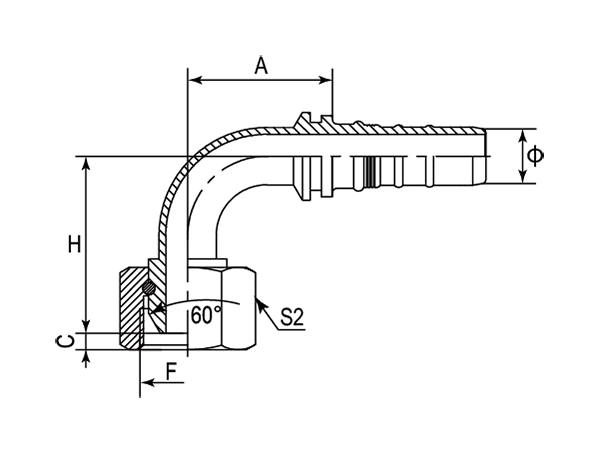

A drawing of DP9BPF-R13 hydraulic adaptor.

A 3D drawing of DP9BPF-R13 hydraulic adaptor.

A model drawing of DP9BPF-R13 hydraulic adaptor.

DME&JDE Code: DP9BPF-R13
Product Type: hose fitting
Hose Fitting Type: Interlock
Thread Type: BSPP 60° Cone
Structure: 90° Elbow
Connection Type: Female

Technical Data of DP9BPF-R13

-12
-16
-20
-24
-32

A drawing of DP9BPF-R13 interlock hose fitting.

-	Part Number	F (Thread)	Ø	A	C	H	S2
-	-	BSPP	Inch	mm	mm	mm	mm
-12	DP9BPF-R13-1212	3/4"-14	20.00	73.80	8.70	67.10	32
-16	DP9BPF-R13-1616	1"-11	25.00	91.90	10.50	72.00	41
-20	DP9BPF-R13-2020	1-1/4"-11	32.00	105.80	10.10	88.30	50
-24	DP9BPF-R13-2424	1-1/2"-11	40.00	124.20	12.50	103.00	55
-32	DP9BPF-R13-3232	2"-11	50.00	148.80	16.00	123.30	70
