Location: Home Fluid Connector Hose Fittings InterlockDP9JCF-R13

DP9JCF-R13 90° Elbow JIC Female 74° Cone – Interlock

DCompanyDME
PProduct RangeHose Fitting
9Fitting Structure90° Elbow
JCThread TypesJIC UNF
FConnection TypeFemale
R13Hose FittingInterlock

A drawing of DP9JCF-R13 hydraulic adaptor.

A 3D drawing of DP9JCF-R13 hydraulic adaptor.

A model drawing of DP9JCF-R13 hydraulic adaptor.

DME&JDE Code: DP9JCF-R13
Product Type: hose fitting
Hose Fitting Type: Interlock
Thread Type: JIC UNF74° Cone
Structure: 90° Elbow
Connection Type: Female

Technical Data of DP9JCF-R13

-12
-16
-20
-24
-32

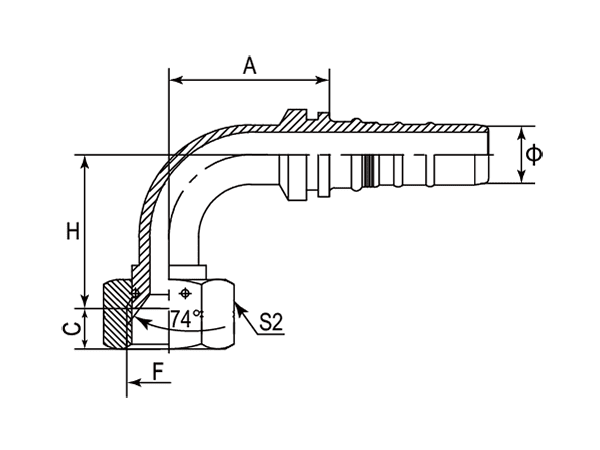

A drawing of DP9JCF-R13 interlock hose fitting.

-	Part Number	F (Thread)	Ø	A	C	H	S2
-	-	UNF	Inch	mm	mm	mm	mm
-01	DP9JCF-R13-1212	1-3/16"-12	20.00	73.80	15.00	64.50	32
-16	DP9JCF-R13-1616	1-5/16"-12	25.00	88.90	16.00	72.50	41
-20	DP9JCF-R13-2020	1-5/8"-12	32.00	105.80	16.10	81.50	50
-24	DP9JCF-R13-2424	1-7/8"-12	40.00	124.20	20.00	101.00	55
-32	DP9JCF-R13-3232	2-1/2"-12	50.00	150.30	23.50	121.30	75
