Location: Home Fluid Connector Hose Fittings InterlockDP1NPM-R13

DP1NPM-R13 Straight Connector NPTF Male 60° – Interlock

DCompanyDME
PProduct RangeHose Fitting
1Fitting StructureStraight
NPThread TypesNPTF
MConnection TypeMale
R13Hose FittingInterlock

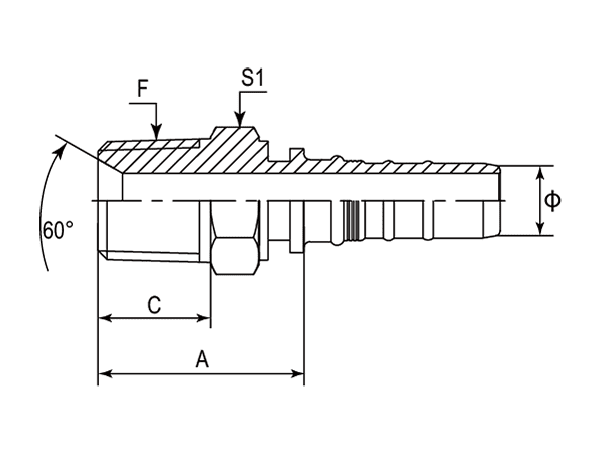

A drawing of DP1NPM-R13 hydraulic adaptor.

A 3D drawing of DP1NPM-R13 hydraulic adaptor.

A model drawing of DP1NPM-R13 hydraulic adaptor.

DME&JDE Code: DP1NPM-R13
Product Type: Hose Fitting
Hose Fitting Type: Interlock
Thread Type: NPTF 60°
Structure: Straight
Connection Type: Male

Technical Data of DP1NPM-R13

-12
-16
-20
-24
-32

A drawing of DP1NPM-R13 interlock hose fitting.

-	Part Number	F (Thread)	Ø	A	C	S1
-	-	NPTF	Inch	mm	mm	mm
-01	DP1NPM-R13-1212	3/4"-14	20.00	37.50	19.50	30
-16	DP1NPM-R13-1616	1"-11-1/2	25.00	45.90	25.50	38
-20	DP1NPM-R13-2020	1-1/4"-11-1/2	32.00	51.30	26.50	46
-24	DP1NPM-R13-2424	1-1/2"-11-1/2	40.00	54.20	27.50	50
-32	DP1NPM-R13-3232	2"-11-1/2	50.00	56.50	27.50	65
