DP9FS-R13 90° Elbow SAE Flange 6000 PSI – Interlock

  • DCompanyDME
  • PProduct RangeHose Fitting
  • 9Fitting Structure90° Elbow
  • FSConnection TypeSAE Flange 6000 PSI
  • R13Hose FittingInterlock
  • DME&JDE Code: DP9FS-R13
  • Product Type: hose fitting
  • Hose Fitting Type: Interlock
  • Structure: 90° Elbow
  • Connection Type: Flange 6000 PSI
Technical Data of DP9FS-R13
  • -12
  • -16
  • -20
  • -24
  • -32

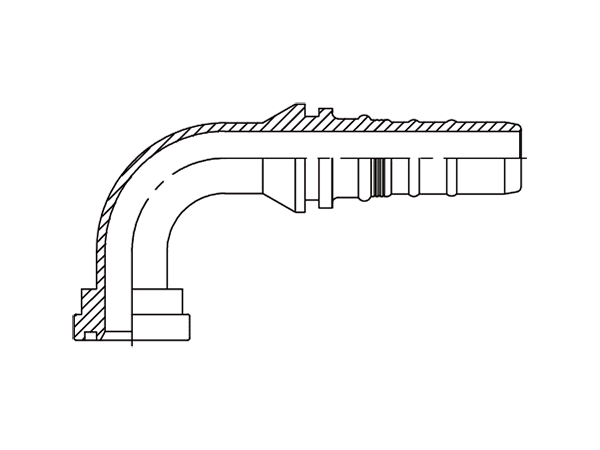

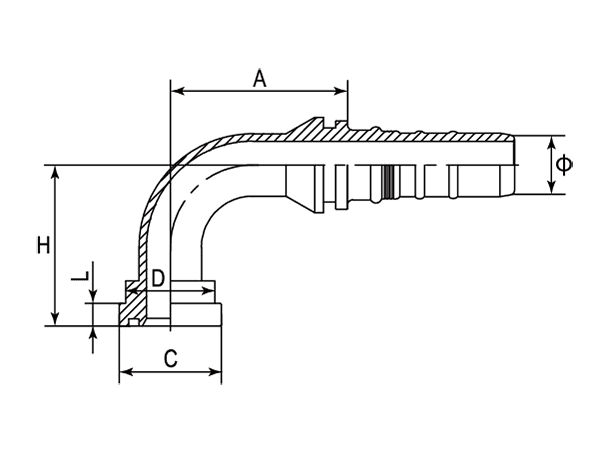

A drawing of DP9FS-R13 interlock hose fitting.
- Part Number Flange Size Ø A C D H L
- - - Inch mm mm mm mm mm
-01 DP9FS-R13-1212 3/4" 20.00 75.00 41.30 32.00 66.00 8.76
-16 DP9FS-R13-1612 1" 20.00 75.00 47.60 38.00 68.00 9.53
-16 DP9FS-R13-1616 1" 25.00 88.90 47.60 38.00 73.50 9.53
-20 DP9FS-R13-2016 1-1/4" 25.00 88.90 54.00 44.00 78.50 10.29
-20 DP9FS-R13-2020 1-1/4" 32.00 105.80 54.00 44.00 86.50 10.29
-24 DP9FS-R13-2420 1-1/2" 32.00 105.80 63.50 51.00 89.50 12.57
-24 DP9FS-R13-2424 1-1/2" 40.00 124.20 63.50 51.00 103.00 12.57
-32 DP9FS-R13-3224 2" 40.00 124.20 79.40 67.00 103.00 12.57
-32 DP9FS-R13-3232 2" 50.00 150.30 79.40 67.00 123.30 12.57
