DP4FL-R13 45° Elbow SAE Flange 3000 PSI – Interlock

  • DCompanyDME
  • PProduct RangeHose Fitting
  • 4Fitting Structure45° Elbow
  • FLConnection TypeSAE Flange 3000 PSI
  • R13Hose FittingInterlock
  • DME&JDE Code: DP4FL-R13
  • Product Type: Hose Fitting
  • Hose Fitting Type: Interlock
  • Structure: 45° Elbow
  • Connection Type: Flange 3000 PSI
Technical Data of DP4FL-R13
  • -12
  • -16
  • -20
  • -24
  • -32

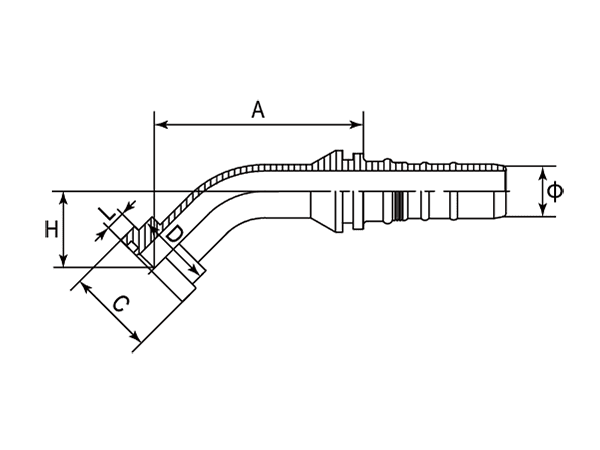

A drawing of DP4FL-R13 interlock hose fitting.
- Part Number Flange Size Ø A C D H L
- - - Inch mm mm mm mm mm
-01 DP4FL-R13-1212 3/4" 20.00 85.80 38.10 31.70 28.90 7.00
-16 DP4FL-R13-1612 1" 20.00 85.80 44.40 38.00 28.90 8.00
-16 DP4FL-R13-1616 1" 25.00 96.10 44.40 38.00 29.70 8.00
-20 DP4FL-R13-2016 1-1/4" 25.00 96.10 50.80 43.00 29.70 8.00
-20 DP4FL-R13-2020 1-1/4" 32.00 108.80 50.80 43.00 33.80 8.00
-24 DP4FL-R13-2420 1-1/2" 32.00 110.20 60.30 50.00 35.20 8.00
-24 DP4FL-R13-2424 1-1/2" 40.00 123.70 60.30 50.00 39.10 8.00
-32 DP4FL-R13-3224 2" 40.00 123.70 71.40 62.00 39.10 9.53
-32 DP4FL-R13-3232 2" 50.00 148.30 71.40 62.00 46.30 9.53
