DP4FS-R13 45° Elbow SAE Flange 6000 PSI – Interlock

  • DCompanyDME
  • PProduct RangeHose Fitting
  • 4Fitting Structure45° Elbow
  • FSConnection TypeSAE Flange 6000 PSI
  • R13Hose FittingInterlock
  • DME&JDE Code: DP4FS-R13
  • Product Type: hose fitting
  • Hose Fitting Type: Interlock
  • Structure: 45° Elbow
  • Connection Type: Flange 6000 PSI
Technical Data of DP4FS-R13
  • -12
  • -16
  • -20
  • -24
  • -32

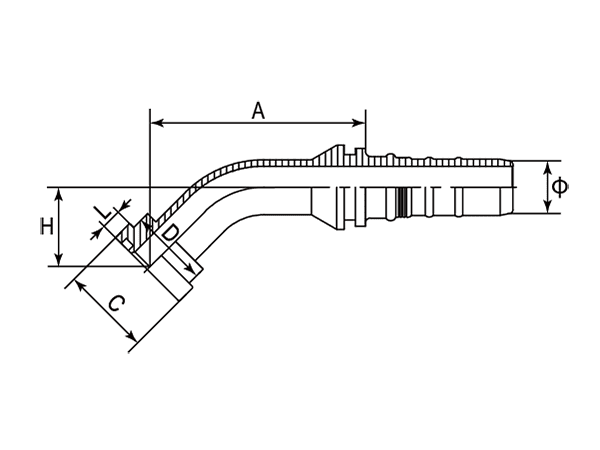

A drawing of DP4FS-R13 interlock hose fitting.
- Part Number Flange Size Ø A C D H L
- - - Inch mm mm mm mm mm
-01 DP4FS-R13-1212 3/4" 20.00 88.70 41.30 32.00 31.80 8.76
-16 DP4FS-R13-1612 1" 20.00 90.80 47.60 38.00 33.20 9.53
-16 DP4FS-R13-1616 1" 25.00 101.10 47.60 38.00 34.70 9.53
-20 DP4FS-R13-2016 1-1/4" 25.00 103.90 54.00 44.00 37.50 10.29
-20 DP4FS-R13-2020 1-1/4" 32.00 116.60 54.00 44.00 41.50 10.29
-24 DP4FS-R13-2420 1-1/2" 32.00 120.10 63.50 51.00 45.10 12.57
-24 DP4FS-R13-2424 1-1/2" 40.00 134.60 63.50 51.00 49.00 12.57
-32 DP4FS-R13-3224 2" 40.00 140.20 79.40 67.00 54.70 12.57
-32 DP4FS-R13-3232 2" 50.00 163.30 79.40 67.00 61.90 12.57
