Location: Home Fluid Connector Hose Fittings InterlockDP1ORF-R13

DP1ORF-R13 Straight Connector ORFS Female – Interlock

DCompanyDME
PProduct RangeHose Fitting
1Fitting StructureStraight
ORThread TypesORFS UNF
FConnection TypeFemale
R13Hose FittingInterlock

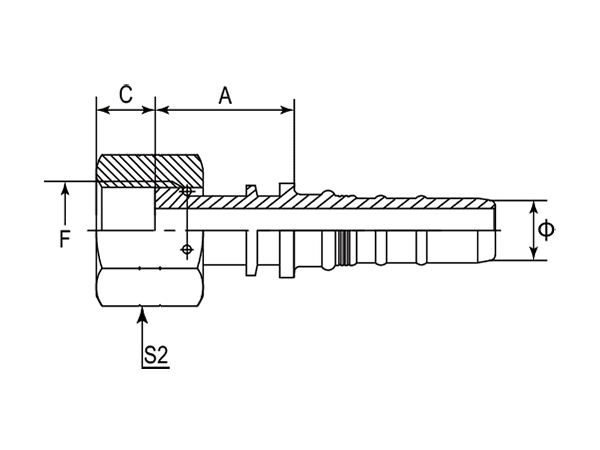

A drawing of DP1ORF-R13 hydraulic adaptor.

A 3D drawing of DP1ORF-R13 hydraulic adaptor.

A model drawing of DP1ORF-R13 hydraulic adaptor.

DME&JDE Code: DP1ORF-R13
Product Type: Hose Fitting
Hose Fitting Type: Interlock
Thread Type: UNF
Structure: Straight
Connection Type: Female

Technical Data of DP1ORF-R13

-12
-16
-20
-24

A drawing of DP1ORF-R13 interlock hose fitting.

-	PART NUMBER	F (Thread)	Ø	A	C	S2
-	-	UNF	Inch	mm	mm	mm
-01	DP1ORF-R13-1212	1-3/16"-12	20.00	41.00	15.00	36
-16	DP1ORF-R13-1616	1-7/16"-12	25.00	44.40	15.00	41
-20	DP1ORF-R13-2020	1-11/16"-12	32.00	47.80	15.00	50
-24	DP1ORF-R13-2424	2"-12	40.00	48.20	15.00	60
