Location: Home Fluid Connector Hose Fittings InterlockDP4FSCAT-R13

DP4FSCAT-R13 45° Elbow SAE Flange 9000 PSI – Interlock

DCompanyDME
PProduct RangeHose Fitting
4Fitting Structure45° Elbow
FSCATConnection TypeSAE Flange 9000 PSI
R13Hose FittingInterlock

A drawing of DP4FSCAT-R13 hydraulic adaptor.

A 3D drawing of DP4FSCAT-R13 hydraulic adaptor.

A model drawing of DP4FSCAT-R13 hydraulic adaptor.

DME&JDE Code: DP4FSCAT-R13
Product Type: hose fitting
Hose Fitting Type: Interlock
Structure: 45° Elbow
Connection Type: Flange 9000 PSI

Technical Data of DP4FSCAT-R13

-12
-16
-20
-24
-32

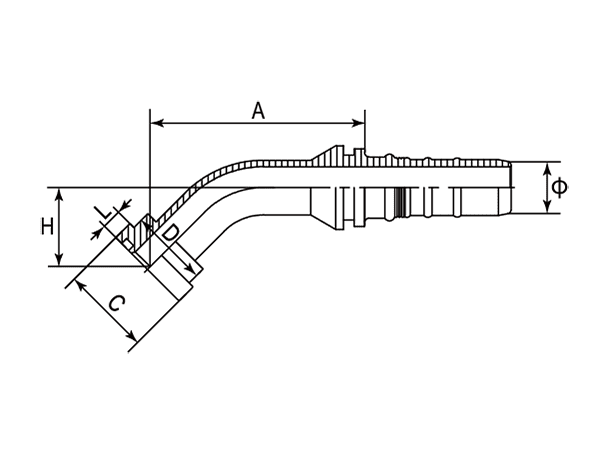

A drawing of DP4FSCAT-R13 interlock hose fitting.

-	Part Number	Flange Size	Ø	A	C	D	H	L
-	-	-	Inch	mm	mm	mm	mm	mm
-01	DP4FSCAT-R13-1212	3/4"	20.00	92.60	41.30	32.00	35.60	14.30
-16	DP4FSCAT-R13-1612	1"	20.00	93.70	47.60	38.00	36.70	14.30
-16	DP4FSCAT-R13-1616	1"	25.00	103.90	47.60	38.00	37.50	14.30
-20	DP4FSCAT-R13-2016	1-1/4"	25.00	104.60	54.00	43.00	38.20	14.30
-20	DP4FSCAT-R13-2020	1-1/4"	32.00	117.30	54.00	43.00	42.30	14.30
-24	DP4FSCAT-R13-2420	1-1/2"	32.00	118.00	63.50	51.00	43.00	14.30
-24	DP4FSCAT-R13-2424	1-1/2"	40.00	132.50	63.50	51.00	46.90	14.30
