Location: Home Fluid Connector Hose Fittings InterlockDP4ORF-R13

DP4ORF-R13 45° Elbow ORFS Female – Interlock

DCompanyDME
PProduct RangeHose Fitting
4Fitting Structure45° Elbow
ORThread TypesORFS UNF
FConnection TypeFemale
R13Hose FittingInterlock

A drawing of DP4ORF-R13 hydraulic adaptor.

A 3D drawing of DP4ORF-R13 hydraulic adaptor.

A model drawing of DP4ORF-R13 hydraulic adaptor.

DME&JDE Code: DP4ORF-R13
Product Type: Hose Fitting
Hose Fitting Type: Interlock
Thread Type: UNF
Structure: 45° Elbow
Connection Type: Female

Technical Data of DP4ORF-R13

-12
-16
-20
-24

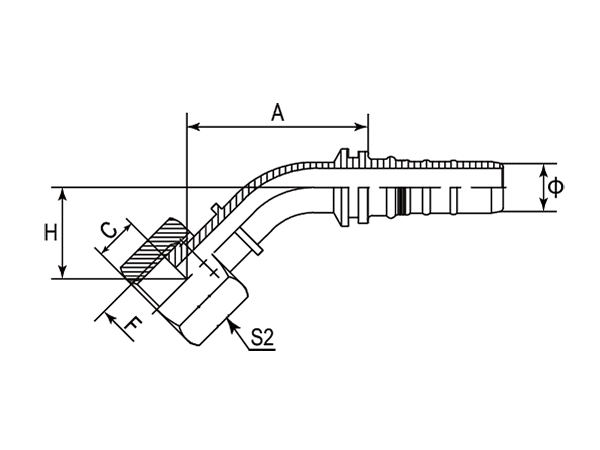

A drawing of DP4ORF-R13 interlock hose fitting.

-	Part Number	F (Thread)	Ø	A	C	H	S2
-	-	UNF	Inch	mm	mm	mm	mm
-01	DP4ORF-R13-1212	1-3/16"-12	20.00	97.70	15.00	42.00	36
-16	DP4ORF-R13-1616	1-7/16"-12	25.00	111.00	15.00	44.60	41
-20	DP4ORF-R13-2020	1-11/16"-12	32.00	124.00	15.00	49.00	50
-24	DP4ORF-R13-2424	2"-12	40.00	138.20	15.00	53.60	60
