Location: Home Fluid Connector Hose Fittings InterlockDP1FL-R13

DP1FL-R13 Straight Connector SAE Flange 3000 PSI – Interlock

DCompanyDME
PProduct RangeHose Fitting
1Fitting StructureStraight
FLConnection TypeSAE Flange 3000 PSI
R13Hose FittingInterlock

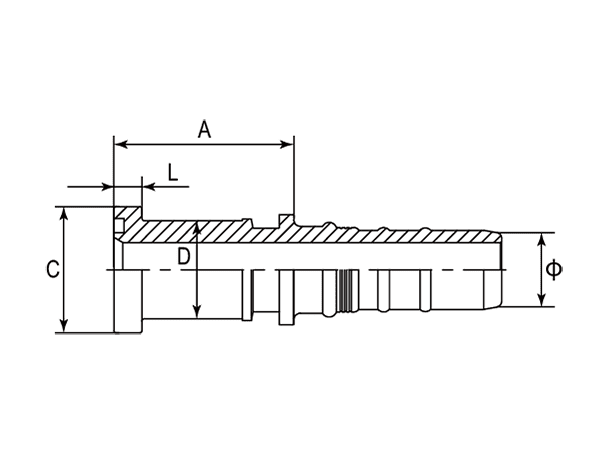

A drawing of DP1FL-R13 hydraulic adaptor.

A 3D drawing of DP1FL-R13 hydraulic adaptor.

A model drawing of DP1FL-R13 hydraulic adaptor.

DME&JDE Code: DP1FL-R13
Product Type: Hose Fitting
Hose Fitting Type: Interlock
Fitting Structure: Straight
Connection Type: Flange 3000 PSI

Technical Data of DP1FL-R13

-12
-16
-20
-24
-32

A drawing of DP1FL-R13 interlock hose fitting.

-	Part Number	Flange Size	Ø	A	C	D	L
-	-	-	Inch	mm	mm	mm	mm
-01	DP1FL-R13-1212	3/4"	20.00	50.00	38.10	31.70	7.00
-16	DP1FL-R13-1612	1"	20.00	54.00	44.40	38.00	8.20
-16	DP1FL-R13-1616	1"	25.00	54.40	44.40	38.00	8.20
-20	DP1FL-R13-2016	1-1/4"	25.00	59.40	50.80	43.20	8.20
-20	DP1FL-R13-2020	1-1/4"	32.00	65.80	50.80	43.20	8.20
-24	DP1FL-R13-2420	1-1/2"	32.00	71.80	60.30	50.30	8.20
-24	DP1FL-R13-2424	1-1/2"	40.00	72.20	60.30	50.30	8.20
-32	DP1FL-R13-3224	2"	40.00	74.20	71.40	62.20	9.80
-32	DP1FL-R13-3232	2"	50.00	78.50	71.40	62.20	9.80
