DP4MFS-R13 45° Elbow Metric Female 24° Cone + O Ring Heavy Type – Interlock

  • DCompanyDME
  • PProduct RangeHose Fitting
  • 4Fitting Structure45° Elbow
  • MThread TypesMetric
  • FSConnection TypeFemale + O Ring Heavy Type
  • R13Hose FittingInterlock
  • DME&JDE Code: DP4MFS-R13
  • Product Type: Hose Fitting
  • Hose Fitting Type: Interlock
  • Thread Type: Metric 24° Cone + O Ring Heavy Type
  • Structure: 45° Elbow
  • Connection Type: Female
  • Sealing Method: O Rings
Technical Data of DP4MFS-R13
  • -36
  • -42
  • -52

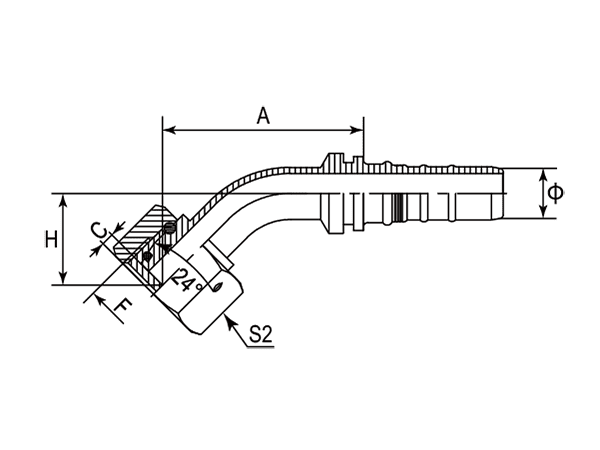

A drawing of DP4MFS-R13 interlock hose fitting.
- Part Number F (Thread) Ø A C H S2
- - Metric Inch mm mm mm mm
-01 DP4MFS-R13-3612 M36X2 20.00 89.40 3.50 33.00 46.00
-42 DP4MFS-R13-4216 M42X2 25.00 102.30 3.90 35.90 50.00
-52 DP4MFS-R13-5220 M52X2 32.00 114.50 4.50 39.40 60.00
