Location: Home Fluid Connector Hydraulic Flange & AdaptorDFL3

DFL3 Split Flange SAE Code 61

DCompanyDME
FLProduct RangeFlange
3Flange SeriesSAE Code 61

A drawing of DFL3 hydraulic adaptor.

A 3D drawing of DFL3 hydraulic adaptor.

A model drawing of DFL3 hydraulic adaptor.

DME&JDE Code: DFL3
Product Type: flange
Flange Type: split flange
Connection Type: Flange Code 61

Technical Data of DFL3

-08
-12
-16
-20
-24
-32
-40
-48

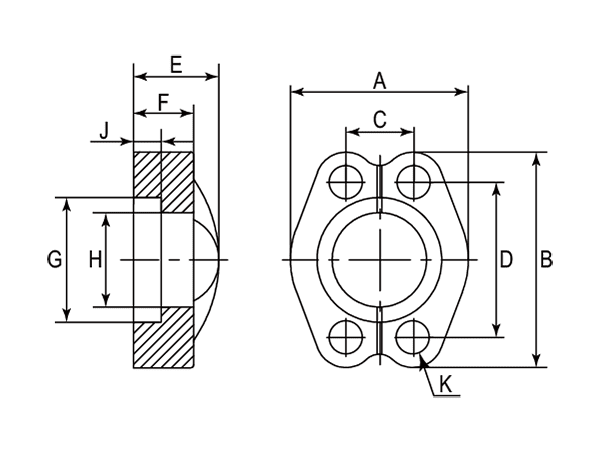

A drawing of DFL3 hydraulic flange fitting.

Technical Data of DFL3
-	Part Number	Flange Size	A	B	C	D	E	F	G	H	J	K
-	-	-	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm
-01	DFL3-08	0.5	45.97	5385.00	17.48	38.10	19.05	12.70	30.96	24.26	6.22	9.00
-12	DFL3-12	0.75	52.32	65.02	22.25	47.63	22.35	14.22	38.89	32.13	6.22	11.00
-16	DFL3-16	1	58.67	69.85	26.16	52.30	23.88	15.75	45.24	38.48	7.49	11.00
-20	DFL3-20	1.25	73.15	79.25	30.18	58.72	22.35	14.22	51.59	43.69	7.49	12.00
-24	DFL3-24	1.5	82.55	93.73	35.71	69.85	25.40	15.75	61.11	50.80	7.49	13.50
-32	DFL3-32	2	96.77	101.60	42.88	77.77	26.16	15.75	72.24	62.74	9.02	13.50
-40	DFL3-40	2.5	108.71	114.30	50.80	88.90	38.10	19.05	84.94	74.93	9.02	13.50
-48	DFL3-48	3	131.06	134.87	61.93	106.38	42.40	22.35	102.39	90.93	9.02	17.50
