Location: Home Fluid Connector Hydraulic Flange & AdaptorDAOF51334

DAOF51334 Straight Connector ORFS Male – Flange SAE Code 61

DCompanyDME
AProduct RangeAdaptor
OFThread TypesOFRS
5Connection TypeMale
1Adaptor StructureStraight
3Adaptor TypeFlange
3Flange SerieseSAE Code 61
4Flange Head TypeSlip Flange Head

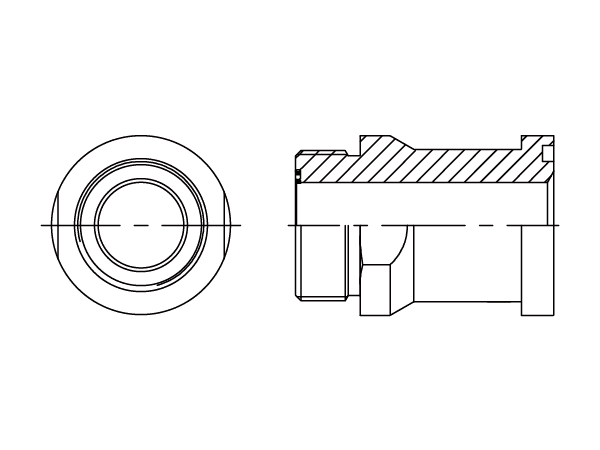

A drawing of DAOF51334 hydraulic adaptor.

A 3D drawing of DAOF51334 hydraulic adaptor.

A model drawing of DAOF51334 hydraulic adaptor.

DME&JDE Code: DAOF51334
Product Type: hydraulic adaptor, flange
Standard: ORFS
Structure: Straight
Connection Types: Male × Flange SAE Code 61
Thread Types: UNF × SAE Code 61 Flange

Technical Data of DAOF51334

-08
-12
-16
-20
-24
-32

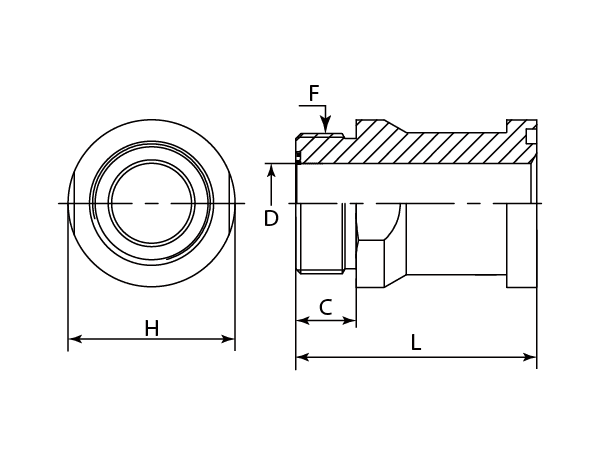

A drawing of DAOF51334 flange adaptor.

-	Part Number	F (Thread)	C	D	L	H
-	-	UNF	mm	mm	mm	mm
-01	DAOF51334-0808	13/16"-16	13	9.5	62.35	28.5
-12	DAOF51334-1212	1-3/16"-12	16.99	15.49	69.85	34.85
-12	DAOF51334-1216	1-3/16"-12	16.99	15.49	71.12	41.2
-16	DAOF51334-1612	1-7/16"-12	17.5	15.49	69.85	41.2
-16	DAOF51334-1616	1-7/16"-12	17.5	20.6	71.1	41.2
-16	DAOF51334-1620	1-7/16"-12	17.5	20.5	71.1	44.37
-20	DAOF51334-2020	1-11/16"-12	17.5	26	64.3	44.37
-20	DAOF51334-2024	1-11/16"-12	17.5	26	88.9	53.9
-24	DAOF51334-2424	2"-12	17.5	32	88.9	53.9
-24	DAOF51334-2432	2"-12	17.5	32	84.61	66.6
-32	DAOF51334-3232	1-1/2"-12	22.25	45	89.36	66.6

Certificate

ISO 9001

ISO 14001

ISO 45001

MSHA

IATF

BV

DAkkS

SGS

GOST

DEKRA

DIN

SAE

MA

WSF

Other Items You Might Like

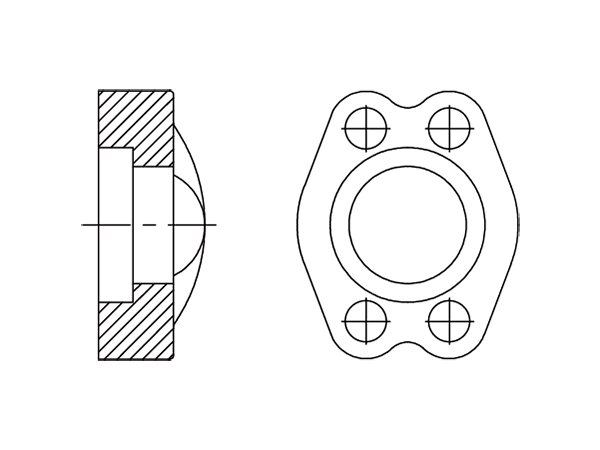

A drawing of DFLC3 hydraulic flange fitting.

DFLC3

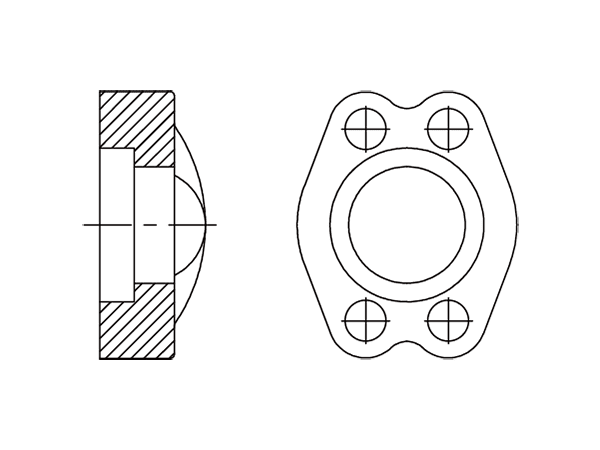

A drawing of DFLC6 hydraulic flange fitting.

Captive Flange SAE Code 62

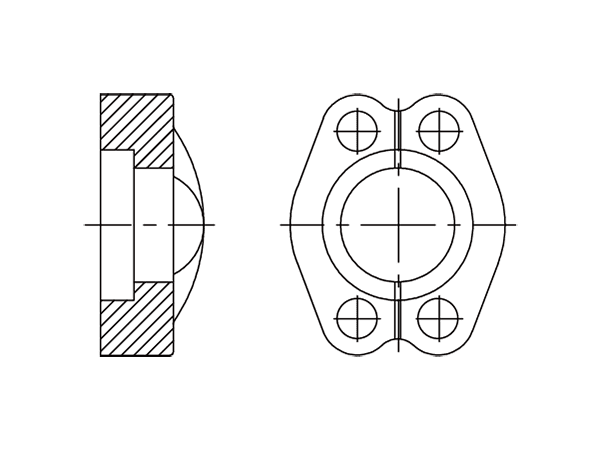

A drawing of DFL3 hydraulic flange fitting.

Split Flange SAE Code 61

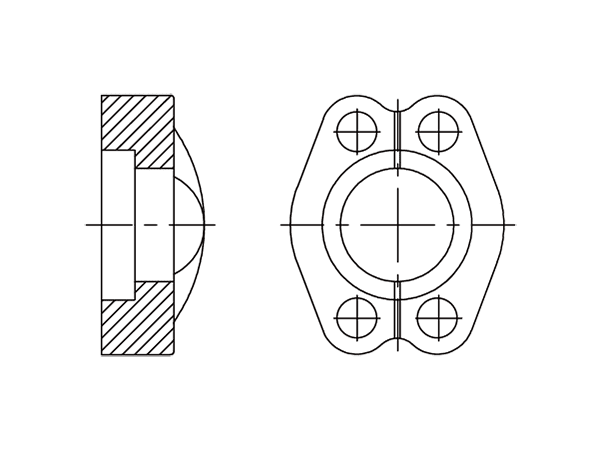

A drawing of DFL6 hydraulic flange fitting.

Split Flange SAE Code 62

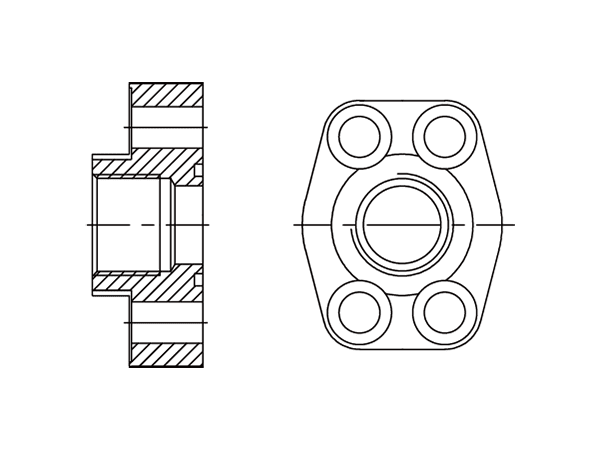

A drawing of DFL3BP hydraulic flange fitting.

4 Bolt Thread Flange, BSPP Female Code 61

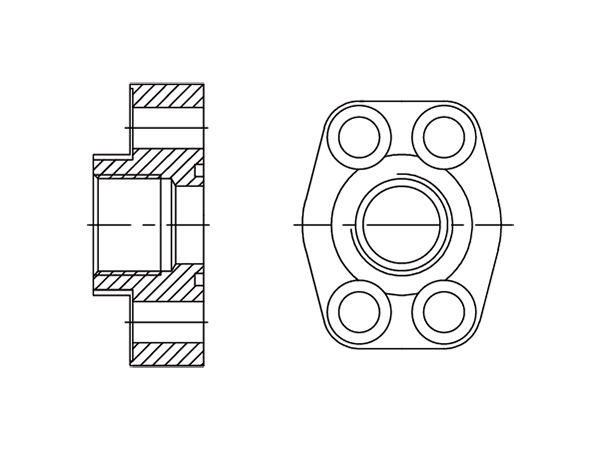

A drawing of DFL6BP hydraulic flange fitting.

Captive Flange SAE Code 61

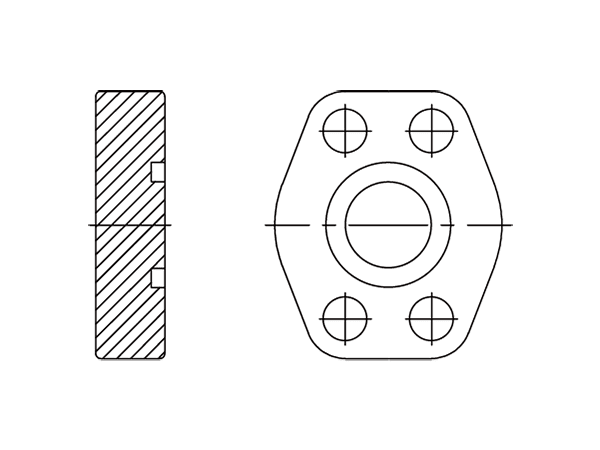

A drawing of DFLB3 hydraulic flange fitting.

Blind Flanges Zero Pressure SAE Code 61

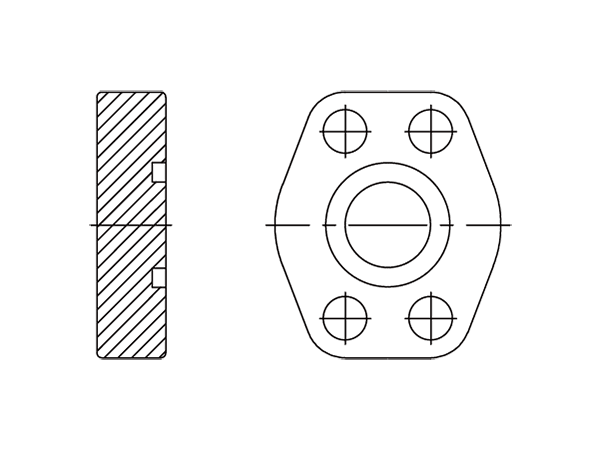

A drawing of DFLB6 hydraulic flange fitting.

Blind Flanges Zero Pressure SAE Code 62

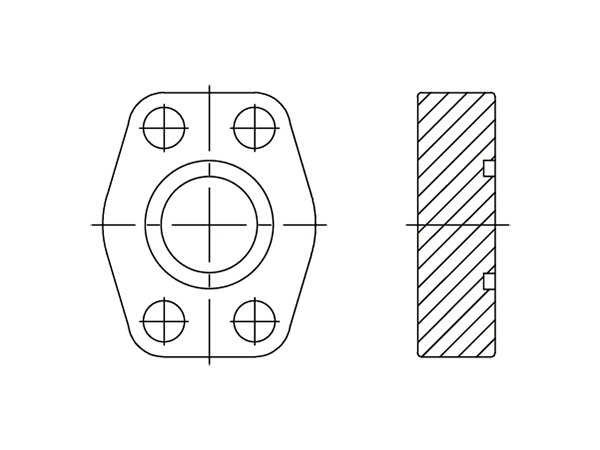

A drawing of DFLBP3 hydraulic flange fitting.

Blind Flanges Low Pressure SAE Code 61

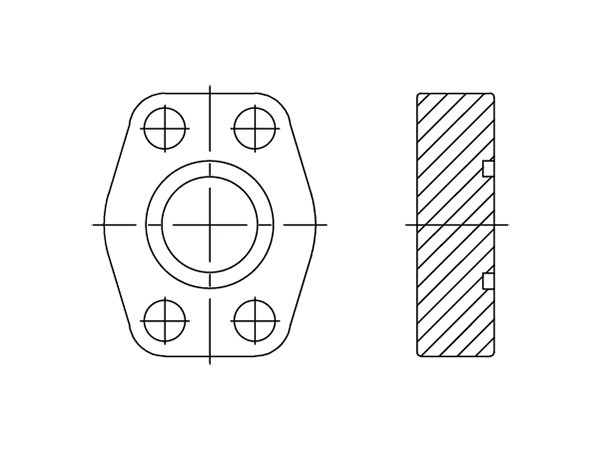

A drawing of DFLBP6 hydraulic flange fitting.

Blind Flanges Low Pressure SAE Code 62

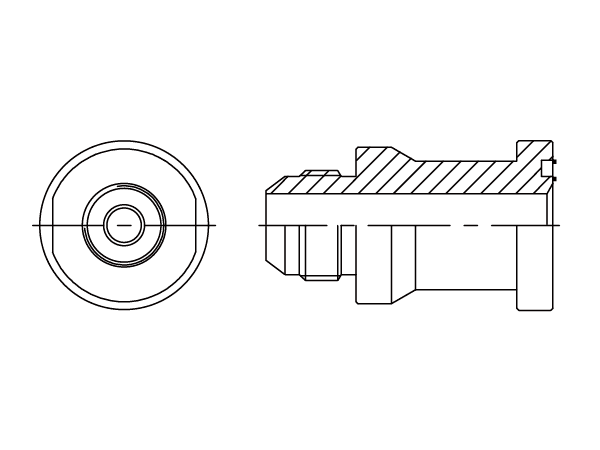

A drawing of DAJCM1334 flange adaptor.

Straight JIC Male 74° – Flange SAE Code 61

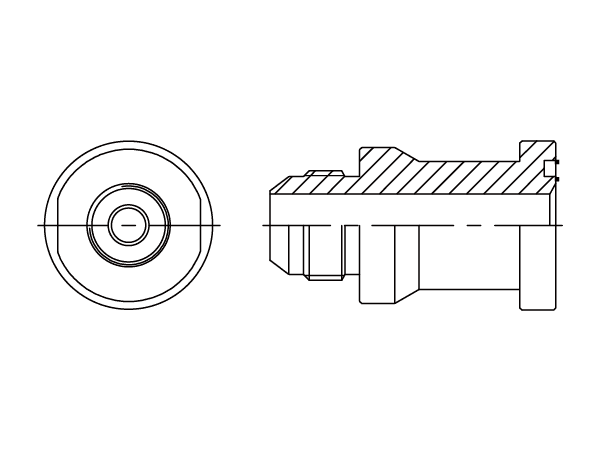

A drawing of DAJCM1364 flange adaptor.

Straight Connector JIC Male – Flange SAE Code 62

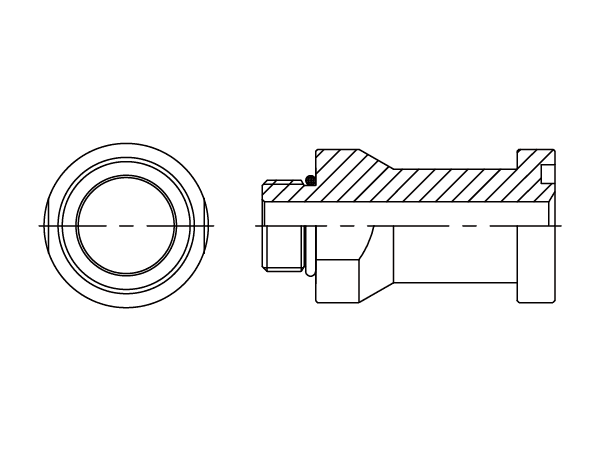

A drawing of DAUNM1334 flange adaptor.

Straight Connector SAE Male + O Ring – Flange SAE Code 61

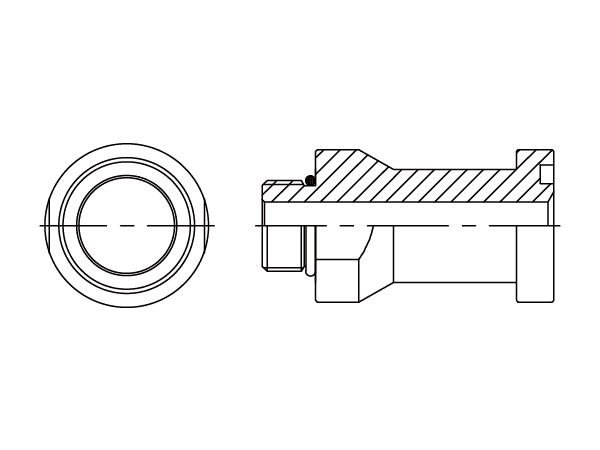

A drawing of DAUNM1364 flange adaptor.

Straight Connector SAE Male + O Ring – Flange SAE Code 62

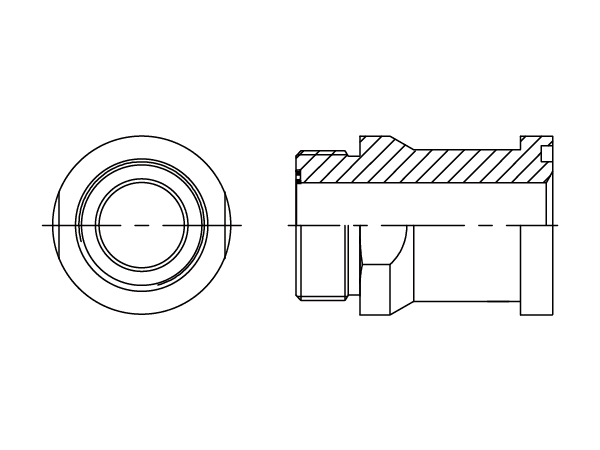

A drawing of DAOF51364 flange adaptor.

Straight Connector ORFS Male – Flange SAE Code 62

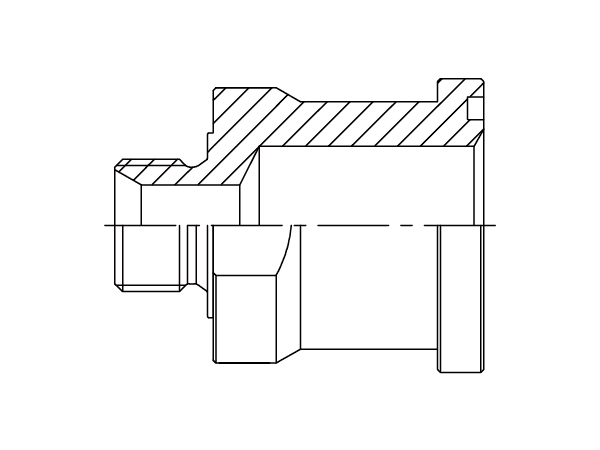

A drawing of DABPM1334 flange adaptor.

Straight Connector BSPP Male 60° – Flange SAE Code 61

A drawing of DABPM1364 flange adaptor.

Straight Connector BSPP Male 60° – Flange SAE Code 62

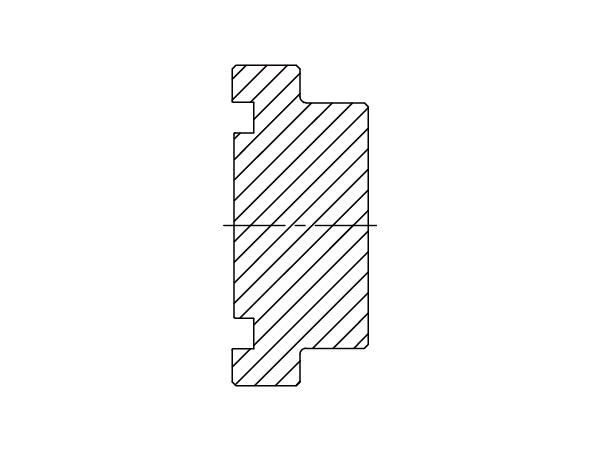

A drawing of DFLOP3 hydraulic flange fitting.

SAE Flange Plug with O Ring Code 61

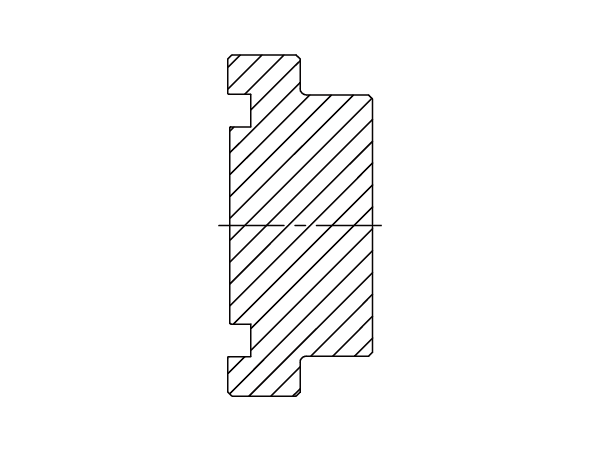

A drawing of DFLOP6 hydraulic flange fitting.

SAE Flange Plug with O Ring Code 62

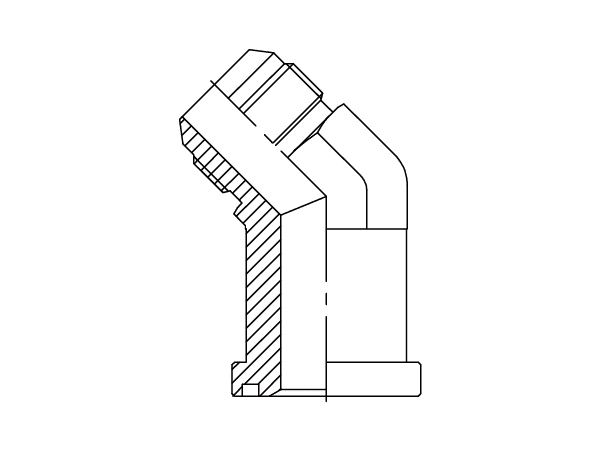

A drawing of DAJCM4334 flange adaptor.

45° Forged Elbows JIC Male 74° – Flange SAE Code 61

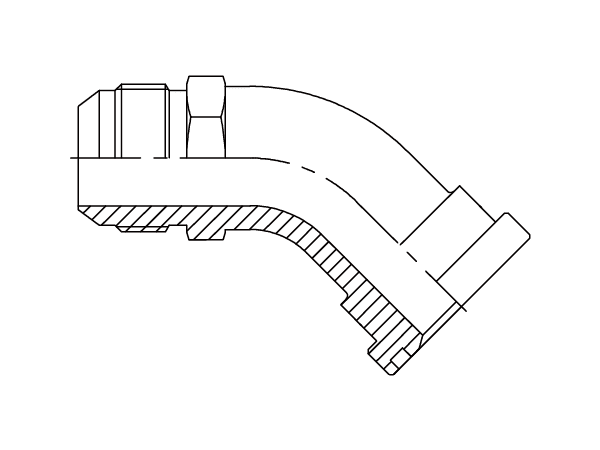

A drawing of DAJCM4334-B flange adaptor.

45° Swept Elbows JIC Male 74° – Flange SAE Code 61

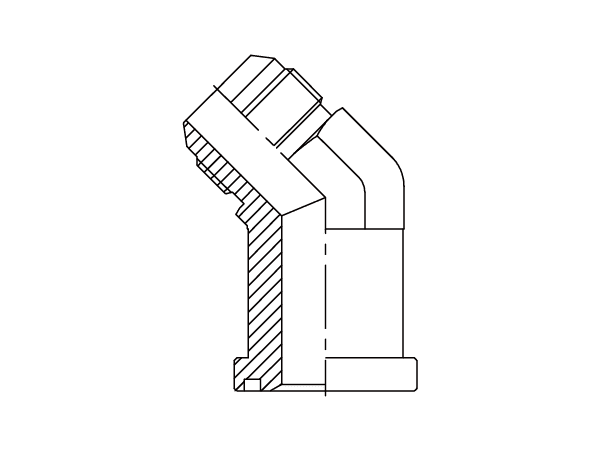

A drawing of DAJCM4364 flange adaptor.

45° Forged Elbow JIC Male 74° – Flange SAE Code 62

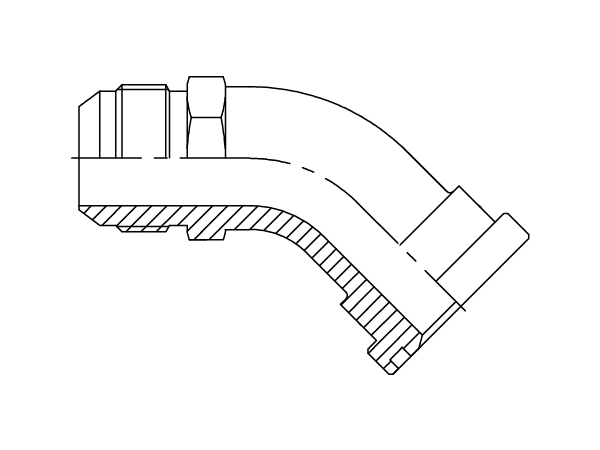

A drawing of DAJCM4364-B flange adaptor.

45° Swept Elbow JIC Male 74° – Flange SAE Code 62

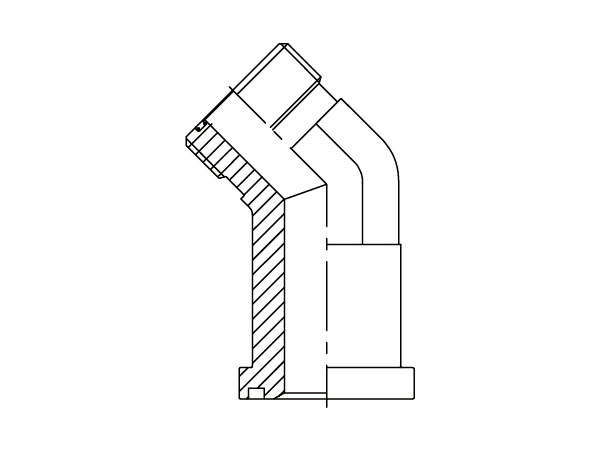

A drawing of DAOF54334 flange adaptor.

45° Forged Elbows ORFS Male – Flange SAE Code 61

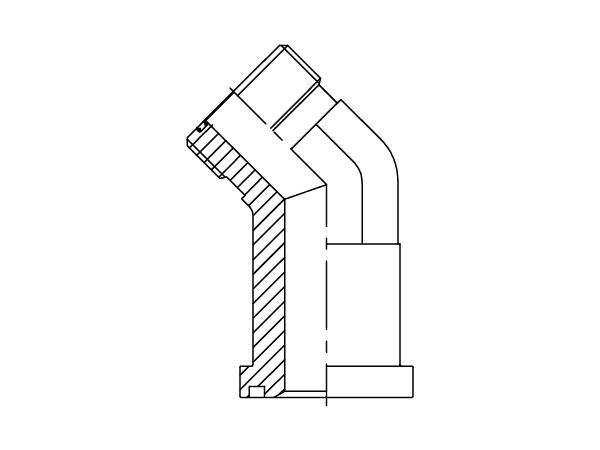

A drawing of DAOF54364 flange adaptor.

45° Forged Elbows ORFS Male – Flange SAE Code 62

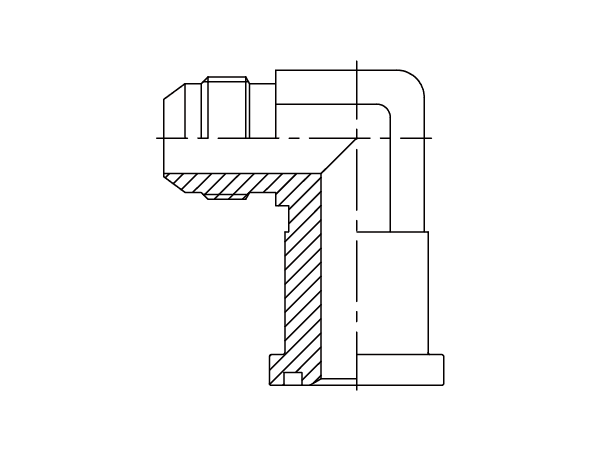

A drawing of DAJCM9334 flange adaptor.

90° Forged Elbow JIC Male 74° – Flange SAE Code 61

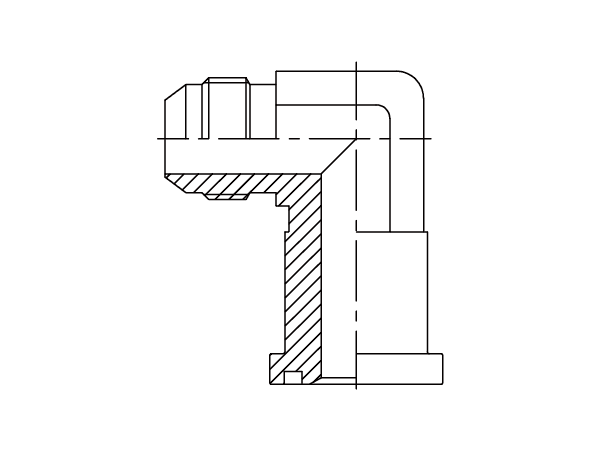

A drawing of DAJCM9364 flange adaptor.

90° Forged Elbow JIC Male 74° – Flange SAE Code 62

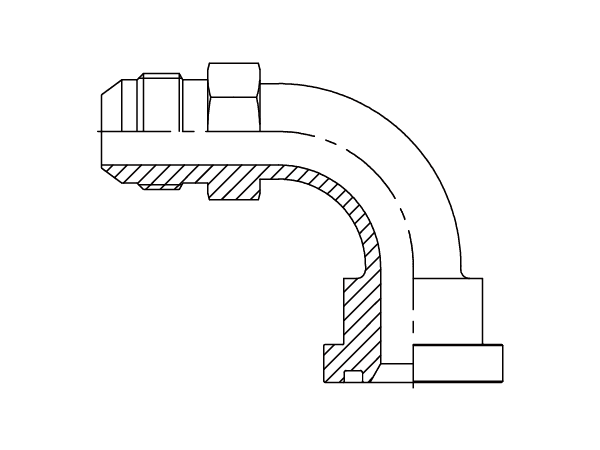

A drawing of DAJCM9334-B flange adaptor.

90° Swept Elbows JIC Male 74° – Flange SAE Code 61

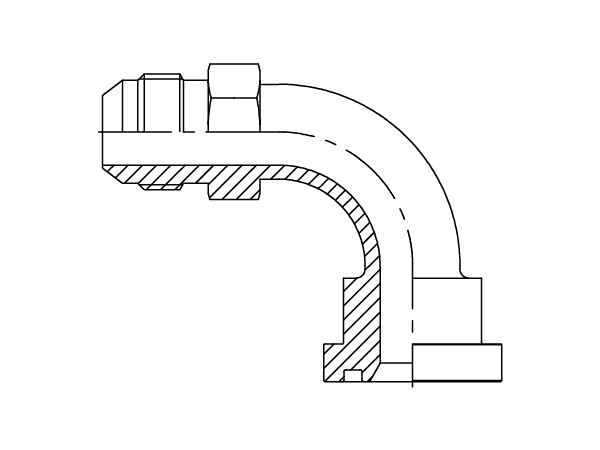

A drawing of DAJCM9364-B flange adaptor.

90° Swept Elbows JIC Male 74° – Flange SAE Code 62

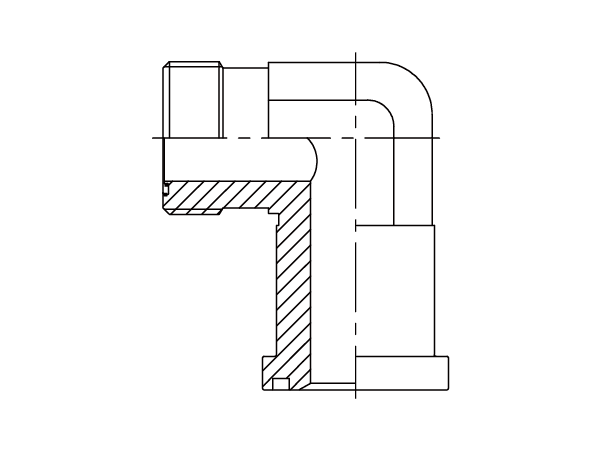

A drawing of DAOF59334 flange adaptor.

90° Forged Elbow ORFS Male – Flange SAE Code 61

A drawing of DAOF59364 flange adaptor.

90° Forged Elbow ORFS Male – Flange SAE Code 62

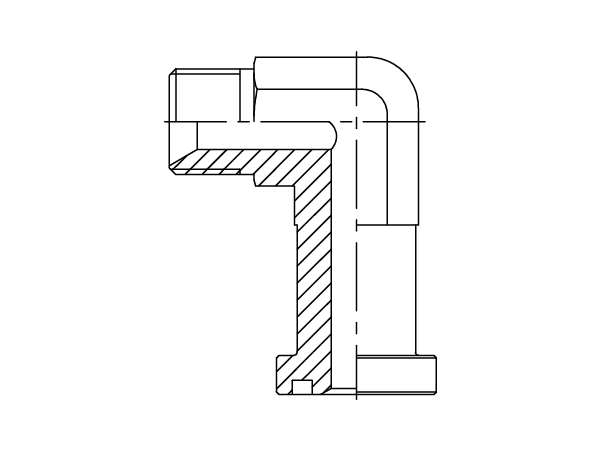

A drawing of DABPM9334 flange adaptor.

90° Forged Elbow ORFS Male – Flange SAE Code 62

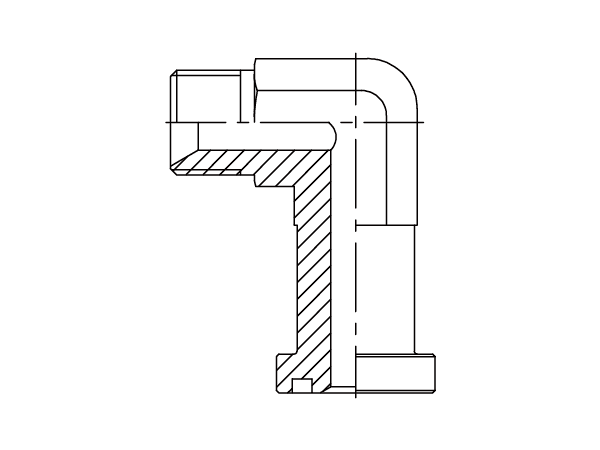

A drawing of DABPM9364 flange adaptor.
