Location: Home Fluid Connector Hydraulic Flange & AdaptorDAOF59364

DAOF59364 90° Forged Elbow ORFS Male – Flange SAE Code 62

DCompanyDME
AProduct RangeAdaptor
OFThread TypesOFRS
5Connection TypeMale
9Adaptor Structure90° Elbow
3Adaptor TypeFlange
6Flange SeriesSAE Code 62
4Flange Head TypeSlip Flange Head

A drawing of DAOF59364 hydraulic adaptor.

A 3D drawing of DAOF59364 hydraulic adaptor.

A model drawing of DAOF59364 hydraulic adaptor.

DME&JDE Code: DAOF59364
Product Type: hydraulic adaptor, flange
Standard: ORFS
Structure: 90° Forged Elbow
Connection Types: Male × Flange SAE Code 62
Thread Types: ORFS UNF × SAE Code 62 Flange

Technical Data of DAOF59364

-12
-16
-20
-24

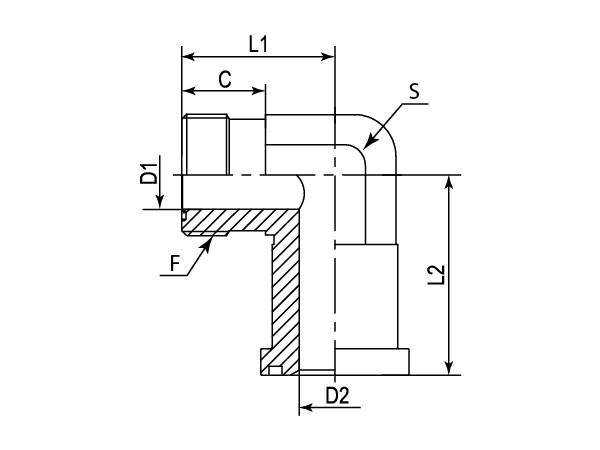

A drawing of DAOF59364 flange adaptor.

-	Part Number	F (Thread)	C	D1	D2	L1	L2	S
-	-	UNF	mm	mm	mm	mm	mm	Inch
-01	DAOF59364-1212	1-3/16"-12	17.02	15.47	15.47	42.2	54.1	1-3/16''
-01	DAOF59364-1216	1-3/16"-12	24	15.47	21.44	46	60.2	1-5/16''
-16	DAOF59364-1612	1-7/16"-12	25.2	20.6	15.52	46	59.5	1-5/16''
-16	DAOF59364-1616	1-7/16"-12	25.5	20.6	20.6	46	60.2	1-5/16''
-16	DAOF59364-1620	1-7/16"-12	25.2	20.6	27.38	53.33	70.1	1-5/8''
-20	DAOF59364-2016	1-11/16"-12	24.33	26	21.44	45.97	60.2	1-5/8''
-20	DAOF59364-2020	1-11/16"-12	25	26	26	52.32	70.1	1-5/8''
-20	DAOF59364-2024	1-11/16''-12	25	26	33.48	59.2	80	1-7/8''
-24	DAOF59364-2424	2"-12	29.5	32	32	59.18	80.01	1-7/8''
