Location: Home Fluid Connector Hydraulic Flange & AdaptorDAUNM1364

DAUNM1364 Straight Connector SAE Male + O Ring – Flange SAE Code 62

DCompanyDME
AProduct RangeAdaptor
UNThread TypesSAE
MConnection TypeMale
1Adaptor StructureStraight
3Adaptor TypeFlange
6Flange SerieseSAE Code 62
4Flange Head TypeSlip Flange Head

A drawing of DAUNM1364 hydraulic adaptor.

A 3D drawing of DAUNM1364 hydraulic adaptor.

A model drawing of DAUNM1364 hydraulic adaptor.

DME&JDE Code: DAUNM1364
Product Type: hydraulic adaptor, flange
Standard: SAE
Structure: Straight
Connection Types: Male × Flange SAE Code 62
Thread Types: UNF + O Ring × SAE Code 62 Flange

Technical Data of DAUNM1364

-08
-12
-16
-20
-24
-32

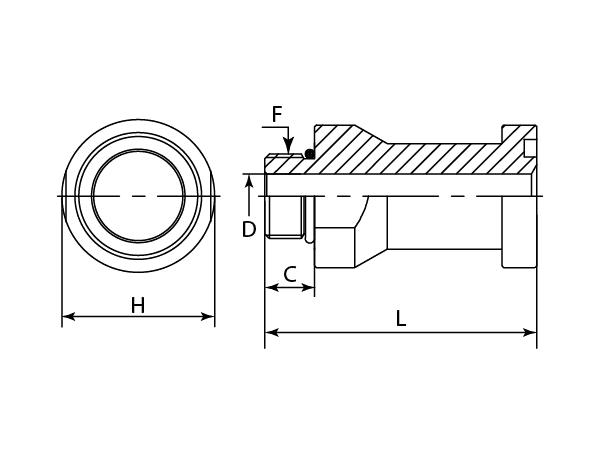

A drawing of DAUNM1364 flange adaptor.

-	Part Number	F (Thread)	C	D	L	H
-	-	UNF	mm	mm	mm	mm
-01	DAUNM1364-0808	3/4"-16	14	9.93	63.5	28.5
-12	DAUNM1364-1212	1-1/16"-12	18.49	15.47	66.55	34.85
-16	DAUNM1364-1612	1-5/16"-12	18.49	15.52	66.6	34.85
-16	DAUNM1364-1616	1-5/16"-12	18.49	21.44	66.6	41.2
-20	DAUNM1364-2020	1-5/8"-12	18.49	27.38	76.2	47.55
-24	DAUNM1364-2424	1-7/8"-12	18.49	33.32	81.03	53.9
-32	DAUNM1364-3232	2-1/2"-12	18.49	45.24	95.25	69.77
