Location: Home Fluid Connector Hydraulic Flange & AdaptorDAOF59334

DAOF59334 90° Forged Elbow ORFS Male – Flange SAE Code 61

DCompanyDME
AProduct RangeAdaptor
OFThread TypesOFRS
5Connection TypeMale
9Adaptor Structure90° Elbow
3Adaptor TypeFlange
3Flange SeriesSAE Code 61
4Flange Head TypeSlip Flange Head

A drawing of DAOF59334 hydraulic adaptor.

A 3D drawing of DAOF59334 hydraulic adaptor.

A model drawing of DAOF59334 hydraulic adaptor.

DME&JDE Code: DAOF59334
Product Type: hydraulic adaptor, flange
Standard: ORFS
Structure: 90° Forged Elbow
Connection Types: Male × Flange SAE Code 61
Thread types: ORFS UNF × SAE Code 61 Flange

Technical Data of DAOF59334

-12
-16
-20
-24

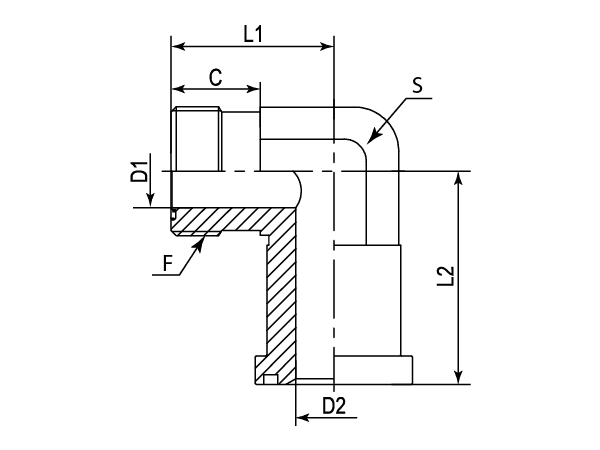

A drawing of DAOF59334 flange adaptor.

-	Part Number	F (Thread)	C	D1	D2	L1	L2	S
-	-	UNF	mm	mm	mm	mm	mm	Inch
-01	DAOF59334-1212	1-3/16"-12	17.02	15.52	15.52	42.16	54.1	1-3/16''
-01	DAOF59334-1216	1-3/16"-12	24	15.5	20.6	46	60.2	1-5/16''
-16	DAOF59334-1612	1-7/16"-12	25.2	20.6	15.52	46	54.5	1-7/16''
-16	DAOF59334-1616	1-7/16"-12	25.2	20.6	20.6	46	60.2	1-7/16''
-16	DAOF59334-1620	1-7/16"-12	25.2	20.6	20.6	52.3	66.55	1-5/8''
-20	DAOF59334-2016	1-11/16"-12	25	21.44	21.44	52.3	65	1-5/8''
-20	DAOF59334-2020	1-11/16"-12	25	26	26	52.32	66.55	1-5/8''
-20	DAOF59334-2024	1-11/16"-12	25	26	26	59.2	80	1-7/8''
-24	DAOF59334-2420	2"-12	29.5	27.38	27.38	59.18	72.5	1-7/8''
-24	DAOF59334-2424	2"-12	29.5	32	33.48	59.18	80.01	1-7/8''
