Location: Home Fluid Connector Hydraulic Flange & AdaptorDAJCM4364-B

DAJCM4364-B 45° Swept Elbow JIC Male 74° – Flange SAE Code 62

DCompanyDME
AProduct RangeAdaptor
JCThread TypesJIC
MConnection TypeMale
4Adaptor Structure45° Elbow
3Adaptor TypeFlange
6Flange SeriesSAE Code 62
4Flange Head TypeSlip Flange Head
BElbow TypeSwept

A drawing of DAJCM4364-B hydraulic adaptor.

A 3D drawing of DAJCM4364-B hydraulic adaptor.

A model drawing of DAJCM4364-B hydraulic adaptor.

DME&JDE Code: DAJCM4364-B
Product Type: hydraulic adaptor, flange
Standard: JIC
Structure: 45° Swept Elbow
Connection Types: Male × Flange SAE Code 62
Thread Types: JIC 74° Cone × SAE Code 62 Flange

Technical Data of DAJCM4364-B

-12
-16
-20
-24

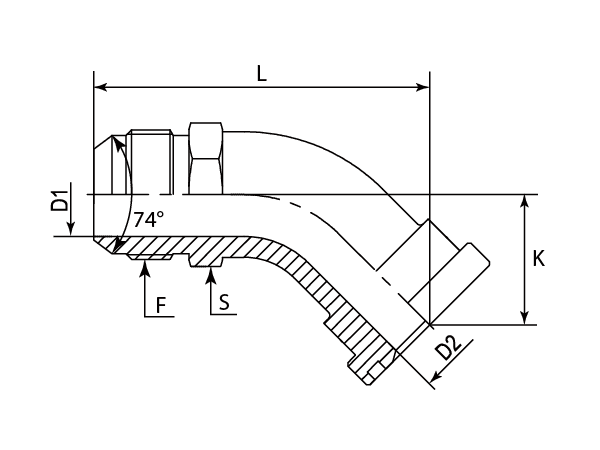

A drawing of DAJCM4364-B flange adaptor.

-	Part Number	F (Thread)	D1	D2	L	K	S
-	-	UNF	mm	mm	mm	mm	mm
-01	DAJCM4364-1212B	1-1/16"-12	15.5	15.5	85	29	28.58
-01	DAJCM4364-1220B	1-1/16"-12	15.47	15.47	95	42	28.57
-16	DAJCM4364-1616B	1-5/16"-12	20	20	105	42	34.93
-16	DAJCM4364-1620B	1-5/16"-12	21	21	118.6	44	34.93
-16	DAJCM4364-1624B	1-5/16"-12	21.44	21.44	105	41	34.93
-20	DAJCM4364-2016B	1-5/8"-12	20	20	122	42	42.86
-20	DAJCM4364-2020B	1-5/8"-12	26	26	126	44	42.86
-20	DAJCM4364-2024B	1-5/8"-12	27.38	27.38	118	46	42.86
-24	DAJCM4364-2420B	1-7/8"-12	26	26	125	36	50.8
