Location: Home Fluid Connector Hydraulic Flange & AdaptorDAJCM4364

DAJCM4364 45° Forged Elbow JIC Male 74° – Flange SAE Code 62

DCompanyDME
AProduct RangeAdaptor
JCThread TypesJIC
MConnection TypeMale
4Adaptor Structure45° Elbow
3Adaptor TypeFlange
6Flange SeriesSAE Code 62
4Flange Head TypeSlip Flange Head

A drawing of DAJCM4364 hydraulic adaptor.

A 3D drawing of DAJCM4364 hydraulic adaptor.

A model drawing of DAJCM4364 hydraulic adaptor.

DME&JDE Code: DAJCM4364
Product Type: hydraulic adaptor, flange
Standard: JIC
Structure: 45° Forged Elbows
Connection Types: Male × Flange SAE Code 62
Thread Types: JIC 74° Cone × SAE Code 62 Flange

Technical Data of DAJCM4364

-12
-16
-20
-24
-32

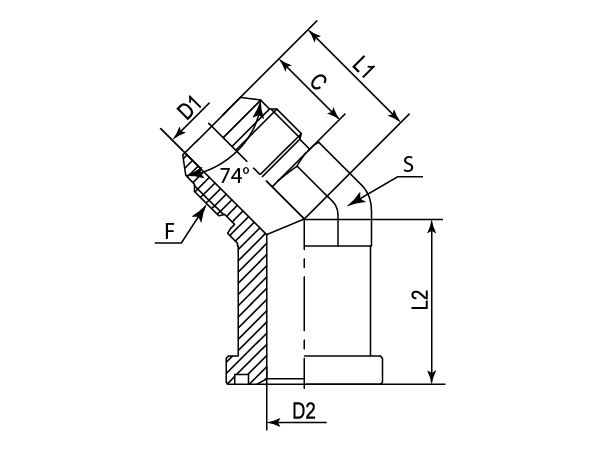

A drawing of DAJCM4364 flange adaptor.

-	Part Number	F (Thread)	C	D1	D2	L1	L2	S
-	-	UNF	mm	mm	mm	mm	mm	mm
-01	DAJCM4364-1212	1-1/16"-12	24.5	15.52	15.52	32.5	40.5	27
-16	DAJCM4364-1616	1-5/16"-12	23.14	21.44	21.44	38	47	33.3
-20	DAJCM4364-2020	1-5/8"-12	25	27.38	27.38	40.4	51.8	41.28
-24	DAJCM4364-2424	1-7/8"-12	29.5	33.48	33.48	45	60.5	47.63
-32	DAJCM4364-3232	2-1/2"-12	35	45.24	45.24	56.39	76.5	63.5
