Location: Home Fluid Connector Hydraulic Flange & AdaptorDAJCM4334

DAJCM4334 45° Forged Elbows JIC Male 74° – Flange SAE Code 61

DCompanyDME
AProduct RangeAdaptor
JCThread TypesJIC
MConnection TypeMale
4Adaptor Structure45° Elbow
3Adaptor TypeFlange
3Flange SeriesSAE Code 61
4Flange Head TypeSlip Flange Head

A drawing of DAJCM4334 hydraulic adaptor.

A 3D drawing of DAJCM4334 hydraulic adaptor.

A model drawing of DAJCM4334 hydraulic adaptor.

DME&JDE Code: DAJCM4334
Product Type: hydraulic adaptor, flange
Standard: JIC
Structure: 45° Forged Elbow
Connection Types: Male × Flange SAE Code 61
Thread Types: JIC 74° Cone × SAE Code 61 Flange

Technical Data of DAJCM4334

-12
-16
-20
-24
-32

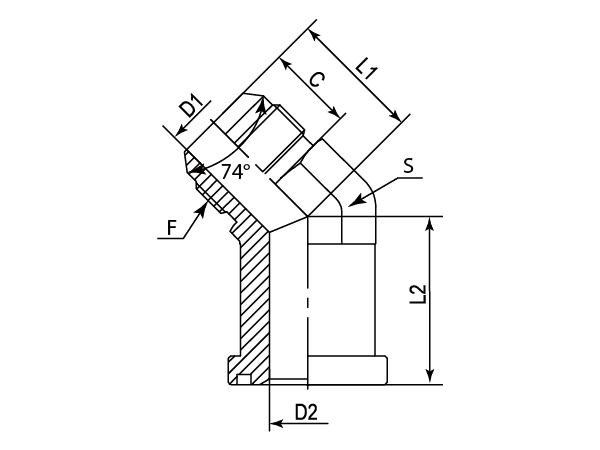

A drawing of DAJCM4334 flange adaptor.

-	Part Number	F (Thread)	C	D1	D2	L1	L2	S
-	-	UNF	mm	mm	mm	mm	mm	mm
-01	DAJCM4334-1212	1-1/16"-12	29.50	33.48	33.48	45.00	60.50	47.63
-01	DAJCM4334-1216	1-1/16"-12	24.33	15.52	21.44	37.30	47.00	33.30
-16	DAJCM4334-1616	1-5/16"-12	24.33	21.44	21.44	37.30	47.00	33.30
-16	DAJCM4334-1624	1-5/16"-12	24.33	21.44	33.48	41.50	60.50	47.63
-20	DAJCM4334-2020	1-5/8"-12	25.00	27.38	27.38	40.38	51.82	41.28
-24	DAJCM4334-2424	1-7/8"-12	29.50	33.48	33.48	45.00	60.50	47.63
-32	DAJCM4334-3232	2-1/2"-12	35.00	45.24	45.24	56.39	76.20	63.50
