DAJCM9334 90° Forged Elbow JIC Male 74° – Flange SAE Code 61

  • DCompanyDME
  • AProduct RangeAdaptor
  • JCThread TypesJIC
  • MConnection TypeMale
  • 9Adaptor Structure90° Elbow
  • 3Adaptor TypeFlange
  • 3Flange SeriesSAE Code 61
  • 4Flange Head TypeSlip Flange Head
  • DME&JDE Code: DAJCM9334
  • Product Type: hydraulic adaptor, flange
  • Standard: JIC
  • Structure: 90° Forged Elbow
  • Connection Types: Male × Flange SAE Code 61
  • Thread Types: JIC 74° Cone × SAE Code 61 Flange
Technical Data of DAJCM9334
  • -08
  • -12
  • -16
  • -20
  • -24
  • -32

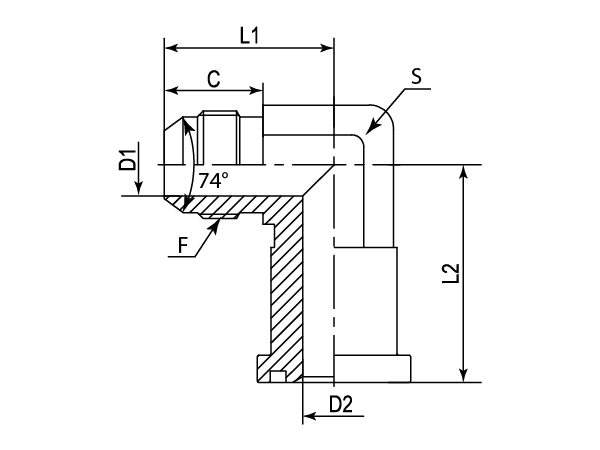

A drawing of DAJCM9334 flange adaptor.
- Part Number F (Thread) C D1 D2 L1 L2 S
- - UNF mm mm mm mm mm mm
-01 DAJCM9334-0808 3/4"-16 16.7 10 10 37.08 54.1 22.23
-01 DAJCM9334-0812 3/4"-16 24.5 10.01 15.52 42.16 54.1 27
-12 DAJCM9334-1212 1-1/16"-12 24.5 15.52 15.52 42.16 54.1 26.97
-12 DAJCM9334-1216 1-1/16"-12 24.5 15.52 21.44 46 60.2 33.33
-12 DAJCM9334-1220 1-1/16"-12 24.5 15.52 27.38 50.04 66.55 41.28
-12 DAJCM9334-1224 1-1/16"-12 29.5 15.52 33.48 59.2 80 47.63
-16 DAJCM9334-1612 1-5/16"-12 24.5 15.52 15.52 42.2 54.1 27
-16 DAJCM9334-1616 1-5/16"-12 24.33 21.44 21.44 45.97 60.2 33.33
-16 DAJCM9334-1620 1-5/16"-12 24.33 21.44 27.38 52.32 66.55 41.27
-16 DAJCM9334-1624 1-5/16"-12 25 21.44 33.48 59.18 80.01 47.63
-20 DAJCM9334-2016 1-5/8"-12 24.33 21.44 21.44 45.97 60.2 33.35
-20 DAJCM9334-2020 1-5/8"-12 25 27.38 27.38 52.32 66.55 41.28
-20 DAJCM9334-2024 1-5/8"-12 29.5 27.38 33.48 59.2 80 47.6
-24 DAJCM9334-2420 1-7/8"-12 27.5 27.38 27.38 52.3 66.6 41.27
-24 DAJCM9334-2424 1-7/8"-12 29.5 33.48 33.48 59.18 80 47.63
-24 DAJCM9334-2432 1-7/8"-12 35 33.48 45.24 77.7 107.95 63.5
-32 DAJCM9334-3224 2-1/2"-12 33.9 33.48 33.48 65.5 80 47.6
-32 DAJCM9334-3232 2-1/2"-12 35 45.24 45.24 77.72 107.95 63.5
-32 DAJCM9334-3240 2-1/2"-12 33.86 45.24 45.24 77.72 107.95 63.5
