Location: Home Fluid Connector Hydraulic Flange & AdaptorDABPM1364

DABPM1364 Straight Connector BSPP Male 60° – Flange SAE Code 62

DCompanyDME
AProduct RangeAdaptor
BPThread TypesBSPP
MConnection TypeMale
1Adaptor StructureStraight
3Adaptor TypeFlange
6Flange SerieseSAE Code 62
4Flange Head TypeSlip Flange Head

A drawing of DABPM1364 hydraulic adaptor.

A 3D drawing of DABPM1364 hydraulic adaptor.

A model drawing of DABPM1364 hydraulic adaptor.

DME&JDE Code: DABPM1364
Product Type: hydraulic adaptor, flange
Standard: BSPP
Structure: Straight
Connection Types: Male × Flange SAE Code 62
Thread Types: BSPP 60° Cone × SAE Code 62 Flange

Technical Data of DABPM1364

-08
-12
-16
-20
-24
-32

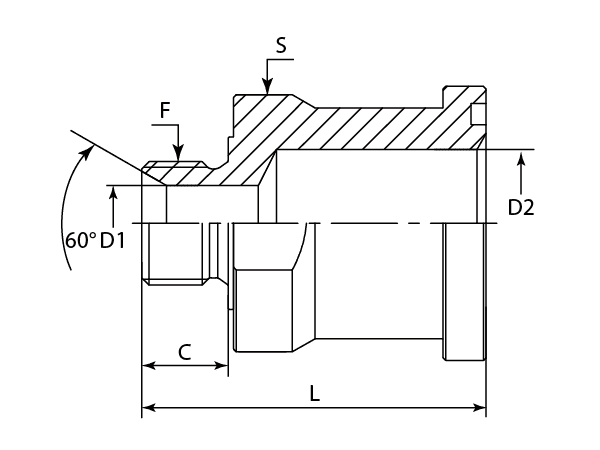

A drawing of DABPM1364 flange adaptor.

-	Part Number	F (Thread)	C	D1	D2	L	S
-	-	BSPP	mm	mm	mm	mm	mm
-01	DABPM1364-0808	1/2"-14	14	10	10	64.35	28.5
-12	DABPM1364-1212	3/4"-14	16	16.7	16.7	63.9	34.85
-12	DABPM1364-1220	3/4"-14	16	16.7	27.38	70.2	44.37
-16	DABPM1364-1616	1"-11	19	22.2	22.2	68	41.2
-20	DABPM1364-2020	1-1/4"-11	20	28.6	28.6	74.2	50
-24	DABPM1364-2424	1-1/2"-11	22	33.3	33.3	86.6	55
-32	DABPM1364-3232	2"-11	25	46	46	99.5	67
-32	DABPM1364-3240	2"-11	25	46	46	95	70
