* Filter the F1 Thread through selecting the -XX options

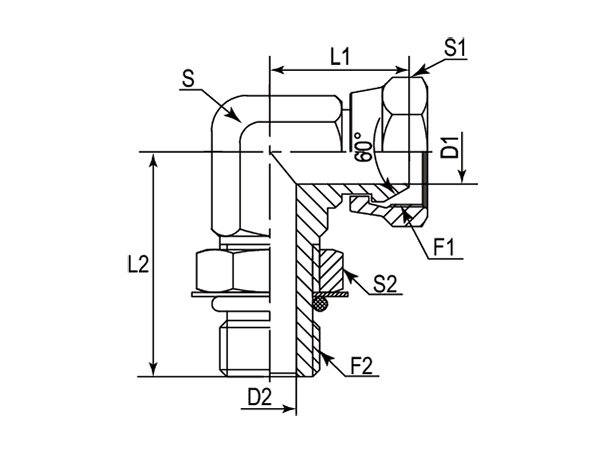

| - | Part Number | F1 (Thread) | F2 (Thread) | D1 | D2 | L1 | L2 | S | S1 | S2 |
|---|---|---|---|---|---|---|---|---|---|---|
| - | - | NPSM | BSPP | mm | mm | mm | mm | mm | mm | mm |
| -01 | DANPS906Q-0202 | 1/8"-27 | 1/8"-28 | 2.79 | 4.40 | 17.80 | 26.00 | 11.00 | 14.27 | 14.00 |
| -01 | DANPS906Q-0204 | 1/8"-27 | 1/4"-19 | 2.79 | 7.50 | 20.60 | 31.50 | 14.00 | 14.27 | 19.00 |
| -04 | DANPS906Q-0402 | 1/4"-18 | 1/8"-28 | 5.33 | 4.40 | 20.14 | 28.00 | 14.00 | 17.48 | 14.00 |
| -04 | DANPS906Q-0404 | 1/4"-18 | 1/4"-19 | 5.33 | 7.50 | 20.14 | 31.50 | 14.00 | 17.48 | 19.00 |
| -04 | DANPS906Q-0406 | 1/4"-18 | 3/8"-19 | 5.33 | 9.90 | 24.63 | 36.50 | 19.00 | 17.48 | 22.00 |
| -06 | DANPS906Q-0604 | 3/8"-18 | 1/4"-19 | 8.13 | 7.50 | 22.86 | 31.50 | 14.00 | 22.23 | 19.00 |
| -06 | DANPS906Q-0606 | 3/8"-18 | 3/8"-19 | 8.13 | 9.90 | 25.20 | 36.50 | 19.00 | 22.23 | 22.00 |
| -08 | DANPS906Q-0806 | 1/2"-14 | 3/8"-19 | 11.18 | 9.90 | 26.41 | 36.50 | 19.00 | 25.40 | 22.00 |
| -08 | DANPS906Q-0808 | 1/2"-14 | 1/2"-14 | 11.18 | 12.30 | 28.19 | 43.00 | 22.00 | 25.40 | 27.00 |
| -12 | DANPS906Q-1208 | 3/4"-14 | 1/2"-14 | 15.49 | 12.30 | 32.50 | 45.50 | 27.00 | 31.75 | 27.00 |
| -12 | DANPS906Q-1212 | 3/4"-14 | 3/4"-14 | 15.49 | 15.50 | 32.50 | 49.00 | 27.00 | 31.75 | 36.00 |
| -16 | DANPS906Q-1612 | 1"-11-1/2 | 3/4"-14 | 19.81 | 15.50 | 39.12 | 52.00 | 33.00 | 38.10 | 36.00 |
| -16 | DANPS906Q-1616 | 1"-11-1/2 | 1"-11 | 19.81 | 21.50 | 39.12 | 52.00 | 33.00 | 38.10 | 41.00 |
| -20 | DANPS906Q-2016 | 1-1/4''-11-1/2 | 1"-11 | 25.65 | 21.50 | 45.20 | 57.00 | 41.00 | 47.63 | 41.00 |
| -20 | DANPS906Q-2020 | 1-1/4''-11-1/2 | 1-1/4''-11 | 25.65 | 27.50 | 45.20 | 57.00 | 41.00 | 47.63 | 50.00 |
| -24 | DANPS906Q-2420 | 1-1/2''-11-1/2 | 1-1/4''-11 | 31.75 | 27.50 | 48.00 | 61.00 | 48.00 | 53.98 | 50.00 |
| -24 | DANPS906Q-2424 | 1-1/2''-11-1/2 | 1-1/2''-11 | 31.75 | 33.00 | 48.00 | 61.00 | 48.00 | 53.98 | 55.00 |
| -32 | DANPS906Q-3224 | 2"-11-1/2 | 1-1/2''-11 | 43.69 | 33.00 | 61.60 | 75.00 | 63.50 | 66.68 | 55.00 |
| -32 | DANPS906Q-3232 | 2"-11-1/2 | 2"-11 | 43.69 | 45.00 | 61.60 | 75.00 | 63.50 | 66.68 | 70.00 |
