* Filter the F1 Thread through selecting the -XX options

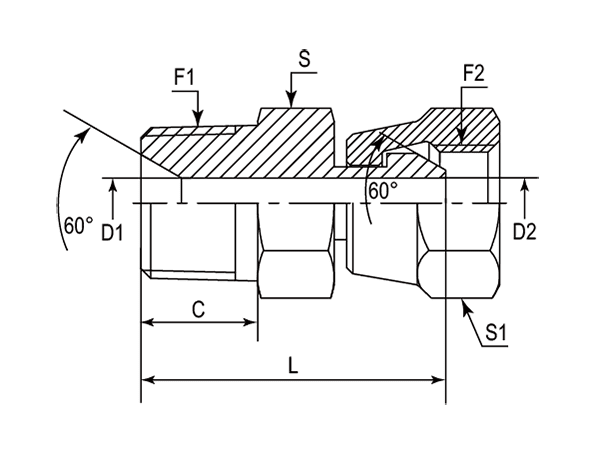

| - | Part Number | F1 (Thread) | F2 (Thread) | C | D1 | D2 | L | S | S1 |
|---|---|---|---|---|---|---|---|---|---|
| - | - | NPTF | BSPP | mm | mm | mm | mm | mm | |
| -01 | DANPM1081-0202 | 1/8"-27 | 1/8"-28 | 9.65 | 3.50 | 3.50 | 27.00 | 14 | 14 |
| -04 | DANPM1081-0404 | 1/4"-18 | 1/4"-19 | 14.22 | 7.14 | 4.70 | 34.00 | 17 | 19 |
| -04 | DANPM1081-0406 | 1/4"-18 | 3/8"-19 | 14.22 | 7.14 | 7.90 | 34.50 | 19 | 22 |
| -06 | DANPM1081-0604 | 3/8"-18 | 1/4"-19 | 14.22 | 10.31 | 4.70 | 33.50 | 19 | 19 |
| -06 | DANPM1081-0606 | 3/8"-18 | 3/8"-19 | 14.22 | 10.31 | 7.90 | 34.50 | 19 | 22 |
| -06 | DANPM1081-0608 | 3/8"-18 | 1/2"-14 | 14.22 | 10.31 | 11.10 | 38.00 | 22 | 27 |
| -08 | DANPM1081-0806 | 1/2"-14 | 3/8"-19 | 19.05 | 13.49 | 15.20 | 39.50 | 22 | 22 |
| -08 | DANPM1081-0808 | 1/2"-14 | 1/2"-14 | 19.05 | 13.49 | 11.10 | 43.00 | 22 | 27 |
| -12 | DANPM1081-1208 | 3/4"-14 | 1/2"-14 | 19.05 | 18.26 | 11.10 | 45.50 | 30 | 27 |
| -12 | DANPM1081-1212 | 3/4"-14 | 3/4"-14 | 19.05 | 18.26 | 16.70 | 49.00 | 32 | 32 |
| -12 | DANPM1081-1216 | 3/4"-14 | 1"-11 | 19.05 | 18.26 | 22.20 | 51.50 | 38 | 41 |
| -16 | DANPM1081-1612 | 1"-11-1/2 | 3/4"-14 | 23.88 | 23.83 | 16.70 | 54.00 | 36 | 32 |
| -16 | DANPM1081-1616 | 1"-11-1/2 | 1"-11 | 23.88 | 23.83 | 22.20 | 56.50 | 38 | 41 |
| -20 | DANPM1081-2020 | 1-1/4"-11-1/2 | 1-1/4"-11-1/2 | 24.64 | 31.75 | 28.60 | 60.50 | 46 | 50 |
