Location: Home Fluid Connector Hydraulic Adaptors NPTFDANPF128F

DANPF128F Hexagon Straight Coupling NPTF Female - NPTF Female

DCompanyDME
AProduct RangeAdaptor
NPThread TypesNPTF
FConnection TypeFemale
1Adaptor StructureHexagon Straight
28Thread TypesNPTF
FConnection TypeFemale

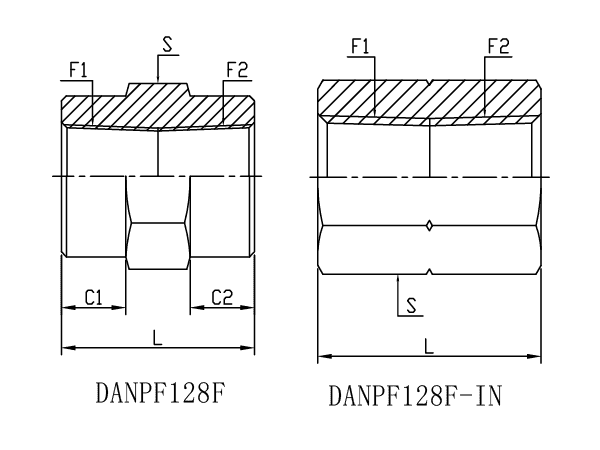

A drawing of DANPF128F hydraulic adaptor.

A 3D drawing of DANPF128F hydraulic adaptor.

A model drawing of DANPF128F hydraulic adaptor.

DME&JDE Code: DANPF128F
Product Type: hydraulic adaptor
Standard: NPTF
Connection Type: Female × Female
Thread Types: NPTF × NPTF
Sealing Method: O Rings
Other Features: Hexagon

Technical Data of DANPF128F

-02
-04
-06
-08
-12
-16
-20
-24
-32

* Filter the F1 Thread through selecting the -XX options

-	Part Number	F1 (Thread)	F2 (Thread)	C1	C2	L	S	Hex
-	-	NPTF	NPTF	mm	mm	mm	-	-
-01	DANPF128F-0202	1/8"-27	1/8"-27	6.35	6.35	19.05	17 mm	Metric
-01	DANPF128F-0202IN	1/8"-27	1/8"-27	6.35	6.35	19.05	5/8"	Imperial
-04	DANPF128F-0402	1/4"-18	1/8"-27	10.92	10.92	28.70	19 mm	Metric
-04	DANPF128F-0404	1/4"-18	1/4"-18	10.92	10.92	28.70	19 mm	Metric
-04	DANPF128F-0402IN	1/4"-18	1/8"-27	10.92	10.92	28.70	3/4"	Imperial
-04	DANPF128F-0404IN	1/4"-18	1/4"-18	10.92	10.92	28.70	3/4"	Imperial
-06	DANPF128F-0602	3/8"-18	1/8"-27	10.92	10.92	28.70	22 mm	Metric
-06	DANPF128F-0604	3/8"-18	1/4"-18	10.90	10.90	28.70	22 mm	Metric
-06	DANPF128F-0606	3/8"-18	3/8"-18	10.92	10.92	28.70	22 mm	Metric
-06	DANPF128F-0602IN	3/8"-18	1/8"-27	10.92	10.92	28.70	7/8"	Imperial
-06	DANPF128F-0604IN	3/8"-18	1/4"-18	10.90	10.90	28.70	7/8"	Imperial
-06	DANPF128F-0606IN	3/8"-18	3/8"-18	10.92	10.92	28.70	7/8"	Imperial
-08	DANPF128F-0802	1/2"-14	1/8"-27	14.22	14.22	38.10	27 mm	Metric
-08	DANPF128F-0804	1/2"-14	1/4"-18	14.22	14.22	38.10	27 mm	Metric
-08	DANPF128F-0806	1/2"-14	3/8"-18	14.22	14.22	38.10	27 mm	Metric
-08	DANPF128F-0808	1/2"-14	1/2"-14	14.22	14.22	38.10	27 mm	Metric
-08	DANPF128F-0802IN	1/2"-14	1/8"-27	14.22	14.22	38.10	1-1/8"	Imperial
-08	DANPF128F-0804IN	1/2"-14	1/4"-18	14.22	14.22	38.10	1-1/8"	Imperial
-08	DANPF128F-0806IN	1/2"-14	3/8"-18	14.22	14.22	38.10	1-1/8"	Imperial
-08	DANPF128F-0808IN	1/2"-14	1/2"-14	14.22	14.22	38.10	1-1/8"	Imperial
-12	DANPF128F-1204	3/4"-14	1/4"-18	14.22	14.22	38.90	36 mm	Metric
-12	DANPF128F-1206	3/4"-14	3/8"-18	14.22	14.22	38.90	36 mm	Metric
-12	DANPF128F-1208	3/4"-14	1/2"-14	14.22	14.22	38.90	36 mm	Metric
-12	DANPF128F-1212	3/4"-14	3/4"-14	14.22	14.22	38.86	36 mm	Metric
-12	DANPF128F-1204IN	3/4"-14	1/4"-18	14.22	14.22	38.90	1-3/8"	Imperial
-12	DANPF128F-1206IN	3/4"-14	3/8"-18	14.22	14.22	38.90	1-3/8"	Imperial
-12	DANPF128F-1208IN	3/4"-14	1/2"-14	14.22	14.22	38.90	1-3/8"	Imperial
-12	DANPF128F-1212IN	3/4"-14	3/4"-14	14.22	14.22	38.86	1-3/8"	Imperial
-16	DANPF128F-1606	1"-11-1/2	3/8"-18	17.53	17.53	48.00	41 mm	Metric
-16	DANPF128F-1608	1"-11-1/2	1/2"-14	17.53	17.53	48.00	41 mm	Metric
-16	DANPF128F-1612	1"-11-1/2	3/4"-14	17.53	17.53	48.00	41 mm	Metric
-16	DANPF128F-1616	1"-11-1/2	1"-11-1/2	17.53	17.53	48.01	41 mm	Metric
-16	DANPF128F-1606IN	1"-11-1/2	3/8"-18	17.53	17.53	48.00	1-5/8"	Imperial
-16	DANPF128F-1608IN	1"-11-1/2	1/2"-14	17.53	17.53	48.00	1-5/8"	Imperial
-16	DANPF128F-1612IN	1"-11-1/2	3/4"-14	17.53	17.53	48.00	1-5/8"	Imperial
-16	DANPF128F-1616IN	1"-11-1/2	1"-11-1/2	17.53	17.53	48.01	1-5/8"	Imperial
-20	DANPF128F-2012	1-1/4"-11-1/2	3/4"-14	17.53	17.53	49.00	50 mm	Metric
-20	DANPF128F-2016	1-1/4"-11-1/2	1"-11-1/2	17.53	17.53	49.00	50 mm	Metric
-20	DANPF128F-2020	1-1/4"-11-1/2	1-1/4"-11-1/2	17.50	17.50	49.02	50 mm	Metric
-20	DANPF128F-2012IN	1-1/4"-11-1/2	3/4"-14	17.53	17.53	49.00	2"	Imperial
-20	DANPF128F-2016IN	1-1/4"-11-1/2	1"-11-1/2	17.53	17.53	49.00	2"	Imperial
-20	DANPF128F-2020IN	1-1/4"-11-1/2	1-1/4"-11-1/2	17.50	17.50	49.02	2"	Imperial
-24	DANPF128F-2416	1-1/2"-11-1/2	1-11-1/2	17.53	17.53	49.02	60 mm	Metric
-24	DANPF128F-2420	1-1/2"-11-1/2	1-1/4"-11-1/2	17.53	17.53	49.02	60 mm	Metric
-24	DANPF128F-2424	1-1/2"-11-1/2	1-1/2"-11-1/2	17.50	17.50	49.02	60 mm	Metric
-24	DANPF128F-2416IN	1-1/2"-11-1/2	1-11-1/2	17.53	17.53	49.02	2-3/8"	Imperial
-24	DANPF128F-2420IN	1-1/2"-11-1/2	1-1/4"-11-1/2	17.53	17.53	49.02	2-3/8"	Imperial
-24	DANPF128F-2424IN	1-1/2"-11-1/2	1-1/2"-11-1/2	17.50	17.50	49.02	2-3/8"	Imperial
-32	DANPF128F-3224	2"-11-1/2	1-1/2"-11-1/2	16.00	16.00	49.78	73 mm	Metric
-32	DANPF128F-3232	2"-11-1/2	2"-11-1/2	16.00	16.00	49.78	73 mm	Metric
-32	DANPF128F-3224IN	2"-11-1/2	1-1/2"-11-1/2	16.00	16.00	49.78	2-7/8"	Imperial
-32	DANPF128F-3232IN	2"-11-1/2	2"-11-1/2	16.00	16.00	49.78	2-7/8"	Imperial
