* Filter the F1 Thread through selecting the -XX options

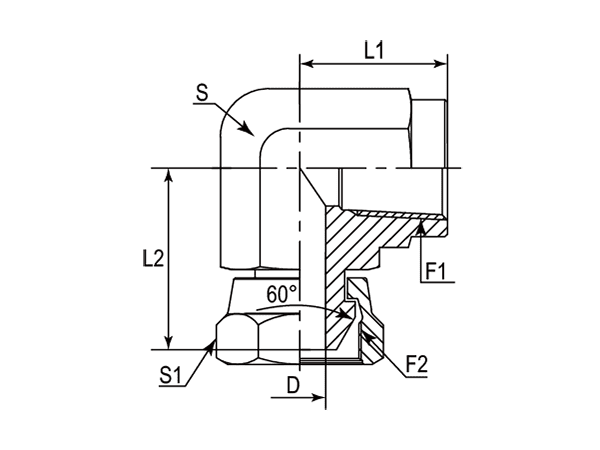

| - | Part Number | F1 (Thread) | F2 (Thread) | L1 | L2 | D | S | S1 | Hex |
|---|---|---|---|---|---|---|---|---|---|
| - | - | NPTF | NPSM | mm | mm | mm | - | - | - |
| -01 | DANPF9091-0202 | 1/8"-27 | 1/8"-27 | 16.76 | 20.32 | 2.79 | 14 mm | 14 mm | Metric |
| -01 | DANPF9091-0204 | 1/8"-27 | 1/4"-18 | 16.80 | 20.14 | 5.33 | 14 mm | 19 mm | Metric |
| -01 | DANPF9091-0202IN | 1/8"-27 | 1/8"-27 | 16.76 | 20.32 | 2.79 | 9/16" | 9/16" | Imperial |
| -01 | DANPF9091-0204IN | 1/8"-27 | 1/4"-18 | 16.80 | 20.14 | 5.33 | 9/16" | 11/16" | Imperial |
| -04 | DANPF9091-0402 | 1/4"-18 | 1/8"-27 | 22.40 | 22.35 | 2.79 | 19 mm | 14 mm | Metric |
| -04 | DANPF9091-0404 | 1/4"-18 | 1/4"-18 | 22.40 | 25.00 | 5.33 | 19 mm | 19 mm | Metric |
| -04 | DANPF9091-0406 | 1/4"-18 | 3/8"-18 | 22.40 | 25.65 | 8.13 | 19 mm | 22 mm | Metric |
| -04 | DANPF9091-0402IN | 1/4"-18 | 1/8"-27 | 22.40 | 22.35 | 2.79 | 3/4" | 9/16" | Imperial |
| -04 | DANPF9091-0404IN | 1/4"-18 | 1/4"-18 | 22.40 | 25.00 | 5.33 | 3/4" | 11/16" | Imperial |
| -04 | DANPF9091-0406IN | 1/4"-18 | 3/8"-18 | 22.40 | 25.65 | 8.13 | 3/4" | 7/8" | Imperial |
| -06 | DANPF9091-0606 | 3/8"-18 | 3/8"-18 | 25.90 | 26.92 | 8.13 | 22 mm | 22 mm | Metric |
| -06 | DANPF9091-0608 | 3/8"-18 | 1/2"-14 | 25.90 | 28.70 | 11.18 | 22 mm | 27 mm | Metric |
| -06 | DANPF9091-0606IN | 3/8"-18 | 3/8"-18 | 25.90 | 26.92 | 8.13 | 7/8" | 7/8" | Imperial |
| -06 | DANPF9091-0608IN | 3/8"-18 | 1/2"-14 | 25.90 | 28.70 | 11.18 | 7/8" | 1" | Imperial |
| -08 | DANPF9091-0804 | 1/2"-14 | 1/4"-18 | 31.20 | 29.50 | 5.33 | 27 mm | 19 mm | Metric |
| -08 | DANPF9091-0806 | 1/2"-14 | 3/8"-18 | 31.20 | 30.50 | 8.13 | 27 mm | 22 mm | Metric |
| -08 | DANPF9091-0808 | 1/2"-14 | 1/2"-14 | 31.20 | 31.40 | 11.18 | 27 mm | 27 mm | Metric |
| -08 | DANPF9091-0812 | 1/2"-14 | 3/4"-14 | 31.20 | 31.50 | 15.49 | 27 mm | 32 mm | Metric |
| -08 | DANPF9091-0804IN | 1/2"-14 | 1/4"-18 | 31.20 | 29.50 | 5.33 | 1-1/16" | 11/16" | Imperial |
| -08 | DANPF9091-0806IN | 1/2"-14 | 3/8"-18 | 31.20 | 30.50 | 8.13 | 1-1/16" | 7/8" | Imperial |
| -08 | DANPF9091-0808IN | 1/2"-14 | 1/2"-14 | 31.20 | 31.40 | 11.18 | 1-1/16" | 1" | Imperial |
| -08 | DANPF9091-0812IN | 1/2"-14 | 3/4"-14 | 31.20 | 31.50 | 15.49 | 1-1/16" | 1-1/4" | Imperial |
| -12 | DANPF9091-1208 | 3/4"-14 | 1/2"-14 | 34.50 | 37.30 | 11.18 | 33 mm | 27 mm | Metric |
| -12 | DANPF9091-1212 | 3/4"-14 | 3/4"-14 | 34.50 | 37.30 | 15.50 | 33 mm | 32 mm | Metric |
| -12 | DANPF9091-1216 | 3/4"-14 | 1"-11-1/2 | 34.56 | 37.73 | 19.81 | 33 mm | 41 mm | Metric |
| -12 | DANPF9091-1208IN | 3/4"-14 | 1/2"-14 | 34.50 | 37.30 | 11.18 | 1-5/16" | 1" | Imperial |
| -12 | DANPF9091-1212IN | 3/4"-14 | 3/4"-14 | 34.50 | 37.30 | 15.50 | 1-5/16" | 1-1/4" | Imperial |
| -12 | DANPF9091-1216IN | 3/4"-14 | 1"-11-1/2 | 34.56 | 37.73 | 19.81 | 1-5/16" | 1-1/2" | Imperial |
| -16 | DANPF9091-1612 | 1"-11-1/2 | 3/4"-14 | 41.20 | 41.20 | 15.49 | 41 mm | 32 mm | Metric |
| -16 | DANPF9091-1616 | 1"-11-1/2 | 1"-11-1/2 | 41.20 | 43.90 | 19.81 | 41 mm | 41 mm | Metric |
| -16 | DANPF9091-1612IN | 1"-11-1/2 | 3/4"-14 | 41.20 | 41.20 | 15.49 | 1-5/8" | 1-1/4" | Imperial |
| -16 | DANPF9091-1616IN | 1"-11-1/2 | 1"-11-1/2 | 41.20 | 43.90 | 19.81 | 1-5/8" | 1-1/2" | Imperial |
| -20 | DANPF9091-2016 | 1-1/4"-11-1/2 | 1"-11-1/2 | 43.20 | 46.00 | 19.81 | 50 mm | 41 mm | Metric |
| -20 | DANPF9091-2020 | 1-1/4"-11-1/2 | 1-1/4"-11-1/2 | 43.20 | 46.50 | 25.65 | 50 mm | 50 mm | Metric |
| -20 | DANPF9091-2016IN | 1-1/4"-11-1/2 | 1"-11-1/2 | 43.20 | 46.00 | 19.81 | 1-7/8" | 1-1/2" | Imperial |
| -20 | DANPF9091-2020IN | 1-1/4"-11-1/2 | 1-1/4"-11-1/2 | 43.20 | 46.50 | 25.65 | 1-7/8" | 1-7/8" | Imperial |
| -24 | DANPF9091-2424 | 1-1/2"-11-1/2 | 1-1/2"-11-1/2 | 52.80 | 61.21 | 31.75 | 65 mm | 55 mm | Metric |
| -24 | DANPF9091-2424IN | 1-1/2"-11-1/2 | 1-1/2"-11-1/2 | 52.80 | 61.21 | 31.75 | 2-9/16" | 2-1/8" | Imperial |
| -32 | DANPF9091-3232 | 2"-11-1/2 | 2"-11-1/2 | 60.70 | 65.28 | 43.69 | 70 mm | 65 mm | Metric |
| -32 | DANPF9091-3232IN | 2"-11-1/2 | 2"-11-1/2 | 60.70 | 65.28 | 43.69 | 2-13/16" | 2-5/8" | Imperial |
