* Filter the F1 Thread through selecting the -XX options

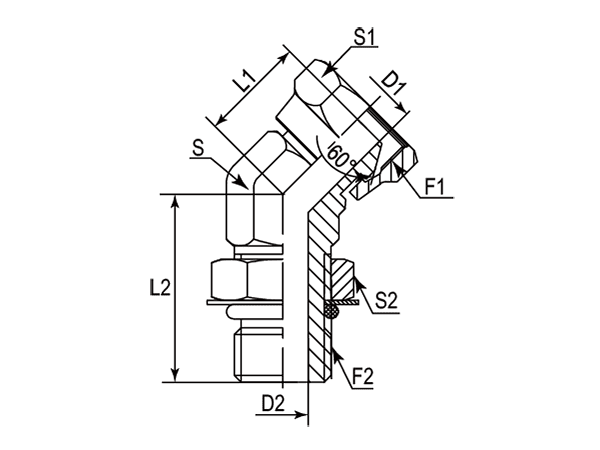

| - | Part Number | F1 (Thread) | F2 (Thread) | L1 | L2 | D1 | D2 | S | S1 | S2 | Hex |
|---|---|---|---|---|---|---|---|---|---|---|---|
| - | - | NPSM | UNF | mm | mm | mm | mm | - | - | - | - |
| -01 | DANPS4305-0404 | 1/4"-18 | 7/16"-20 | 15.50 | 26.70 | 5.33 | 4.37 | 14 mm | 19 mm | 14 mm | Metric |
| -01 | DANPS4305-0406 | 1/4"-18 | 9/16"-18 | 20.57 | 29.00 | 5.33 | 7.54 | 14 mm | 19 mm | 17 mm | Metric |
| -01 | DANPS4305-0408 | 1/4"-18 | 3/4"-16 | 20.07 | 33.00 | 5.33 | 9.93 | 19 mm | 19 mm | 22 mm | Metric |
| -01 | DANPS4305-0404IN | 1/4"-18 | 7/16"-20 | 15.50 | 26.70 | 5.33 | 4.37 | 9/16" | 11/16" | 9/16" | Imperial |
| -01 | DANPS4305-0406IN | 1/4"-18 | 9/16"-18 | 20.57 | 29.00 | 5.33 | 7.54 | 9/16" | 11/16" | 11/16" | Imperial |
| -01 | DANPS4305-0408IN | 1/4"-18 | 3/4"-16 | 20.07 | 33.00 | 5.33 | 9.93 | 3/4" | 11/16" | 7/8" | Imperial |
| -06 | DANPS4305-0604 | 3/8"-18 | 7/16"-20 | 18.96 | 26.16 | 8.13 | 4.37 | 14 mm | 22 mm | 14 mm | Metric |
| -06 | DANPS4305-0606 | 3/8"-18 | 9/16"-18 | 21.08 | 28.96 | 8.13 | 7.54 | 14 mm | 22 mm | 17 mm | Metric |
| -06 | DANPS4305-0608 | 3/8"-18 | 3/4"-16 | 20.57 | 33.00 | 8.13 | 9.93 | 19 mm | 22 mm | 22 mm | Metric |
| -06 | DANPS4305-0610 | 3/8"-18 | 7/8"-14 | 19.22 | 38.60 | 8.13 | 12.29 | 22 mm | 22 mm | 27 mm | Metric |
| -06 | DANPS4305-0612 | 3/8"-18 | 1-1/16"-12 | 23.80 | 43.90 | 8.13 | 15.47 | 27 mm | 22 mm | 32 mm | Metric |
| -06 | DANPS4305-0604IN | 3/8"-18 | 7/16"-20 | 18.96 | 26.16 | 8.13 | 4.37 | 9/16" | 7/8" | 9/16" | Imperial |
| -06 | DANPS4305-0606IN | 3/8"-18 | 9/16"-18 | 21.08 | 28.96 | 8.13 | 7.54 | 9/16" | 7/8" | 11/16" | Imperial |
| -06 | DANPS4305-0608IN | 3/8"-18 | 3/4"-16 | 20.57 | 33.00 | 8.13 | 9.93 | 3/4" | 7/8" | 7/8" | Imperial |
| -06 | DANPS4305-0610IN | 3/8"-18 | 7/8"-14 | 19.22 | 38.60 | 8.13 | 12.29 | 7/8" | 7/8" | 1" | Imperial |
| -06 | DANPS4305-0612IN | 3/8"-18 | 1-1/16"-12 | 23.80 | 43.90 | 8.13 | 15.47 | 1-1/16" | 7/8" | 1-1/4" | Imperial |
| -08 | DANPS4305-0804 | 1/2"-14 | 7/16"-20 | 23.90 | 28.20 | 11.18 | 4.37 | 19 mm | 27 mm | 14 mm | Metric |
| -08 | DANPS4305-0808 | 1/2"-14 | 3/4"-16 | 22.61 | 33.00 | 11.18 | 9.93 | 19 mm | 27 mm | 22 mm | Metric |
| -08 | DANPS4305-0810 | 1/2"-14 | 7/8"-14 | 22.35 | 38.60 | 11.18 | 12.29 | 22 mm | 27 mm | 27 mm | Metric |
| -08 | DANPS4305-0812 | 1/2"-14 | 1-1/16"-12 | 25.90 | 43.90 | 11.18 | 15.47 | 27 mm | 27 mm | 32 mm | Metric |
| -08 | DANPS4305-0804IN | 1/2"-14 | 7/16"-20 | 23.90 | 28.20 | 11.18 | 4.37 | 3/4" | 1" | 9/16" | Imperial |
| -08 | DANPS4305-0808IN | 1/2"-14 | 3/4"-16 | 22.61 | 33.00 | 11.18 | 9.93 | 3/4" | 1" | 7/8" | Imperial |
| -08 | DANPS4305-0810IN | 1/2"-14 | 7/8"-14 | 22.35 | 38.60 | 11.18 | 12.29 | 7/8" | 1" | 1" | Imperial |
| -08 | DANPS4305-0812IN | 1/2"-14 | 1-1/16"-12 | 25.90 | 43.90 | 11.18 | 15.47 | 1-1/16" | 1" | 1-1/4" | Imperial |
| -10 | DANPS4305-1006 | 7/8"-14 | 9/16"-18 | 19.22 | 38.60 | 8.13 | 12.29 | 22 mm | 22 mm | 22 mm | Metric |
| -10 | DANPS4305-1008 | 7/8"-14 | 3/4"-16 | 22.35 | 38.60 | 11.18 | 12.29 | 22 mm | 22 mm | 27 mm | Metric |
| -10 | DANPS4305-1012 | 7/8"-14 | 1-1/16"-12 | 25.90 | 39.90 | 16.13 | 12.29 | 27 mm | 32 mm | 22 mm | Metric |
| -10 | DANPS4305-1006IN | 7/8"-14 | 9/16"-18 | 19.22 | 38.60 | 8.13 | 12.29 | 7/8" | 7/8" | 7/8" | Imperial |
| -10 | DANPS4305-1008IN | 7/8"-14 | 3/4"-16 | 22.35 | 38.60 | 11.18 | 12.29 | 7/8" | 7/8" | 1" | Imperial |
| -10 | DANPS4305-1012IN | 7/8"-14 | 1-1/16"-12 | 25.90 | 39.90 | 16.13 | 12.29 | 1-1/16" | 1-1/4" | 7/8" | Imperial |
| -12 | DANPS4305-1210 | 3/4"-14 | 7/8"-14 | 25.90 | 39.90 | 16.13 | 12.29 | 27 mm | 32 mm | 27 mm | Metric |
| -12 | DANPS4305-1212 | 3/4"-14 | 1-1/16"-12 | 25.90 | 43.90 | 15.49 | 15.47 | 27 mm | 32 mm | 32 mm | Metric |
| -12 | DANPS4305-1216 | 3/4"-14 | 1-5/16"-12 | 25.65 | 47.20 | 15.75 | 21.44 | 33 mm | 32 mm | 41 mm | Metric |
| -12 | DANPS4305-1210IN | 3/4"-14 | 7/8"-14 | 25.90 | 39.90 | 16.13 | 12.29 | 1-1/16" | 1-1/4" | 1" | Imperial |
| -12 | DANPS4305-1212IN | 3/4"-14 | 1-1/16"-12 | 25.90 | 43.90 | 15.49 | 15.47 | 1-1/16" | 1-1/4" | 1-1/4" | Imperial |
| -12 | DANPS4305-1216IN | 3/4"-14 | 1-5/16"-12 | 25.65 | 47.20 | 15.75 | 21.44 | 1-5/16" | 1-1/4" | 1-1/2" | Imperial |
| -16 | DANPS4305-1612 | 1"-11-1/2 | 1-1/16"-12 | 25.65 | 47.20 | 15.75 | 21.44 | 33 mm | 32 mm | 41 mm | Metric |
| -16 | DANPS4305-1616 | 1"-11-1/2 | 1-5/16"-12 | 29.21 | 47.20 | 19.81 | 21.44 | 33 mm | 41 mm | 41 mm | Metric |
| -16 | DANPS4305-1620 | 1"-11-1/2 | 1-5/8"-12 | 31.20 | 48.50 | 25.65 | 21.44 | 41 mm | 50 mm | 41 mm | Metric |
| -16 | DANPS4305-1612IN | 1"-11-1/2 | 1-1/16"-12 | 25.65 | 47.20 | 15.75 | 21.44 | 1-5/16" | 1-1/4" | 1-1/2" | Imperial |
| -16 | DANPS4305-1616IN | 1"-11-1/2 | 1-5/16"-12 | 29.21 | 47.20 | 19.81 | 21.44 | 1-5/16" | 1-1/2" | 1-1/2" | Imperial |
| -16 | DANPS4305-1620IN | 1"-11-1/2 | 1-5/8"-12 | 31.20 | 48.50 | 25.65 | 21.44 | 1-5/8" | 1-7/8" | 1-1/2" | Imperial |
| -20 | DANPS4305-2016 | 1-1/4"-11-1/2 | 1-5/16"-12 | 31.20 | 48.50 | 25.65 | 21.44 | 41 mm | 50 mm | 41 mm | Metric |
| -20 | DANPS4305-2020 | 1-1/4"-11-1/2 | 1-5/8"-12 | 31.25 | 48.50 | 25.65 | 27.38 | 41 mm | 50 mm | 50 mm | Metric |
| -20 | DANPS4305-2024 | 1-1/4"-11-1/2 | 1-7/8"-12 | 36.82 | 48.50 | 31.75 | 27.38 | 50 mm | 55 mm | 50 mm | Metric |
| -20 | DANPS4305-2016IN | 1-1/4"-11-1/2 | 1-5/16"-12 | 31.20 | 48.50 | 25.65 | 21.44 | 1-5/8" | 1-7/8" | 1-1/2" | Imperial |
| -20 | DANPS4305-2020IN | 1-1/4"-11-1/2 | 1-5/8"-12 | 31.25 | 48.50 | 25.65 | 27.38 | 1-5/8" | 1-7/8" | 1-7/8" | Imperial |
| -20 | DANPS4305-2024IN | 1-1/4"-11-1/2 | 1-7/8"-12 | 36.82 | 48.50 | 31.75 | 27.38 | 1-7/8" | 2-1/8" | 1-7/8" | Imperial |
| -24 | DANPS4305-2420 | 1-1/2"-11-1/2 | 1-5/8"-12 | 36.82 | 48.50 | 31.75 | 27.38 | 50 mm | 55 mm | 55 mm | Metric |
| -24 | DANPS4305-2424 | 1-1/2"-11-1/2 | 1-7/8"-12 | 34.30 | 48.51 | 31.75 | 33.32 | 50 mm | 55 mm | 55 mm | Metric |
| -24 | DANPS4305-2420IN | 1-1/2"-11-1/2 | 1-5/8"-12 | 36.82 | 48.50 | 31.75 | 27.38 | 1-7/8" | 2-1/8" | 2-1/8" | Imperial |
| -24 | DANPS4305-2424IN | 1-1/2"-11-1/2 | 1-7/8"-12 | 34.30 | 48.51 | 31.75 | 33.32 | 1-7/8" | 2-1/8" | 2-1/8" | Imperial |
