Location: Home Fluid Connector Hydraulic Adaptors NPTFDANPM1000

DANPM1000 NPTF Male Plug

DCompanyDME
AProduct RangeAdaptor
NPThread TypesNPTF
MConnection TypeMale
1Adaptor StructureStraight
000Other FeaturesNut/Plug

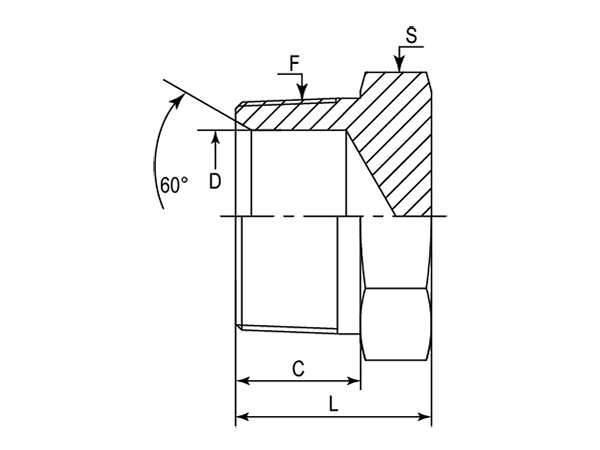

A drawing of DANPM1000 hydraulic adaptor.

A 3D drawing of DANPM1000 hydraulic adaptor.

A model drawing of DANPM1000 hydraulic adaptor.

DME&JDE Code: DANPM1000
Product Type: hydraulic adaptor
Standard: NPTF
Connection Type: Male
Thread types: NPTF
Other Features: Nut/Plug

Technical Data of DANPM1000

-02
-04
-06
-08
-12
-16
-20
-24
-32
-40

* Filter the F1 Thread through selecting the -XX options

Technical Data of DANPM1000
-	Part Number	F (Thread)	C	D	L	S	Hex
-	-	NPTF	mm	mm	mm	-	-
-01	DANPM1000-0200	1/8"-27	9.65	4.78	14.25	11 mm	Metric
-01	DANPM1000-0200IN	1/8"-27	9.65	4.78	14.25	7/16"	Imperial
-01	DANPM1000-0200 Without Hole	1/8"-27	9.65	N/A	14.25	7/16"	Imperial
-04	DANPM1000-0400	1/4"-18	14.22	7.14	18.82	14 mm	Metric
-04	DANPM1000-0400IN	1/4"-18	14.22	7.14	18.82	9/16"	Imperial
-04	DANPM1000-0400 Without Hole	1/4"-18	14.22	N/A	18.82	9/16"	Imperial
-06	DANPM1000-0600	3/8"-18	14.22	10.31	19.60	17 mm	Metric
-06	DANPM1000-0600IN	3/8"-18	14.22	10.31	19.60	11/16"	Imperial
-06	DANPM1000-0600 Without Hole	3/8"-18	14.22	N/A	19.60	11/16"	Imperial
-08	DANPM1000-0800	1/2"-14	19.05	13.49	24.44	22 mm	Metric
-08	DANPM1000-0800IN	1/2"-14	19.05	13.49	24.44	7/8"	Imperial
-08	DANPM1000-0800 Without Hole	1/2"-14	19.05	N/A	24.44	7/8"	Imperial
-12	DANPM1000-1200	3/4"-14	19.05	18.26	28.75	27 mm	Metric
-12	DANPM1000-1200IN	3/4"-14	19.05	18.26	28.75	1-1/8"	Imperial
-12	DANPM1000-1200 Without Hole	3/4"-14	19.05	N/A	28.75	1-1/8"	Imperial
-16	DANPM1000-1600	1"-11-1/2	23.88	23.83	34.58	36 mm	Metric
-16	DANPM1000-1600IN	1"-11-1/2	23.88	23.83	34.58	1-3/8"	Imperial
-16	DANPM1000-1600 Without Hole	1"-11-1/2	23.88	N/A	34.58	1-3/8"	Imperial
-20	DANPM1000-2000	1-1/4"-11-1/2	24.64	31.75	36.34	46 mm	Metric
-20	DANPM1000-2000IN	1-1/4"-11-1/2	24.64	31.75	36.34	1-3/4"	Imperial
-20	DANPM1000-2000 Without Hole	1-1/4"-11-1/2	24.64	N/A	36.34	1-3/4"	Imperial
-24	DANPM1000-2400	1-1/2"-11-1/2	25.40	38.10	39.90	50 mm	Metric
-24	DANPM1000-2400IN	1-1/2"-11-1/2	25.40	38.10	39.90	2"	Imperial
-24	DANPM1000-2400 Without Hole	1-1/2"-11-1/2	25.40	N/A	39.90	2"	Imperial
-32	DANPM1000-3200	2"-11-1/2	26.16	49.23	43.50	60 mm	Metric
-32	DANPM1000-3200IN	2"-11-1/2	26.16	49.23	43.50	2-1/2"	Imperial
-32	DANPM1000-3200 Without Hole	2"-11-1/2	26.16	N/A	43.50	2-1/2"	Imperial
-40	DANPM1000-4000	2-1/2"-8	38.86	59.00	57.50	85 mm	Metric
-40	DANPM1000-4000IN	2-1/2"-8	38.86	59.00	57.50	3-1/4"	Imperial
-40	DANPM1000-4000 Without Hole	2-1/2"-8	38.86	N/A	57.50	3-1/4"	Imperial

DANPM1000 NPTF Male Plug

DCompanyDME
AProduct RangeAdaptor
NPThread TypesNPTF
MConnection TypeMale
1Adaptor StructureStraight
000Other FeaturesNut/Plug

DME&JDE Code: DANPM1000
Product Type: hydraulic adaptor
Standard: NPTF
Connection Type: Male
Thread types: NPTF
Other Features: Nut/Plug

Technical Data of DANPM1000

-02
-04
-06
-08
-12
-16
-20
-24
-32

* Filter the F1 Thread through selecting the -XX options

Technical Data of DANPM1000
-	Part Number	F (Thread)	C	D	L	S	Hex
-	-	NPTF	mm	mm	mm	-	-
-01	DANPM1000-0200	1/8"-27	9.65	4.78	14.25	11 mm	Metric
-01	DANPM1000-0200IN	1/8"-27	9.65	4.78	14.25	7/16"	Imperial
-01	DANPM1000-0200 Without Hole	1/8"-27	9.65	N/A	14.25	7/16"	Imperial
-04	DANPM1000-0400	1/4"-18	14.22	7.14	18.82	14 mm	Metric
-04	DANPM1000-0400IN	1/4"-18	14.22	7.14	18.82	9/16"	Imperial
-04	DANPM1000-0400 Without Hole	1/4"-18	14.22	N/A	18.82	9/16"	Imperial
-06	DANPM1000-0600	3/8"-18	14.22	10.31	19.60	17 mm	Metric
-06	DANPM1000-0600IN	3/8"-18	14.22	10.31	19.60	11/16"	Imperial
-06	DANPM1000-0600 Without Hole	3/8"-18	14.22	N/A	19.60	11/16"	Imperial
-08	DANPM1000-0800	1/2"-14	19.05	13.49	24.44	22 mm	Metric
-08	DANPM1000-0800IN	1/2"-14	19.05	13.49	24.44	7/8"	Imperial
-08	DANPM1000-0800 Without Hole	1/2"-14	19.05	N/A	24.44	7/8"	Imperial
-12	DANPM1000-1200	3/4"-14	19.05	18.26	28.75	27 mm	Metric
-12	DANPM1000-1200IN	3/4"-14	19.05	18.26	28.75	1-1/8"	Imperial
-12	DANPM1000-1200 Without Hole	3/4"-14	19.05	N/A	28.75	1-1/8"	Imperial
-16	DANPM1000-1600	1"-11-1/2	23.88	23.83	34.58	36 mm	Metric
-16	DANPM1000-1600IN	1"-11-1/2	23.88	23.83	34.58	1-3/8"	Imperial
-16	DANPM1000-1600 Without Hole	1"-11-1/2	23.88	N/A	34.58	1-3/8"	Imperial
-20	DANPM1000-2000	1-1/4"-11-1/2	24.64	31.75	36.34	46 mm	Metric
-20	DANPM1000-2000IN	1-1/4"-11-1/2	24.64	31.75	36.34	1-3/4"	Imperial
-20	DANPM1000-2000 Without Hole	1-1/4"-11-1/2	24.64	N/A	36.34	1-3/4"	Imperial
-24	DANPM1000-2400	1-1/2"-11-1/2	25.40	38.10	39.90	50 mm	Metric
-24	DANPM1000-2400IN	1-1/2"-11-1/2	25.40	38.10	39.90	2"	Imperial
-24	DANPM1000-2400 Without Hole	1-1/2"-11-1/2	25.40	N/A	39.90	2"	Imperial
-32	DANPM1000-3200	2"-11-1/2	26.16	49.23	43.50	60 mm	Metric
-32	DANPM1000-3200IN	2"-11-1/2	26.16	49.23	43.50	2-1/2"	Imperial
-32	DANPM1000-3200 Without Hole	2"-11-1/2	26.16	N/A	43.50	2-1/2"	Imperial
-40	DANPM1000-4000	2-1/2"-8	38.86	59.00	57.50	85 mm	Metric
-40	DANPM1000-4000IN	2-1/2"-8	38.86	59.00	57.50	3-1/4"	Imperial
-40	DANPM1000-4000 Without Hole	2-1/2"-8	38.86	N/A	57.50	3-1/4"	Imperial
