Location: Home Fluid Connector Hydraulic Adaptors NPTFDANPM128FR

DANPM128FR Straight Bushing Connector NPTF Male 60° - NPTF Female

DCompanyDME
AProduct RangeAdaptor
NPThread TypesNPTF
MConnection TypeMale
1Adaptor StructureStraight
28Thread TypesNPTF
FConnection TypeFemale
ROther FeaturesBushing

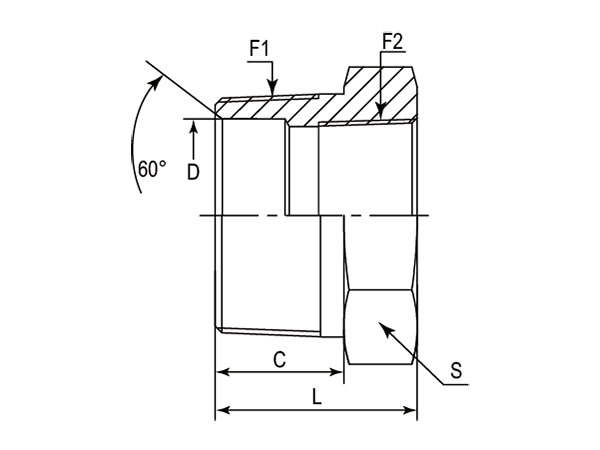

A drawing of DANPM128FR hydraulic adaptor.

A 3D drawing of DANPM128FR hydraulic adaptor.

A model drawing of DANPM128FR hydraulic adaptor.

DME&JDE Code: DANPM128FR
Product Type: hydraulic adaptor
Standard: NPTF
Structure: Straight
Connection Type: Male × Female
Thread Types: NPTF 60° × NPTF
Other Features: Bushing

Technical Data of DANPM128FR

-04
-06
-08
-12
-16
-20
-24
-32
-40
-48

* Filter the F1 Thread through selecting the -XX options

-	Part Number	F1 (Thread)	F2 (Thread)	C	D	L	S	Hex
-	-	NPTF	NPTF	mm	mm	mm	-	-
-01	DANPM128FR-0402	1/4"-18	1/8"-27	14.22	7.14	21.59	17 mm	Metric
-01	DANPM128FR-0402IN	1/4"-18	1/8"-27	14.22	7.14	21.59	5/8"	Imperial
-06	DANPM128FR-0602	3/8"-18	1/8"-27	14.22	10.31	21.59	19 mm	Metric
-06	DANPM128FR-0604	3/8"-18	1/4"-18	14.22	10.31	21.59	19 mm	Metric
-06	DANPM128FR-0602IN	3/8"-18	1/8"-27	14.22	10.31	21.59	3/4"	Imperial
-06	DANPM128FR-0604IN	3/8"-18	1/4"-18	14.22	10.31	21.59	3/4"	Imperial
-08	DANPM128FR-0802	1/2"-14	1/8"-27	19.05	13.49	27.94	22 mm	Metric
-08	DANPM128FR-0804	1/2"-14	1/4"-18	19.05	13.49	27.90	22 mm	Metric
-08	DANPM128FR-0806	1/2"-14	3/8"-18	19.05	13.49	27.90	22 mm	Metric
-08	DANPM128FR-0802IN	1/2"-14	1/8"-27	19.05	13.49	27.94	7/8"	Imperial
-08	DANPM128FR-0804IN	1/2"-14	1/4"-18	19.05	13.49	27.90	7/8"	Imperial
-08	DANPM128FR-0806IN	1/2"-14	3/8"-18	19.05	13.49	27.90	7/8"	Imperial
-12	DANPM128FR-1202	3/4"-14	1/8"-27	19.05	18.26	29.70	27 mm	Metric
-12	DANPM128FR-1204	3/4"-14	1/4"-18	19.05	18.26	29.72	27 mm	Metric
-12	DANPM128FR-1206	3/4"-14	3/8"-18	19.05	18.26	29.70	27 mm	Metric
-12	DANPM128FR-1208	3/4"-14	1/2"-14	19.05	18.26	29.72	27 mm	Metric
-12	DANPM128FR-1202IN	3/4"-14	1/8"-27	19.05	18.26	29.70	1-1/8"	Imperial
-12	DANPM128FR-1204IN	3/4"-14	1/4"-18	19.05	18.26	29.72	1-1/8"	Imperial
-12	DANPM128FR-1206IN	3/4"-14	3/8"-18	19.05	18.26	29.70	1-1/8"	Imperial
-12	DANPM128FR-1208IN	3/4"-14	1/2"-14	19.05	18.26	29.72	1-1/8"	Imperial
-16	DANPM128FR-1602	1"-11-1/2	1/8"-27	23.88	23.83	34.50	36 mm	Metric
-16	DANPM128FR-1604	1"-11-1/2	1/4"-18	23.88	23.83	34.50	36 mm	Metric
-16	DANPM128FR-1606	1"-11-1/2	3/8"-18	23.88	23.83	34.54	36 mm	Metric
-16	DANPM128FR-1608	1"-11-1/2	1/2"-14	23.88	23.83	34.54	36 mm	Metric
-16	DANPM128FR-1612	1"-11-1/2	3/4"-14	23.88	23.83	34.54	36 mm	Metric
-16	DANPM128FR-1602IN	1"-11-1/2	1/8"-27	23.88	23.83	34.50	1-3/8"	Imperial
-16	DANPM128FR-1604IN	1"-11-1/2	1/4"-18	23.88	23.83	34.50	1-3/8"	Imperial
-16	DANPM128FR-1606IN	1"-11-1/2	3/8"-18	23.88	23.83	34.54	1-3/8"	Imperial
-16	DANPM128FR-1608IN	1"-11-1/2	1/2"-14	23.88	23.83	34.54	1-3/8"	Imperial
-16	DANPM128FR-1612IN	1"-11-1/2	3/4"-14	23.88	23.83	34.54	1-3/8"	Imperial
-20	DANPM128FR-2004	1-1/4"-11-1/2	1/4"-18	24.64	31.75	37.30	46 mm	Metric
-20	DANPM128FR-2006	1-1/4"-11-1/2	3/8"-18	24.64	31.75	37.30	46 mm	Metric
-20	DANPM128FR-2008	1-1/4"-11-1/2	1/2"-14	24.64	31.75	37.34	46 mm	Metric
-20	DANPM128FR-2012	1-1/4"-11-1/2	3/4"-14	24.64	31.75	37.34	46 mm	Metric
-20	DANPM128FR-2016	1-1/4"-11-1/2	1"-11-1/2	24.64	31.75	37.34	46 mm	Metric
-20	DANPM128FR-2004IN	1-1/4"-11-1/2	1/4"-18	24.64	31.75	37.30	1-3/4"	Imperial
-20	DANPM128FR-2006IN	1-1/4"-11-1/2	3/8"-18	24.64	31.75	37.30	1-3/4"	Imperial
-20	DANPM128FR-2008IN	1-1/4"-11-1/2	1/2"-14	24.64	31.75	37.34	1-3/4"	Imperial
-20	DANPM128FR-2012IN	1-1/4"-11-1/2	3/4"-14	24.64	31.75	37.34	1-3/4"	Imperial
-20	DANPM128FR-2016IN	1-1/4"-11-1/2	1"-11-1/2	24.64	31.75	37.34	1-3/4"	Imperial
-24	DANPM128FR-2404	1-1/2"-11-1/2	1/4"-18	25.40	38.10	39.88	50 mm	Metric
-24	DANPM128FR-2406	1-1/2"-11-1/2	3/8"-18	25.40	38.10	39.90	50 mm	Metric
-24	DANPM128FR-2408	1-1/2"-11-1/2	1/2"-14	25.40	38.10	39.90	50 mm	Metric
-24	DANPM128FR-2412	1-1/2"-11-1/2	3/4"-14	25.40	38.10	39.88	50 mm	Metric
-24	DANPM128FR-2416	1-1/2"-11-1/2	1"-11-1/2	25.40	38.10	39.88	50 mm	Metric
-24	DANPM128FR-2420	1-1/2"-11-1/2	1-1/4"-11-1/2	25.40	38.10	39.88	50 mm	Metric
-24	DANPM128FR-2404IN	1-1/2"-11-1/2	1/4"-18	25.40	38.10	39.88	2"	Imperial
-24	DANPM128FR-2406IN	1-1/2"-11-1/2	3/8"-18	25.40	38.10	39.90	2"	Imperial
-24	DANPM128FR-2408IN	1-1/2"-11-1/2	1/2"-14	25.40	38.10	39.90	2"	Imperial
-24	DANPM128FR-2412IN	1-1/2"-11-1/2	3/4"-14	25.40	38.10	39.88	2"	Imperial
-24	DANPM128FR-2416IN	1-1/2"-11-1/2	1"-11-1/2	25.40	38.10	39.88	2"	Imperial
-24	DANPM128FR-2420IN	1-1/2"-11-1/2	1-1/4"-11-1/2	25.40	38.10	39.88	2"	Imperial
-32	DANPM128FR-3204	2"-11-1/2	1/4"-18	26.16	49.23	44.45	60 mm	Metric
-32	DANPM128FR-3206	2"-11-1/2	3/8"-18	26.16	49.23	44.45	60 mm	Metric
-32	DANPM128FR-3208	2"-11-1/2	1/2"-14	26.16	49.23	44.45	60 mm	Metric
-32	DANPM128FR-3212	2"-11-1/2	3/4"-14	26.16	49.23	44.50	60 mm	Metric
-32	DANPM128FR-3216	2"-11-1/2	1"-11-1/2	26.16	49.23	44.50	60 mm	Metric
-32	DANPM128FR-3220	2"-11-1/2	1-1/4"-11-1/2	26.16	49.23	44.45	60 mm	Metric
-32	DANPM128FR-3224	2"-11-1/2	1-1/2"-11-1/2	26.16	49.23	44.45	60 mm	Metric
-32	DANPM128FR-3204IN	2"-11-1/2	1/4"-18	26.16	49.23	44.45	2-1/2"	Imperial
-32	DANPM128FR-3206IN	2"-11-1/2	3/8"-18	26.16	49.23	44.45	2-1/2"	Imperial
-32	DANPM128FR-3208IN	2"-11-1/2	1/2"-14	26.16	49.23	44.45	2-1/2"	Imperial
-32	DANPM128FR-3212IN	2"-11-1/2	3/4"-14	26.16	49.23	44.50	2-1/2"	Imperial
-32	DANPM128FR-3216IN	2"-11-1/2	1"-11-1/2	26.16	49.23	44.50	2-1/2"	Imperial
-32	DANPM128FR-3220IN	2"-11-1/2	1-1/4"-11-1/2	26.16	49.23	44.45	2-1/2"	Imperial
-32	DANPM128FR-3224IN	2"-11-1/2	1-1/2"-11-1/2	26.16	49.23	44.45	2-1/2"	Imperial
-40	DANPM128FR-4032	2-1/2"-8	2"-11-1/2	38.86	59.00	60.19	75 mm	Metric
-40	DANPM128FR-4032IN	2-1/2"-8	2"-11-1/2	38.86	59.00	60.19	3"	Imperial
-48	DANPM128FR-4832	3"-8	2"-11-1/2	41.40	70.64	61.80	95 mm	Metric
-48	DANPM128FR-4832IN	3"-8	2"-11-1/2	41.40	70.64	61.80	3-3/4"	Imperial
