* Filter the F1 Thread through selecting the -XX options

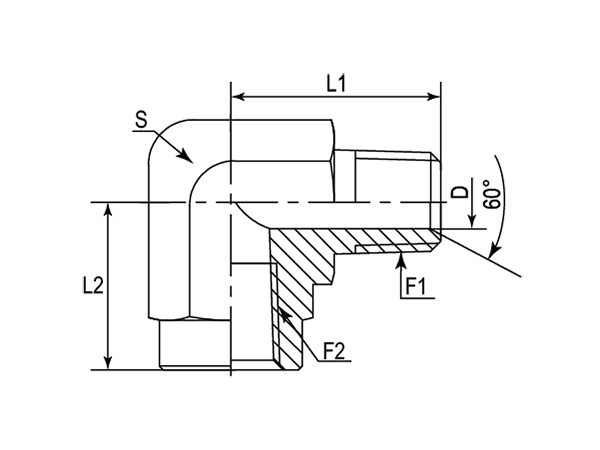

| - | Part Number | F1 (Thread) | F2 (Thread) | D | L1 | L2 | S | Hex |
|---|---|---|---|---|---|---|---|---|
| - | - | NPTF | NPTF | mm | mm | mm | - | - |
| -01 | DANPM928F-0202 | 1/8"-27 | 1/8"-27 | 4.78 | 19.80 | 16.80 | 14 mm | Metric |
| -01 | DANPM928F-0204 | 1/8"-27 | 1/4"-18 | 4.78 | 22.90 | 22.40 | 19 mm | Metric |
| -01 | DANPM928F-0206 | 1/8"-27 | 3/8"-18 | 4.78 | 26.50 | 25.90 | 22 mm | Metric |
| -01 | DANPM928F-0202IN | 1/8"-27 | 1/8"-27 | 4.78 | 19.80 | 16.80 | 9/16" | Imperial |
| -01 | DANPM928F-0204IN | 1/8"-27 | 1/4"-18 | 4.78 | 22.90 | 22.40 | 3/4" | Imperial |
| -01 | DANPM928F-0206IN | 1/8"-27 | 3/8"-18 | 4.78 | 26.50 | 25.90 | 7/8" | Imperial |
| -04 | DANPM928F-0402 | 1/4"-18 | 1/8"-27 | 7.14 | 27.70 | 17.00 | 14 mm | Metric |
| -04 | DANPM928F-0404 | 1/4"-18 | 1/4"-18 | 7.14 | 27.70 | 22.40 | 19 mm | Metric |
| -04 | DANPM928F-0406 | 1/4"-18 | 3/8"-18 | 7.14 | 31.10 | 25.90 | 22 mm | Metric |
| -04 | DANPM928F-0408 | 1/4"-18 | 1/2"-14 | 7.14 | 32.50 | 31.20 | 27 mm | Metric |
| -04 | DANPM928F-0402IN | 1/4"-18 | 1/8"-27 | 7.14 | 27.70 | 17.00 | 9/16" | Imperial |
| -04 | DANPM928F-0404IN | 1/4"-18 | 1/4"-18 | 7.14 | 27.70 | 22.40 | 3/4" | Imperial |
| -04 | DANPM928F-0406IN | 1/4"-18 | 3/8"-18 | 7.14 | 31.10 | 25.90 | 7/8" | Imperial |
| -04 | DANPM928F-0408IN | 1/4"-18 | 1/2"-14 | 7.14 | 32.50 | 31.20 | 1-1/16" | Imperial |
| -06 | DANPM928F-0602 | 3/8"-18 | 1/8"-27 | 10.31 | 28.00 | 22.35 | 19 mm | Metric |
| -06 | DANPM928F-0604 | 3/8"-18 | 1/4"-18 | 10.31 | 31.10 | 25.70 | 22 mm | Metric |
| -06 | DANPM928F-0606 | 3/8"-18 | 3/8"-18 | 10.31 | 30.99 | 25.91 | 22 mm | Metric |
| -06 | DANPM928F-0608 | 3/8"-18 | 1/2"-14 | 10.31 | 32.50 | 31.20 | 27 mm | Metric |
| -06 | DANPM928F-0602IN | 3/8"-18 | 1/8"-27 | 10.31 | 28.00 | 22.35 | 3/4" | Imperial |
| -06 | DANPM928F-0604IN | 3/8"-18 | 1/4"-18 | 10.31 | 31.10 | 25.70 | 7/8" | Imperial |
| -06 | DANPM928F-0606IN | 3/8"-18 | 3/8"-18 | 10.31 | 30.99 | 25.91 | 7/8" | Imperial |
| -06 | DANPM928F-0608IN | 3/8"-18 | 1/2"-14 | 10.31 | 32.50 | 31.20 | 1-1/16" | Imperial |
| -08 | DANPM928F-0804 | 1/2"-14 | 1/4"-18 | 13.49 | 37.30 | 25.40 | 22 mm | Metric |
| -08 | DANPM928F-0806 | 1/2"-14 | 3/8"-18 | 13.49 | 37.30 | 25.90 | 22 mm | Metric |
| -08 | DANPM928F-0808 | 1/2"-14 | 1/2"-14 | 13.49 | 37.30 | 31.20 | 27 mm | Metric |
| -08 | DANPM928F-0812 | 1/2"-14 | 3/4"-14 | 13.49 | 40.40 | 34.50 | 33 mm | Metric |
| -08 | DANPM928F-0804IN | 1/2"-14 | 1/4"-18 | 13.49 | 37.30 | 25.40 | 7/8" | Imperial |
| -08 | DANPM928F-0806IN | 1/2"-14 | 3/8"-18 | 13.49 | 37.30 | 25.90 | 7/8" | Imperial |
| -08 | DANPM928F-0808IN | 1/2"-14 | 1/2"-14 | 13.49 | 37.30 | 31.20 | 1-1/16" | Imperial |
| -08 | DANPM928F-0812IN | 1/2"-14 | 3/4"-14 | 13.49 | 40.40 | 34.50 | 1-5/16" | Imperial |
| -12 | DANPM928F-1206 | 3/4"-14 | 3/8"-18 | 18.26 | 40.40 | 26.40 | 27 mm | Metric |
| -12 | DANPM928F-1208 | 3/4"-14 | 1/2"-14 | 18.26 | 40.40 | 31.20 | 27 mm | Metric |
| -12 | DANPM928F-1212 | 3/4"-14 | 3/4"-14 | 18.26 | 40.40 | 34.50 | 33 mm | Metric |
| -12 | DANPM928F-1216 | 3/4"-14 | 1"-11-1/2 | 18.26 | 46.30 | 41.10 | 41 mm | Metric |
| -12 | DANPM928F-1206IN | 3/4"-14 | 3/8"-18 | 18.26 | 40.40 | 26.40 | 1-1/16" | Imperial |
| -12 | DANPM928F-1208IN | 3/4"-14 | 1/2"-14 | 18.26 | 40.40 | 31.20 | 1-1/16" | Imperial |
| -12 | DANPM928F-1212IN | 3/4"-14 | 3/4"-14 | 18.26 | 40.40 | 34.50 | 1-5/16" | Imperial |
| -12 | DANPM928F-1216IN | 3/4"-14 | 1"-11-1/2 | 18.26 | 46.30 | 41.10 | 1-5/8" | Imperial |
| -16 | DANPM928F-1612 | 1"-11-1/2 | 3/4"-14 | 23.83 | 46.70 | 34.50 | 33 mm | Metric |
| -16 | DANPM928F-1616 | 1"-11-1/2 | 1"-11-1/2 | 23.83 | 50.00 | 41.20 | 41 mm | Metric |
| -16 | DANPM928F-1620 | 1"-11-1/2 | 1-1/4"-11-1/2 | 23.83 | 59.70 | 43.20 | 50 mm | Metric |
| -16 | DANPM928F-1612IN | 1"-11-1/2 | 3/4"-14 | 23.83 | 46.70 | 34.50 | 1-5/16" | Imperial |
| -16 | DANPM928F-1616IN | 1"-11-1/2 | 1"-11-1/2 | 23.83 | 50.00 | 41.20 | 1-5/8" | Imperial |
| -16 | DANPM928F-1620IN | 1"-11-1/2 | 1-1/4"-11-1/2 | 23.83 | 59.70 | 43.20 | 1-7/8" | Imperial |
| -20 | DANPM928F-2016 | 1-1/4"-11-1/2 | 1"-11-1/2 | 31.75 | 60.50 | 42.67 | 41 mm | Metric |
| -20 | DANPM928F-2020 | 1-1/4"-11-1/2 | 1-1/4"-11-1/2 | 31.75 | 60.50 | 43.20 | 50 mm | Metric |
| -20 | DANPM928F-2024 | 1-1/4"-11-1/2 | 1-1/2"-11-1/2 | 31.75 | 66.29 | 52.82 | 65 mm | Metric |
| -20 | DANPM928F-2016IN | 1-1/4"-11-1/2 | 1"-11-1/2 | 31.75 | 60.50 | 42.67 | 1-5/8" | Imperial |
| -20 | DANPM928F-2020IN | 1-1/4"-11-1/2 | 1-1/4"-11-1/2 | 31.75 | 60.50 | 43.20 | 1-7/8" | Imperial |
| -20 | DANPM928F-2024IN | 1-1/4"-11-1/2 | 1-1/2"-11-1/2 | 31.75 | 66.29 | 52.82 | 2-9/16" | Imperial |
| -24 | DANPM928F-2420 | 1-1/2"-11-1/2 | 1-1/4"-11-1/2 | 38.10 | 67.10 | 43.20 | 50 mm | Metric |
| -24 | DANPM928F-2424 | 1-1/2"-11-1/2 | 1-1/2"-11-1/2 | 38.10 | 67.10 | 52.80 | 65 mm | Metric |
| -24 | DANPM928F-2420IN | 1-1/2"-11-1/2 | 1-1/4"-11-1/2 | 38.10 | 67.10 | 43.20 | 1-7/8" | Imperial |
| -24 | DANPM928F-2424IN | 1-1/2"-11-1/2 | 1-1/2"-11-1/2 | 38.10 | 67.10 | 52.80 | 2-9/16" | Imperial |
| -32 | DANPM928F-3232 | 2"-11-1/2 | 2"-11-1/2 | 49.23 | 76.20 | 60.70 | 70 mm | Metric |
| -32 | DANPM928F-3232IN | 2"-11-1/2 | 2"-11-1/2 | 49.23 | 76.20 | 60.70 | 2-13/16" | Imperial |
