DANPM128M Straight Connector NPTF Male 60° - NPTF Male 60°

  • DCompanyDME
  • AProduct RangeAdaptor
  • NPThread TypesNPTF
  • MConnection TypeMale
  • 1Adaptor StructureStraight
  • 28Thread TypesNPTF
  • MConnection TypeMale
  • DME&JDE Code: DANPM128M
  • Product Type: hydraulic adaptor
  • Standard: NPTF
  • Structure: Straight
  • Connection Type: Male × Male
  • Thread Types: NPTF 60° × NPTF 60°
Technical Data of DANPM128M
  • -02
  • -04
  • -06
  • -08
  • -12
  • -16
  • -20
  • -24
  • -32
  • -40
  • -48

* Filter the F1 Thread through selecting the -XX options

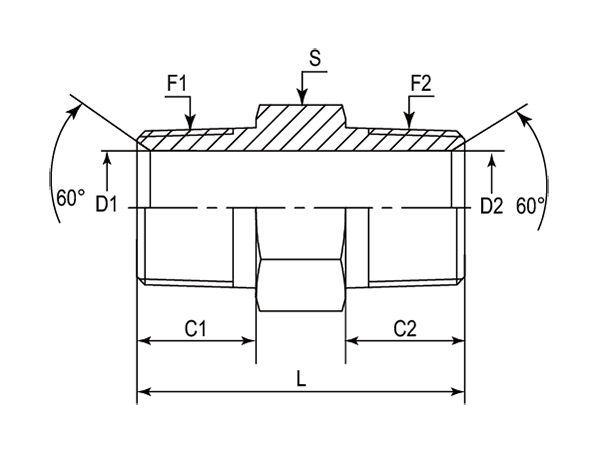

A drawing of DANPM128M hydraulic adaptor.
Technical Data of DANPM128M
- Part Number F1 (Thread) F2 (Thread) C1 C2 D1 D2 L S Hex
- - NPTF NPTF mm mm mm mm mm - -
-01 DANPM128M-0202 1/8"-27 1/8"-27 9.65 9.65 4.78 4.78 26.90 11 mm Metric
-01 DANPM128M-0202IN 1/8"-27 1/8"-27 9.65 9.65 4.78 4.78 26.90 7/16" Imperial
-04 DANPM128M-0402 1/4"-18 1/8"-27 14.22 9.65 7.14 4.78 32.00 17 mm Metric
-04 DANPM128M-0404 1/4"-18 1/4"-18 14.22 14.22 7.14 7.14 36.84 17 mm Metric
-04 DANPM128M-0402IN 1/4"-18 1/8"-27 14.22 9.65 7.14 4.78 32.00 5/8" Imperial
-04 DANPM128M-0404IN 1/4"-18 1/4"-18 14.22 14.22 7.14 7.14 36.84 5/8" Imperial
-06 DANPM128M-0602 3/8"-18 1/8"-27 14.22 9.65 10.31 4.78 32.00 19 mm Metric
-06 DANPM128M-0604 3/8"-18 1/4"-18 14.22 14.22 10.31 7.14 36.83 19 mm Metric
-06 DANPM128M-0606 3/8"-18 3/8"-18 14.22 14.22 10.31 10.31 36.26 19 mm Metric
-06 DANPM128M-0602IN 3/8"-18 1/8"-27 14.22 9.65 10.31 4.78 32.00 3/4" Imperial
-06 DANPM128M-0604IN 3/8"-18 1/4"-18 14.22 14.22 10.31 7.14 36.83 3/4" Imperial
-06 DANPM128M-0606IN 3/8"-18 3/8"-18 14.22 14.22 10.31 10.31 36.26 3/4" Imperial
-08 DANPM128M-0802 1/2"-14 1/8"-27 19.05 9.65 13.49 4.78 38.60 22 mm Metric
-08 DANPM128M-0804 1/2"-14 1/4"-18 19.05 14.22 13.49 7.14 43.20 22 mm Metric
-08 DANPM128M-0806 1/2"-14 3/8"-18 19.05 14.22 13.49 10.31 43.20 22 mm Metric
-08 DANPM128M-0808 1/2"-14 1/2"-14 19.05 19.05 13.49 13.49 48.00 22 mm Metric
-08 DANPM128M-0802IN 1/2"-14 1/8"-27 19.05 9.65 13.49 4.78 38.60 7/8" Imperial
-08 DANPM128M-0804IN 1/2"-14 1/4"-18 19.05 14.22 13.49 7.14 43.20 7/8" Imperial
-08 DANPM128M-0806IN 1/2"-14 3/8"-18 19.05 14.22 13.49 10.31 43.20 7/8" Imperial
-08 DANPM128M-0808IN 1/2"-14 1/2"-14 19.05 19.05 13.49 13.49 48.00 7/8" Imperial
-12 DANPM128M-1204 3/4"-14 1/4"-18 19.05 14.22 18.26 7.14 45.00 27 mm Metric
-12 DANPM128M-1206 3/4"-14 3/8"-18 19.05 14.22 18.26 10.31 45.00 27 mm Metric
-12 DANPM128M-1208 3/4"-14 1/2"-14 19.05 19.05 18.26 13.49 49.80 27 mm Metric
-12 DANPM128M-1212 3/4"-14 3/4"-14 19.05 19.05 18.26 18.26 49.78 27 mm Metric
-12 DANPM128M-1204IN 3/4"-14 1/4"-18 19.05 14.22 18.26 7.14 45.00 1-1/8" Imperial
-12 DANPM128M-1206IN 3/4"-14 3/8"-18 19.05 14.22 18.26 10.31 45.00 1-1/8" Imperial
-12 DANPM128M-1208IN 3/4"-14 1/2"-14 19.05 19.05 18.26 13.49 49.80 1-1/8" Imperial
-12 DANPM128M-1212IN 3/4"-14 3/4"-14 19.05 19.05 18.26 18.26 49.78 1-1/8" Imperial
-16 DANPM128M-1604 1"-11-1/2 1/4"-18 23.88 14.22 23.83 7.14 49.80 36 mm Metric
-16 DANPM128M-1606 1"-11-1/2 3/8"-18 23.88 14.22 23.83 10.31 49.80 36 mm Metric
-16 DANPM128M-1608 1"-11-1/2 1/2"-14 23.88 19.05 23.83 13.49 53.09 36 mm Metric
-16 DANPM128M-1612 1"-11-1/2 3/4"-14 23.88 19.05 23.83 18.26 54.61 36 mm Metric
-16 DANPM128M-1616 1"-11-1/2 1"-11-1/2 23.88 23.88 23.83 23.83 59.44 36 mm Metric
-16 DANPM128M-1604IN 1"-11-1/2 1/4"-18 23.88 14.22 23.83 7.14 49.80 1-3/8" Imperial
-16 DANPM128M-1606IN 1"-11-1/2 3/8"-18 23.88 14.22 23.83 10.31 49.80 1-3/8" Imperial
-16 DANPM128M-1608IN 1"-11-1/2 1/2"-14 23.88 19.05 23.83 13.49 53.09 1-3/8" Imperial
-16 DANPM128M-1612IN 1"-11-1/2 3/4"-14 23.88 19.05 23.83 18.26 54.61 1-3/8" Imperial
-16 DANPM128M-1616IN 1"-11-1/2 1"-11-1/2 23.88 23.88 23.83 23.83 59.44 1-3/8" Imperial
-20 DANPM128M-2008 1-1/4"-11-1/2 1/2"-14 24.64 19.05 31.75 13.49 57.50 46 mm Metric
-20 DANPM128M-2012 1-1/4"-11-1/2 3/4"-14 24.64 19.05 31.75 18.26 57.40 46 mm Metric
-20 DANPM128M-2016 1-1/4"-11-1/2 1"-11-1/2 24.64 23.88 31.75 23.83 62.30 46 mm Metric
-20 DANPM128M-2020 1-1/4"-11-1/2 1-1/4"-11-1/2 24.64 24.64 31.75 31.75 63.00 46 mm Metric
-20 DANPM128M-2008IN 1-1/4"-11-1/2 1/2"-14 24.64 19.05 31.75 13.49 57.50 1-3/4" Imperial
-20 DANPM128M-2012IN 1-1/4"-11-1/2 3/4"-14 24.64 19.05 31.75 18.26 57.40 1-3/4" Imperial
-20 DANPM128M-2016IN 1-1/4"-11-1/2 1"-11-1/2 24.64 23.88 31.75 23.83 62.30 1-3/4" Imperial
-20 DANPM128M-2020IN 1-1/4"-11-1/2 1-1/4"-11-1/2 24.64 24.64 31.75 31.75 63.00 1-3/4" Imperial
-24 DANPM128M-2412 1-1/2"-11-1/2 3/4"-14 25.40 19.05 38.10 18.26 60.45 50 mm Metric
-24 DANPM128M-2416 1-1/2"-11-1/2 1"-11-1/2 25.40 23.88 38.10 23.83 64.80 50 mm Metric
-24 DANPM128M-2420 1-1/2"-11-1/2 1-1/4"-11-1/2 25.40 24.64 38.10 31.75 66.29 50 mm Metric
-24 DANPM128M-2424 1-1/2"-11-1/2 1-1/2"-11-1/2 25.40 25.40 38.10 38.10 66.30 50 mm Metric
-24 DANPM128M-2412IN 1-1/2"-11-1/2 3/4"-14 25.40 19.05 38.10 18.26 60.45 2" Imperial
-24 DANPM128M-2416IN 1-1/2"-11-1/2 1"-11-1/2 25.40 23.88 38.10 23.83 64.80 2" Imperial
-24 DANPM128M-2420IN 1-1/2"-11-1/2 1-1/4"-11-1/2 25.40 24.64 38.10 31.75 66.29 2" Imperial
-24 DANPM128M-2424IN 1-1/2"-11-1/2 1-1/2"-11-1/2 25.40 25.40 38.10 38.10 66.30 2" Imperial
-32 DANPM128M-3212 2"-11-1/2 3/4"-14 26.16 19.05 49.23 18.26 64.50 65 mm Metric
-32 DANPM128M-3216 2"-11-1/2 1"-11-1/2 26.16 23.88 49.23 23.83 69.30 65 mm Metric
-32 DANPM128M-3220 2"-11-1/2 1-1/4"-11-1/2 26.16 24.64 49.23 31.75 70.10 65 mm Metric
-32 DANPM128M-3224 2"-11-1/2 1-1/2"-11-1/2 26.16 25.40 49.23 38.10 70.87 65 mm Metric
-32 DANPM128M-3232 2"-11-1/2 2"-11-1/2 26.20 26.20 49.23 49.23 71.63 65 mm Metric
-32 DANPM128M-3212IN 2"-11-1/2 3/4"-14 26.16 19.05 49.23 18.26 64.50 2-1/2" Imperial
-32 DANPM128M-3216IN 2"-11-1/2 1"-11-1/2 26.16 23.88 49.23 23.83 69.30 2-1/2" Imperial
-32 DANPM128M-3220IN 2"-11-1/2 1-1/4"-11-1/2 26.16 24.64 49.23 31.75 70.10 2-1/2" Imperial
-32 DANPM128M-3224IN 2"-11-1/2 1-1/2"-11-1/2 26.16 25.40 49.23 38.10 70.87 2-1/2" Imperial
-32 DANPM128M-3232IN 2"-11-1/2 2"-11-1/2 26.20 26.20 49.23 49.23 71.63 2-1/2" Imperial
-40 DANPM128M-4040 2-1/2"-8 2-1/2"-8 38.86 38.86 59.00 59.00 96.40 85 mm Metric
-40 DANPM128M-4040IN 2-1/2"-8 2-1/2"-8 38.86 38.86 59.00 59.00 96.40 3-1/4" Imperial
-48 DANPM128M-4848 3"-8 3"-8 41.40 41.40 70.64 70.64 103.50 90 mm Metric
-48 DANPM128M-4848IN 3"-8 3"-8 41.40 41.40 70.64 70.64 103.50 3-9/16" Imperial
