* Filter the F1 Thread through selecting the -XX options

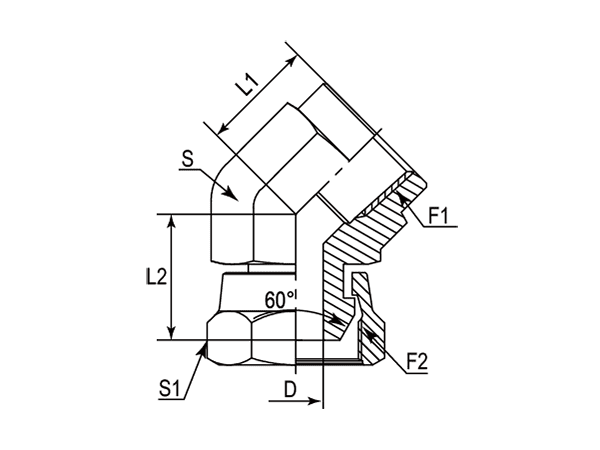

| - | Part Number | F1 (Thread) | F2 (Thread) | L1 | L2 | D | S | S1 | Hex |
|---|---|---|---|---|---|---|---|---|---|
| - | - | NPTF | NPSM | mm | mm | mm | - | - | - |
| -01 | DANPF4091-0202 | 1/8"-27 | 1/8"-27 | 11.90 | 15.50 | 2.79 | 14 mm | 14 mm | Metric |
| -01 | DANPF4091-0204 | 1/8"-27 | 1/4"-18 | 11.90 | 18.50 | 5.33 | 14 mm | 19 mm | Metric |
| -01 | DANPF4091-0202IN | 1/8"-27 | 1/8"-27 | 11.90 | 15.50 | 2.79 | 9/16" | 9/16" | Imperial |
| -01 | DANPF4091-0204IN | 1/8"-27 | 1/4"-18 | 11.90 | 18.50 | 5.33 | 9/16" | 11/16" | Imperial |
| -04 | DANPF4091-0402 | 1/4"-18 | 1/8"-27 | 17.50 | 17.80 | 2.79 | 19 mm | 14 mm | Metric |
| -04 | DANPF4091-0404 | 1/4"-18 | 1/4"-18 | 17.53 | 19.30 | 5.59 | 19 mm | 19 mm | Metric |
| -04 | DANPF4091-0406 | 1/4"-18 | 3/8"-18 | 17.50 | 20.50 | 8.13 | 19 mm | 22 mm | Metric |
| -04 | DANPF4091-0402IN | 1/4"-18 | 1/8"-27 | 17.50 | 17.80 | 2.79 | 3/4" | 9/16" | Imperial |
| -04 | DANPF4091-0404IN | 1/4"-18 | 1/4"-18 | 17.53 | 19.30 | 5.59 | 3/4" | 11/16" | Imperial |
| -04 | DANPF4091-0406IN | 1/4"-18 | 3/8"-18 | 17.50 | 20.50 | 8.13 | 3/4" | 7/8" | Imperial |
| -06 | DANPF4091-0604 | 3/8"-18 | 1/4"-18 | 19.05 | 19.56 | 5.33 | 22 mm | 17 mm | Metric |
| -06 | DANPF4091-0606 | 3/8"-18 | 3/8"-18 | 19.05 | 19.56 | 8.13 | 22 mm | 22 mm | Metric |
| -06 | DANPF4091-0608 | 3/8"-18 | 1/2"-14 | 19.05 | 22.35 | 11.18 | 22 mm | 27 mm | Metric |
| -06 | DANPF4091-0604IN | 3/8"-18 | 1/4"-18 | 19.05 | 19.56 | 5.33 | 7/8" | 11/16" | Imperial |
| -06 | DANPF4091-0606IN | 3/8"-18 | 3/8"-18 | 19.05 | 19.56 | 8.13 | 7/8" | 7/8" | Imperial |
| -06 | DANPF4091-0608IN | 3/8"-18 | 1/2"-14 | 19.05 | 22.35 | 11.18 | 7/8" | 1" | Imperial |
| -08 | DANPF4091-0806 | 1/2"-14 | 3/8"-18 | 23.10 | 21.86 | 8.13 | 27 mm | 22 mm | Metric |
| -08 | DANPF4091-0808 | 1/2"-14 | 1/2"-14 | 23.10 | 23.64 | 11.18 | 27 mm | 27 mm | Metric |
| -08 | DANPF4091-0806IN | 1/2"-14 | 3/8"-18 | 23.10 | 21.86 | 8.13 | 1-1/16" | 7/8" | Imperial |
| -08 | DANPF4091-0808IN | 1/2"-14 | 1/2"-14 | 23.10 | 23.64 | 11.18 | 1-1/16" | 1" | Imperial |
| -12 | DANPF4091-1208 | 3/4"-14 | 1/2"-14 | 25.40 | 24.38 | 11.18 | 33 mm | 27 mm | Metric |
| -12 | DANPF4091-1212 | 3/4"-14 | 3/4"-14 | 25.40 | 25.65 | 15.49 | 33 mm | 32 mm | Metric |
| -12 | DANPF4091-1208IN | 3/4"-14 | 1/2"-14 | 25.40 | 24.38 | 11.18 | 1-5/16" | 1" | Imperial |
| -12 | DANPF4091-1212IN | 3/4"-14 | 3/4"-14 | 25.40 | 25.65 | 15.49 | 1-5/16" | 1-1/4" | Imperial |
| -16 | DANPF4091-1612 | 1"-11-1/2 | 3/4"-14 | 30.22 | 25.65 | 15.49 | 41 mm | 32 mm | Metric |
| -16 | DANPF4091-1616 | 1"-11-1/2 | 1"-11-1/2 | 30.22 | 30.00 | 19.81 | 41 mm | 41 mm | Metric |
| -16 | DANPF4091-1612IN | 1"-11-1/2 | 3/4"-14 | 30.22 | 25.65 | 15.49 | 1-5/8" | 1-1/4" | Imperial |
| -16 | DANPF4091-1616IN | 1"-11-1/2 | 1"-11-1/2 | 30.22 | 30.00 | 19.81 | 1-5/8" | 1-1/2" | Imperial |
| -20 | DANPF4091-2020 | 1-1/4"-11-1/2 | 1-1/4"-11-1/2 | 36.58 | 33.64 | 25.65 | 50 mm | 50 mm | Metric |
| -20 | DANPF4091-2020IN | 1-1/4"-11-1/2 | 1-1/4"-11-1/2 | 36.58 | 33.64 | 25.65 | 1-7/8" | 1-7/8" | Imperial |
| -24 | DANPF4091-2424 | 1-1/2"-11-1/2 | 1-1/2"-11-1/2 | 37.08 | 37.08 | 32 | 65 mm | 55 mm | Metric |
| -24 | DANPF4091-2424IN | 1-1/2"-11-1/2 | 1-1/2"-11-1/2 | 37.08 | 37.08 | 32 | 2-5/8" | 2-1/8" | Imperial |
| -32 | DANPF4091-3232 | 2"-11-1/2 | 2"-11-1/2 | 55.60 | 44.01 | 43.69 | 70 mm | 70 mm | Metric |
| -32 | DANPF4091-3232IN | 2"-11-1/2 | 2"-11-1/2 | 55.60 | 44.01 | 43.69 | 2-13/16" | 2-5/8" | Imperial |
