Location: Home Fluid Connector Hydraulic Adaptors JISDAJSMT52JM

DAJSMT52JM Branch Tee Connector JIS Metric Male 60° - JIS Metric Male 60°

DCompanyDME
AProduct RangeAdaptor
JSThread TypesJIS Metric
MConnection TypeMale
TAdaptor StructureBranch Tee
52JThread TypesJIS Metric
MConnection TypeMale

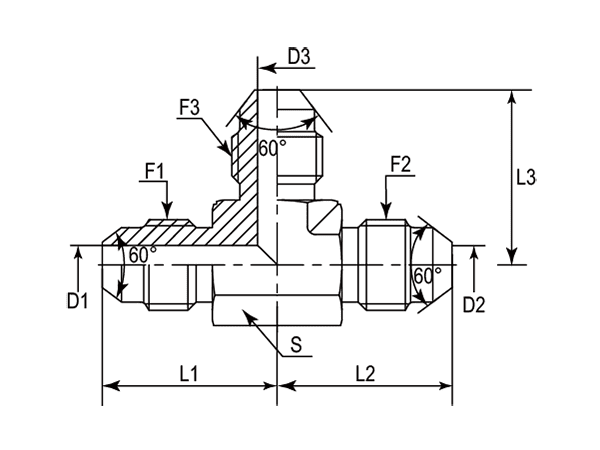

A drawing of DAJSMT52JM hydraulic adaptor.

A 3D drawing of DAJSMT52JM hydraulic adaptor.

A model drawing of DAJSMT52JM hydraulic adaptor.

DME&JDE Code: DAJSMT52JM
Product Type: hydraulic adaptor
Standard: JIS
Structure: Branch Tee
Connection Type: Male × Male × Male
Thread Types: JIS Metric 60° × JIS Metric 60° × JIS Metric 60°

Technical Data of DAJSMT52JM

-14
-18
-22
-24
-30

* Filter the F1 Thread through selecting the -XX options

A drawing of DAJSMT52JM hydraulic adaptor.

-	PART NUMBER	F1 (Thread)	F2 (Thread)	F3 (Thread)	D1	D2	D3	L1	L2	L3	S
-	-	METRIC	METRIC	METRIC	mm	mm	mm	mm	mm	mm	mm
-01	DAJSMT52JM-141420	M14X1.5	M14X1.5	M20X1.5	5.00	5.00	10.0	34.00	34.00	37.00	22
-18	DAJSMT52JM-181818	M18X1.5	M18X1.5	M18X1.5	8.50	8.50	8.50	30.80	30.80	30.80	19
-22	DAJSMT52JM-222222	M22X1.5	M22X1.5	M22X1.5	12.00	12.00	12.0	35.50	35.50	35.50	22
-24	DAJSMT52JM-242424	M24X1.5	M24X1.5	M24X1.5	15.00	15.0	15.0	39.50	39.50	39.50	27
-30	DAJSMT52JM-303030	M30X1.5	M30X1.5	M30X1.5	18.00	18.0	18.0	46.00	46.00	46.00	33
