Location: Home Fluid Connector Hydraulic Adaptors JISDAJSM952Q

DAJSM952Q Adjustable 90° Elbow JIS Metric Male 60° - Metric Male + O Ring + Retaining Ring

DCompanyDME
AProduct RangeAdaptor
JSThread TypesJIS Metric
MConnection TypeMale
9Adaptor Structure90° Elbow
52Thread TypesMetric
QConnection TypeMale + O Ring + Retaining Ring

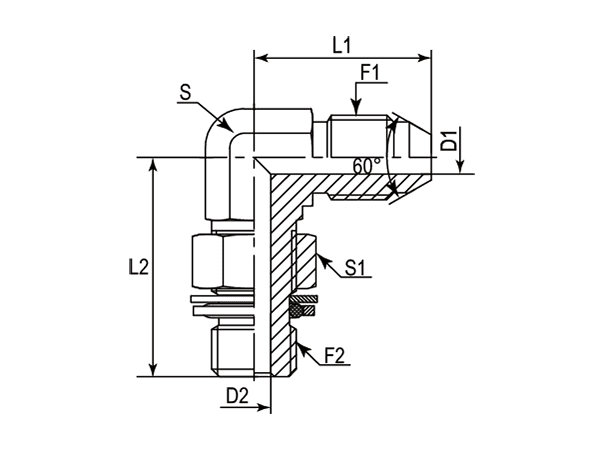

A drawing of DAJSM952Q hydraulic adaptor.

A 3D drawing of DAJSM952Q hydraulic adaptor.

A model drawing of DAJSM952Q hydraulic adaptor.

DME&JDE Code: DAJSM952Q
Product Type: hydraulic adaptor
Standard: JIS
Structure: 90° Elbow
Connection Type: Adjustable Male × Male
Thread Types: JIS Metric 60° × Metric
Sealing Method: O Ring + Retaining Ring

Technical Data of DAJSM952Q

-16
-18
-20
-22

* Filter the F1 Thread through selecting the -XX options

A drawing of DAJSM952Q hydraulic adaptor.

-	Part Number	F1 (Thread)	F2 (Thread)	D1	D2	L1	L2	S	S1
-	-	Metric	Metric	mm	mm	mm	mm	mm	mm
-01	DAJSM952Q-1614	M16X1.5	M14X1.5	7.00	6.00	30.00	35.00	17.00	19.00
-18	DAJSM952Q-1814	M18X1.5	M14X1.5	8.50	6.00	30.00	36.50	19.00	19.00
-18	DAJSM952Q-1816	M18X1.5	M16X1.5	8.50	7.00	30.00	36.50	19.00	22.00
-20	DAJSM952Q-2018	M20X1.5	M18X1.5	10.00	9.00	36.00	41.50	22.00	24.00
-22	DAJSM952Q-2220	M22X1.5	M20X1.5	12.00	12.00	36.00	45.00	22.00	27.00
