Location: Home Fluid Connector Hydraulic Adaptors JISDAJS31000

DAJS31000 JIS Metric Female Cap Swivel 60° Cone

DCompanyDME
AProduct RangeAdaptor
JSThread TypesJIS Metric
3Connection TypeMale
1Adaptor StructureStraight
000Other FeaturesNut/Plug

A drawing of DAJS31000 hydraulic adaptor.

A 3D drawing of DAJS31000 hydraulic adaptor.

A model drawing of DAJS31000 hydraulic adaptor.

DME&JDE Code: DAJS31000
Product Type: hydraulic adaptor
Standard: JIS
Structure: Straight
Connection Type: Female
Thread Types: JIS Metric Cap Swivel 60° Cone
Other Features: Nut/Plug

Technical Data of DAJS31000

-14
-16
-18
-20
-22
-24
-26
-30
-33

* Filter the F1 Thread through selecting the -XX options

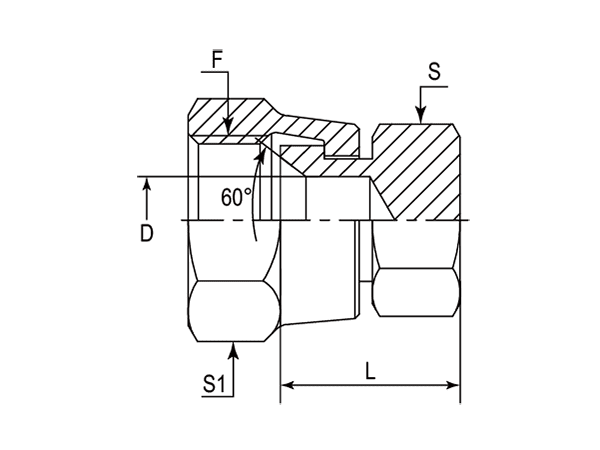

A drawing of DAJS31000 hydraulic adaptor.

-	Part Number	F (Thread)	D	L	S	S1	Cross Number
-	-	Metric	mm	mm	mm	mm	-
-01	DAJS31000-1400	M14X1.5	4.00	15.00	19.00	19.00	9K-14
-16	DAJS31000-1600	M16X1.5	5.50	17.50	22.00	22.00	9K-16
-18	DAJS31000-1800	M18X1.5	7.00	18.50	24.00	24.00	9K-18
-20	DAJS31000-2000	M20X1.5	9.50	18.50	24.00	24.00	9K-20
-22	DAJS31000-2200	M22X1.5	9.50	21.00	27.00	27.00	9K-22
-24	DAJS31000-2400	M24X1.5	12.50	22.50	32.00	32.00	9K-24
-26	DAJS31000-2600	M26X1.5	15.00	23.50	32.00	32.00	9K-26
-30	DAJS31000-3000	M30X1.5	14.00	25.00	36.00	36.00	9K-30
-33	DAJS31000-3300	M33X1.5	18.50	25.50	41.00	41.00	9K-33
