Location: Home Fluid Connector Hydraulic Adaptors JISDAJSM452Q

DAJSM452Q 45° Adjustable Elbow JIS Metric Male 60° - Metric Male + O Ring + Retaining Ring

DCompanyDME
AProduct RangeAdaptor
JSThread TypesJIS Metric
MConnection TypeMale
4Adaptor Structure45° Elbow
52Thread TypesMetric
QConnection TypeMale + O Ring + Retaining Ring

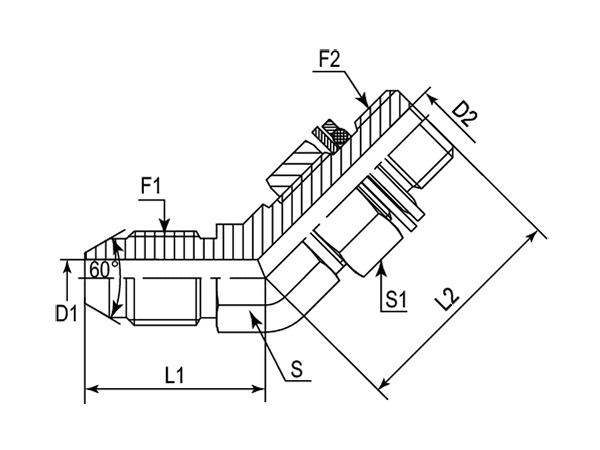

A drawing of DAJSM452Q hydraulic adaptor.

A 3D drawing of DAJSM452Q hydraulic adaptor.

A model drawing of DAJSM452Q hydraulic adaptor.

DME&JDE Code: DAJSM452Q
Product Type: hydraulic adaptor
Standard: JIS
Structure: 45° Elbow
Connection Type: Adjustable Male × Male
Thread Types: JIS Metric 60° Cone × Metric
Sealing Method: O Ring + Retaining Ring

Technical Data of DAJSM452Q

-14
-18
-22

* Filter the F1 Thread through selecting the -XX options

A drawing of DAJSM452Q hydraulic adaptor.

-	Part Number	F1 (Thread)	F2 (Thread)	D1	D2	L1	L2	S	S1
-	-	Metric	Metric	mm	mm	mm	mm	mm	mm
-01	DAJSM452Q-1412	M14X1.5	M12X1.5	6.00	6.00	27.00	35.00	17.00	17.00
-18	DAJSM452Q-1816	M18X1.5	M16X1.5	8.50	7.00	30.80	36.50	19.00	22.00
-18	DAJSM452Q-1820	M18X1.5	M20X1.5	8.50	12.00	33.00	43.00	22.00	27.00
-22	DAJSM452Q-2220	M22X1.5	M20X1.5	12.00	12.00	35.50	43.00	22.00	27.00
