DAJSBM906Q Adjustable 90° Elbow JIS BSPP Male 60° - BSPP Male + O Ring + Retaining Ring

  • DCompanyDME
  • AProduct RangeAdaptor
  • JSBThread TypesJIS BSPP
  • MConnection TypeMale
  • 9Adaptor Structure90° Elbow
  • 06Thread TypesBSPP
  • QConnection TypeMale + O Ring + Retaining Ring
  • DME&JDE Code: DAJSBM906Q
  • Product Type: hydraulic adaptor
  • Standard: JIS
  • Structure: 90° Elbow
  • Connection Type: Adjustable Male × Male
  • Thread Types: JIS BSPP 60° × BSPP
  • Sealing Method: O Ring + Retaining Ring
Technical Data of DAJSBM906Q
  • -04
  • -06
  • -08
  • -12
  • -16
  • -20

* Filter the F1 Thread through selecting the -XX options

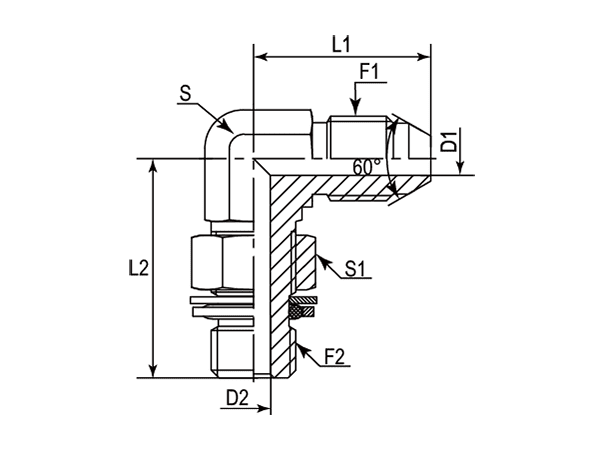

A drawing of DAJSBM906Q hydraulic adaptor.
- Part Number F1 (Thread) F2 (Thread) D1 D2 L1 L2 S S1 Cross Number
- - BSPP BSPP mm mm mm mm mm mm -
-01 DAJSBM906Q-0404 1/4"-19 1/4"-19 4.00 7.50 27.00 31.50 14.00 19.00 1SG9-0404
-06 DAJSBM906Q-0606 3/8"-19 3/8"-19 8.50 9.90 31.00 36.50 19.00 22.00 1SG9-0606
-08 DAJSBM906Q-0808 1/2"-14 1/2"-14 9.30 12.30 37.00 43.00 22.00 27.00 1SG9-0808
-12 DAJSBM906Q-1212 3/4"-14 3/4'-14 16.00 15.50 43.00 49.30 27.00 32.00 1SG9-1212
-16 DAJSBM906Q-1616 1"-11 1"-11 20.00 21.50 48.50 53.00 33.00 41.00 1SG9-1616
-20 DAJSBM906Q-2020 1-1/4''-11 1-1/4''-11 28.00 27.50 52.00 58.00 41.00 50.00 1SG9-2020
