Location: Home Fluid Connector Hydraulic Adaptors JISDAJSM9071

DAJSM9071 90° Elbow JIS Metric Male 60° Cone - Metric Swivel Female 60°

DCompanyDME
AProduct RangeAdaptor
JSThread TypesJIS Metric
MConnection TypeMale
9Adaptor Structure90° Elbow
071Connection TypeMetric Swivel Female

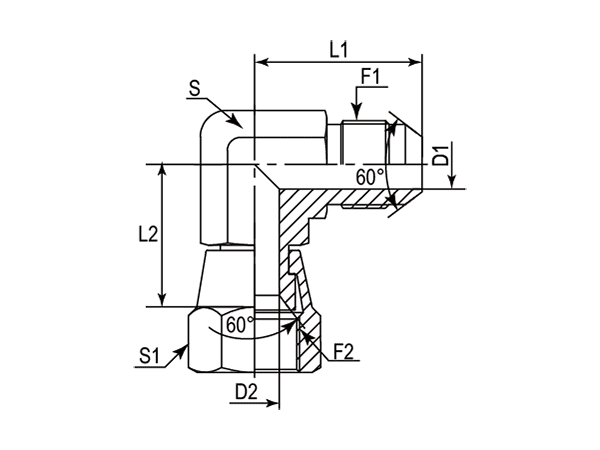

A drawing of DAJSM9071 hydraulic adaptor.

A 3D drawing of DAJSM9071 hydraulic adaptor.

A model drawing of DAJSM9071 hydraulic adaptor.

DME&JDE Code: DAJSM9071
Product Type: hydraulic adaptor
Standard: JIS
Structure: 90° Elbow
Connection Type: Male × Swivel Female
Thread Types: JIS Metric 60° Cone × Metric 60°

Technical Data of DAJSM9071

-14
-16
-18
-22
-24
-30
-33

* Filter the F1 Thread through selecting the -XX options

A drawing of DAJSM9071 hydraulic adaptor.

-	Part Number	F1 (Thread)	F2 (Thread)	D1	D2	L1	L2	S	S1	Cross Number
-	-	Metric	Metric	mm	mm	mm	mm	mm	mm	-
-01	DAJSM9071-1414	M14X1.5	M14X1.5	5.00	4.00	29.00	22.50	14.00	19.00	2K9-14
-16	DAJSM9071-1616	M16X1.5	M16X1.5	7.00	7.00	31.50	24.50	16.00	22.00	2K9-16
-18	DAJSM9071-1818	M18X1.5	M18X1.5	8.50	8.50	33.80	27.30	19.00	24.00	2K9-18
-22	DAJSM9071-2222	M22X1.5	M22X1.5	12.00	12.00	38.00	29.50	22.00	27.00	2K9-22
-24	DAJSM9071-2424	M24X1.5	M24X1.5	15.00	12.50	41.50	32.00	27.00	32.00	2K9-24
-30	DAJSM9071-3030	M30X1.5	M30X1.5	18.50	14.00	48.00	38.00	30.00	36.00	2K9-30
-33	DAJSM9071-3333	M33X1.5	M33X1.5	20.00	18.50	55.00	45.50	33.00	41.00	2K9-33
