Location: Home Fluid Connector Hydraulic Adaptors JISDAJSBM105JM

DAJSBM105JM Straight Connector JIS BSPP Male 60° Cone

DCompanyDME
AProduct RangeAdaptor
JSBThread TypesJIS BSPP
MConnection TypeMale
1Adaptor StructureStraight
05JThread TypesJIS BSPP
MConnection TypeMale

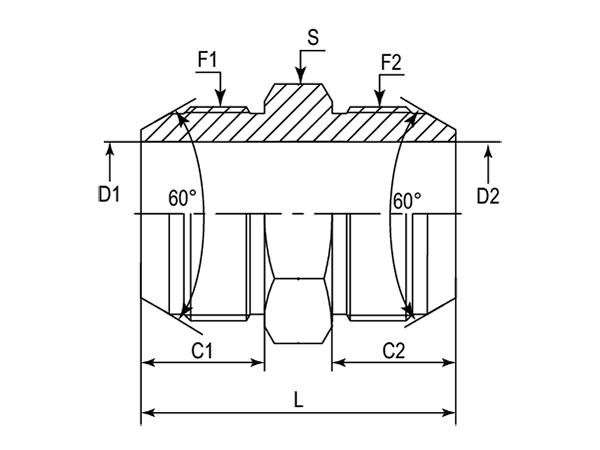

A drawing of DAJSBM105JM hydraulic adaptor.

A 3D drawing of DAJSBM105JM hydraulic adaptor.

A model drawing of DAJSBM105JM hydraulic adaptor.

DME&JDE Code: DAJSBM105JM
Product Type: hydraulic adaptor
Standard: JIS
Structure: Straight
Connection Type: Male × Male
Thread Types: JIS BSPP 60° Cone × JIS BSPP 60° Cone

Technical Data of DAJSBM105JM

-04
-06
-08
-12
-16
-20
-24
-32

* Filter the F1 Thread through selecting the -XX options

A drawing of DAJSBM105JM hydraulic adaptor.

	Part Number	F1/F2 (Thread)	C1/C2	D1/D2	L	S	Cross Number
		BSPP	mm	mm	mm	mm
-01	DAJSBM105JM-0404	1/4"-19	16.00	4.00	38.00	17.00	1S-04
-06	DAJSBM105JM-0606	3/8"-19	18.00	8.50	42.00	19.00	1S-06
-08	DAJSBM105JM-0808	1/2"-14	20.00	9.30	48.00	22.00	1S-08
-12	DAJSBM105JM-1212	3/4"-14	22.00	16.70	54.00	30.00	1S-12
-16	DAJSBM105JM-1616	1"-11	24.00	20.00	59.00	36.00	1S-16
-20	DAJSBM105JM-2020	1-1/4''-11	27.00	28.00	67.00	46.00	1S-20
-24	DAJSBM105JM-2424	1-1/2''-11	27.00	34.00	69.00	50.00	1S-24
-32	DAJSBM105JM-3232	2"-11	30.00	46.00	77.00	65.00	1S-32
