Location: Home Fluid Connector Hydraulic Adaptors JISDAJSML071

DAJSML071 Run Tee JIS Metric Male 60° Cone - Metric Swivel Female 60°

DCompanyDME
AProduct RangeAdaptor
JSThread TypesJIS Metric
MConnection TypeMale
LAdaptor StructureRun Tee
071Connection TypeMetric Swivel Female

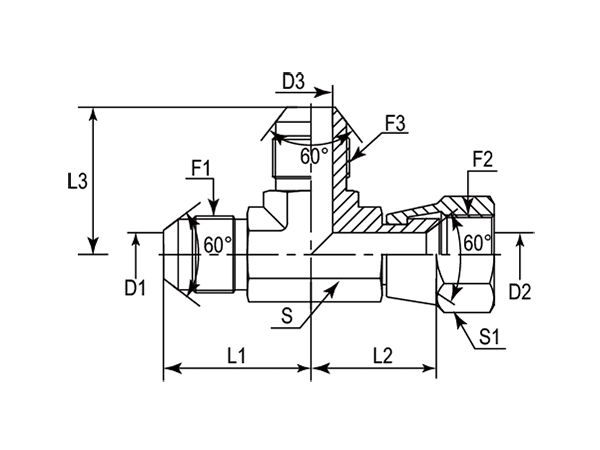

A drawing of DAJSML071 hydraulic adaptor.

A 3D drawing of DAJSML071 hydraulic adaptor.

A model drawing of DAJSML071 hydraulic adaptor.

DME&JDE Code: DAJSML071
Product Type: hydraulic adaptor
Standard: JIS
Structure: Run Tee
Connection Type: Male × Swivel Female × Male
Thread Types: JIS Metric 60° Cone × Metric 60° × JIS Metric 60° Cone

Technical Data of DAJSML071

-14
-18
-22
-24
-30

* Filter the F1 Thread through selecting the -XX options

A drawing of DAJSML071 hydraulic adaptor.

-	PART NUMBER	F1 (Thread)	F2 (Thread)	F3 (Thread)	D1	D2	D3	L1	L2	L3	S	S1
-	-	METRIC	METRIC	METRIC	mm	mm	mm	mm	mm	mm	mm	mm
-01	DAJSML071-1414	M14X1.5	M14X1.5	M14X1.5	6.00	4.00	6.00	27.00	19.50	27.00	17	19
-18	DAJSML071-1818	M18X1.5	M18X1.5	M18X1.5	8.50	8.50	8.50	30.80	24.30	30.80	19	24
-22	DAJSML071-2222	M22X1.5	M22X1.5	M22X1.5	12.00	9.50	12.00	35.50	27.00	35.50	22	27
-24	DAJSML071-2424	M24X1.5	M24X1.5	M24X1.5	15.00	12.50	15.00	39.50	29.50	39.50	27	32
-30	DAJSML071-3030	M30X1.5	M30X1.5	M30X1.5	18.00	18.00	18.00	46.00	35.60	46.00	33	36
