Location: Home Fluid Connector Hydraulic Adaptors JISDAJSM1000

DAJSM1000 JIS Metric Male Plug 60° Cone

DCompanyDME
AProduct RangeAdaptor
JSThread TypesJIS Metric
MConnection TypeMale
1Adaptor StructureStraight
000Other FeaturesNut/Plug

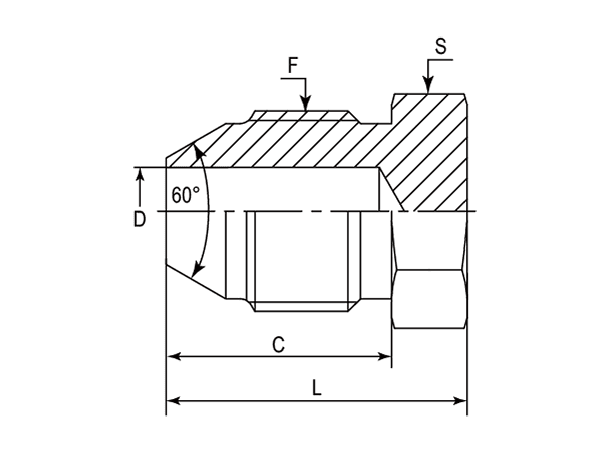

A drawing of DAJSM1000 hydraulic adaptor.

A 3D drawing of DAJSM1000 hydraulic adaptor.

A model drawing of DAJSM1000 hydraulic adaptor.

DME&JDE Code: DAJSM1000
Product Type: hydraulic adaptor
Standard: JIS
Connection Type: Male
Thread Types: JIS Metric 60° Cone
Other Features: Nut/Plug

Technical Data of DAJSM1000

-12
-14
-16
-18
-20
-22
-24
-26
-30
-33
-42

* Filter the F1 Thread through selecting the -XX options

A drawing of DAJSM1000 hydraulic adaptor.

-	Part Number	F (Thread)	C	D	L	S	Cross Number
-	-	Metric	mm	mm	mm	mm	-
-01	DAJSM1000-1200	M12X1.5	17.00	3.00	22.00	14.00	4K-12
-14	DAJSM1000-1400	M14X1.5	17.00	5.00	23.00	17.00	4K-14
-16	DAJSM1000-1600	M16X1.5	18.00	7.00	24.00	17.00	4K-16
-18	DAJSM1000-1800	M18X1.5	18.00	8.50	25.00	19.00	4K-18
-20	DAJSM1000-2000	M20X1.5	20.00	10.00	28.00	22.00	4K-20
-22	DAJSM1000-2200	M22X1.5	20.00	12.00	28.00	24.00	4K-22
-24	DAJSM1000-2400	M24X1.5	21.50	15.00	31.50	27.00	4K-24
-26	DAJSM1000-2600	M26X1.5	22.00	16.70	32.00	30.00	4K-26
-30	DAJSM1000-3000	M30X1.5	26.00	18.50	37.00	32.00	4K-30
-33	DAJSM1000-3300	M33X1.5	30.00	20.00	41.00	36.00	4K-33
-42	DAJSM1000-4200	M42X1.5	27.00	28.00	41.00	46.00	4K-42
