Location: Home Fluid Connector Hydraulic Adaptors JISDAJSM906Q

DAJSM906Q 90° Elbow JIS Metric Male 60° Cone - BSPP Male + O Ring + Retaining Ring

DCompanyDME
AProduct RangeAdaptor
JSThread TypesJIS Metric
MConnection TypeMale
9Adaptor Structure90° Elbow
06Thread TypesBSPP
QConnection & Sealing MethodMale + O Ring + Retaining Ring

A drawing of DAJSM906Q hydraulic adaptor.

A 3D drawing of DAJSM906Q hydraulic adaptor.

A model drawing of DAJSM906Q hydraulic adaptor.

DME&JDE Code: DAJSM906Q
Product Type: Hydraulic Adaptors
Standard: JIS
Structure: 90° Elbow
Connection Type: Adjustable Male × Male
Thread Types: JIS Metric 60° × BSPP
Sealing Method: O Ring + Retaining Ring

Technical Data of DAJSM906Q

-14
-16
-18
-20
-22
-24
-30
-33

* Filter the F1 Thread through selecting the -XX options

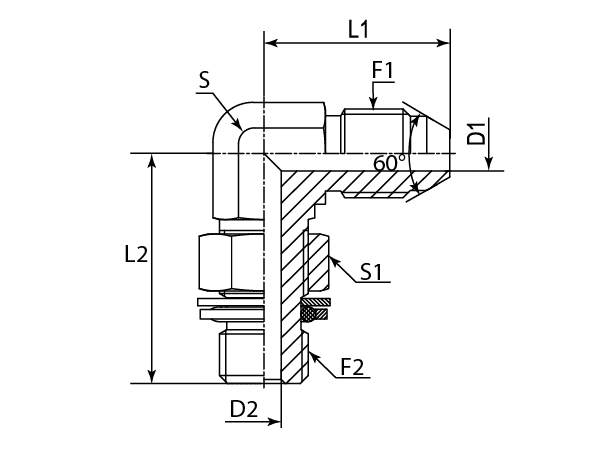

A drawing of DAJSM906Q hydraulic adaptor.

-	PART NUMBER	F1 (Thread)	F2 (Thread)	D1	D2	L1	L2	S	S1
-	-	METRIC	BSPP	mm	mm	mm	mm	mm	mm
-01	DAJSM906Q-1404	M14X1.5	1/4"-19	7.00	7.50	30.60	31.50	19	19
-01	DAJSM906Q-1406	M14X1.5	3/8"-19	7.00	9.90	30.60	36.50	19	22
-16	DAJSM906Q-1606	M16X1.5	3/8"-19	7.00	9.90	30.80	36.50	19	22
-18	DAJSM906Q-1806	M18X1.5	3/8"-19	8.50	9.90	31.00	36.50	19	22
-20	DAJSM906Q-2006	M20X1.5	3/8"-19	10.00	9.90	35.50	38.00	22	22
-22	DAJSM906Q-2208	M22X1.5	1/2"-14	12.00	12.30	35.50	44.00	22	27
-24	DAJSM906Q-2408	M24X1.5	1/2"-14	15.00	12.30	42.00	43.00	27	27
-30	DAJSM906Q-3012	M30X1.5	3/4"-14	18.50	15.50	46.00	49.00	33	36
-33	DAJSM906Q-3316	M33X1.5	1"-11	20.00	21.50	46.50	52.00	33	41
