DP9JCFF 90° Elbow JIC Female 74° Cone – One Piece

  • DCompanyDME
  • PProduct RangeHose Fitting
  • 9Fitting Structure90° Elbow
  • JCThread TypesJIC UNF
  • FConnection TypeFemale
  • FHose Fitting TypeOne Piece
  • DME&JDE Code: DP9JCFF
  • Product Type: Hose Fitting
  • Hose Fitting Type: One Piece
  • Thread Type: JIC UNF 74° Cone
  • Structure: 90° Elbow
  • Connection Type: Female
Technical Data of DP9JCFF
  • -04
  • -05
  • -06
  • -08
  • -10
  • -12
  • -16
  • -20
  • -24
  • -32

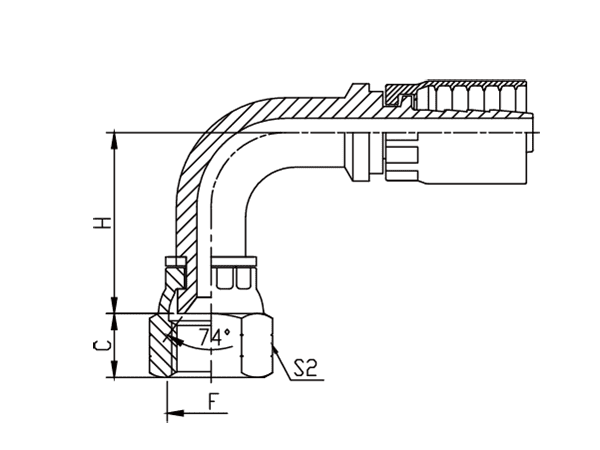

A drawing of DP9JCFF one piece hose fitting of DME&JDE.
- Part Number F (Thread) Ø C H S2
- - UNF Inch mm mm mm
-01 DP9JCFF-0404 7/16"-20 6.00 9.00 33.50 15
-05 DP9JCFF-0505 1/2"-20 8.00 9.50 37.00 17
-06 DP9JCFF-0606 9/16"-18 10.00 10.50 39.30 19
-08 DP9JCFF-0808 3/4"-16 12.00 11.00 47.00 24
-10 DP9JCFF-1010 7/8"-14 16.00 13.00 52.50 27
-12 DP9JCFF-1212 1-1/16"-12 20.00 15.00 63.50 32
-16 DP9JCFF-1616 1-5/16"-12 25.00 16.00 70.00 41
-20 DP9JCFF-2020 1-5/8"-12 32.00 17.00 82.50 50
-24 DP9JCFF-2424 1-7/8"-12 40.00 20.00 97.50 55
-32 DP9JCFF-3232 2-1/2"-12 50.00 23.50 118.80 75
