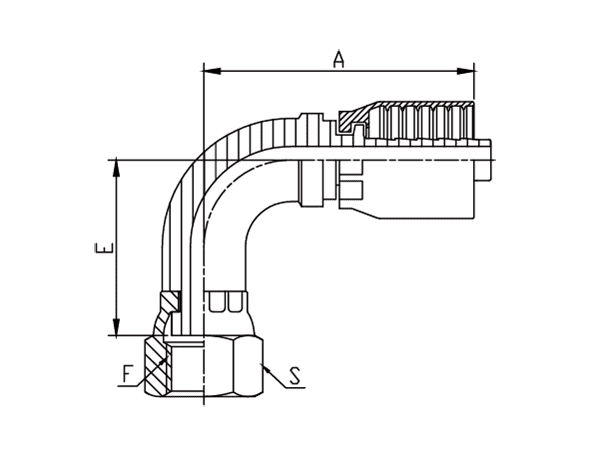

| - | PART NUMBER | F (Thread) | Ø | A | E | S |
|---|---|---|---|---|---|---|
| - | - | UNF | Inch | mm | mm | mm |
| -01 | DP9ORFF-0404 | 9/16"-18 | 1/4" | 45 | 21 | 11/16" |
| -01 | DP9ORFF-0406 | 9/16"-18 | 3/8" | 52 | 21 | 11/16" |
| -06 | DP9ORFF-0604 | 11/16"-16 | 1/4" | 49 | 23 | 13/16" |
| -06 | DP9ORFF-0605 | 11/16"-16 | 5/16" | 57 | 23 | 13/16" |
| -06 | DP9ORFF-0606 | 11/16"-16 | 3/8" | 56 | 23 | 13/16" |
| -06 | DP9ORFF-0608 | 11/16"-16 | 1/2" | 64 | 23 | 13/16" |
| -08 | DP9ORFF-0806 | 13/16"-16 | 3/8" | 58 | 29 | 15/16" |
| -08 | DP9ORFF-0808 | 13/16"-16 | 1/2" | 66 | 29 | 15/16" |
| -08 | DP9ORFF-0810 | 13/16"-16 | 5/8" | 71 | 29 | 15/16" |
| -10 | DP9ORFF-1008 | 1"-14 | 1/2" | 70 | 32 | 1-1/8" |
| -10 | DP9ORFF-1010 | 1"-14 | 5/8" | 75 | 32 | 1-1/8" |
| -10 | DP9ORFF-1012 | 1"-14 | 3/4" | 78 | 32 | 1-1/8" |
| -12 | DP9ORFF-1210 | 1-3/16"-12 | 5/8" | 89 | 48 | 1-3/8" |
| -12 | DP9ORFF-1212 | 1-3/16"-12 | 3/4" | 78 | 48 | 1-3/8" |
| -16 | DP9ORFF-1612 | 1-7/16"-12 | 3/4" | 103 | 56 | 1-5/8" |
| -16 | DP9ORFF-1616 | 1-7/16"-12 | 1" | 109 | 56 | 1-5/8" |
| -20 | DP9ORFF-2016 | 1-11/16"-12 | 1" | 118 | 65 | 1-7/8" |
| -20 | DP9ORFF-2020 | 1-11/16"-12 | 1-1/4" | 124 | 64 | 1-7/8" |
| -24 | DP9ORFF-2424 | 2"-12 | 1-1/2" | 140 | 68 | 2-1/4" |
