DP1JCMF Straight Connector JIC Male 74° Cone – One Piece

  • DCompanyDME
  • PProduct RangeHose Fitting
  • 1Fitting StructureStraight
  • JCThread TypesJIC UNF
  • MConnection TypeMale
  • FConnection TypeFemale
  • DME&JDE Code: DP1JCMF
  • Product Type: Hose Fitting
  • Hose Fitting Type: One Piece
  • Thread Type: UNF 74° Cone
  • Structure: Straight
  • Connection Type: Male
Technical Data of DP1JCMF
  • -04
  • -05
  • -06
  • -08
  • -10
  • -12
  • -16
  • -20
  • -24
  • -32

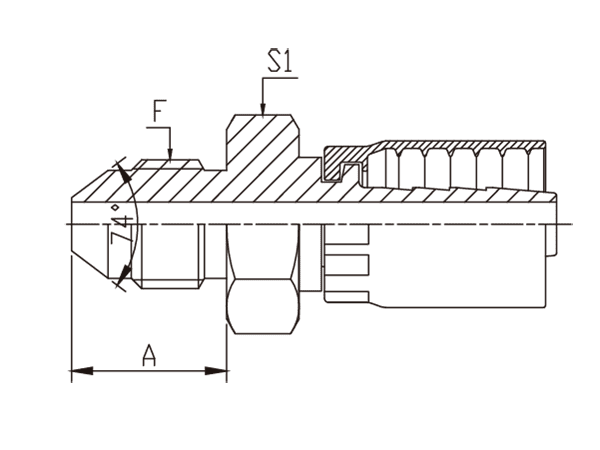

A drawing of DP1JCMF one piece hose fitting of DME&JDE.
- Part Number F (Thread) Ø A S1
- - UNF Inch mm mm
-01 DP1JCMF-0404 7/16"-20 6.00 51.00 14.28
-05 DP1JCMF-0505 1/2"-20 8.00 57.00 15.00
-06 DP1JCMF-0606 9/16"-18 10.00 60.00 17.00
-08 DP1JCMF-0808 3/4"-16 12.00 68.00 22.00
-10 DP1JCMF-1010 7/8"-14 16.00 77.00 24.00
-12 DP1JCMF-1212 1-1/16"-12 20.00 81.00 30.00
-16 DP1JCMF-1616 1-5/16"-12 25.00 92.00 36.00
-20 DP1JCMF-2020 1-5/8"-12 32.00 101.00 46.00
-24 DP1JCMF-2424 1-7/8"-12 40.00 119.00 50.00
-32 DP1JCMF-3232 2-1/2"-12 50.00 127.00 60.00
